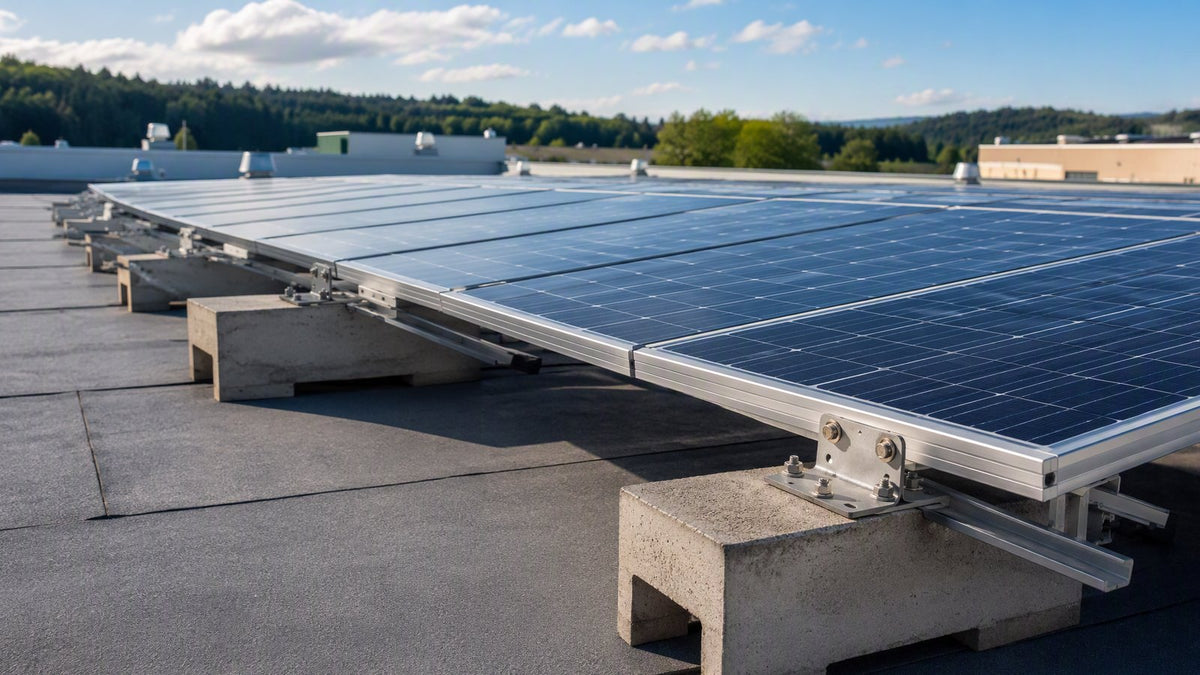

We've craned more than one 40,000-pound load of concrete block onto a warehouse roof, and the reason a building owner accepts that weight is simple: not one roof penetration. Ballasted racking holds a solar array down with gravity instead of lag bolts, which makes it the default mounting method on flat commercial roofs and the fastest way to put modules on a membrane roof without voiding its warranty. But gravity is unforgiving of sloppy math. Undersize the ballast and the first 90 mph gust turns your array into a sail; oversize it and you overload a roof structure that was never designed for the extra dead load.

This guide covers the block types that actually get used, how ballast weight is sized by wind speed and roof zone, how to check the roof structure before a single pallet goes up, and the installation practices that separate a 25-year array from an insurance claim. The numbers below are real reference values — block weights, psf loads, zone multipliers — but your racking manufacturer's ballast tables and a structural engineer's stamp always govern the final design.

A ballasted racking system resists three wind forces with dead weight and friction: uplift (the array trying to fly), overturning (the array trying to tip), and sliding (the array trying to skate across the membrane). The racking chassis distributes module loads into ballast trays or pans, concrete blocks sit in those trays, and the whole assembly's weight — typically 5 to 12 pounds per square foot of array footprint — keeps everything planted.

The concept is older than solar. Roof-mounted ballast has held down everything from billboard frames to HVAC curb adapters for decades, and the solar industry borrowed the physics wholesale: give the wind nothing to grab, spread the load so the deck never sees a point it can't carry, and let friction do the quiet work. What the solar industry added was scale and discipline — hundreds of chassis on one roof, each with a scheduled block count, engineered as a system instead of guessed as a pile of weight. That discipline is the entire game. A ballasted array is one of the few structures in construction whose safety margin you can count with your eyes on a roof walk, and the flip side is just as true: every missing block is visible, and every missing block matters.

What ballast does not do: attach to the building. That's the point and also the risk. A mechanically attached array can be engineered to near-certainty; a ballasted array relies on weight, friction coefficients, and wind-tunnel-tested racking geometry. Which is why every reputable ballasted racking line — IronRidge BX, Unirac RM/RM5, Sinclair Sky Rack, DPW, PanelClaw — publishes ballast schedules from wind tunnel testing, and why "just add more blocks" is not an engineering method.

The industry standardized on ordinary concrete masonry units because they're cheap, dense, dimensionally consistent, and available at every block yard in the country. Here are the blocks you'll actually spec, with honest weights:

Concrete weighs about 145–150 lb per cubic foot, and you can sanity-check any block against that: a solid 4×8×16 cap block is roughly 0.30 ft³, which lands at 43 lb theoretical — the actual 26–33 lb reflects the beveled top and lightweight aggregate mixes most yards pour. Weigh ten random blocks off every delivered pallet with a hanging scale. I started doing that after a "30-pound" block order came in at 24 pounds of lightweight aggregate — the ballast schedule said one thing, the roof had another, and the fix was 400 extra blocks and a change order nobody enjoyed.

Buy solid, normal-weight blocks, and buy them locally. Concrete block costs more to freight than to manufacture; a 40,000 lb ballast order is a local block yard's bread and butter, and delivered pricing within 50 miles beats any national supplier. What we supply is the racking that holds them — the Sinclair Sky Rack 2.0 ballasted kits, 12-panel and 20-panel IronRidge hardware kits, and the rest of our racking and mounting and roof mount kits lines.

Ballast sizing comes out of ASCE 7 wind load calculations filtered through the racking manufacturer's wind tunnel data. Four inputs decide the block count: design wind speed, roof height and exposure category, array tilt, and where each chassis sits in the roof's pressure zones.

Fuel System Design

Height and exposure matter as much as the map speed. A 120 mph rating on a two-story suburban warehouse (Exposure B) may need less ballast than a 110 mph rating on a twelve-story open-terrain roof (Exposure C/D). Run the manufacturer's online ballast tool with the real address and building geometry, print the schedule, and put it in the permit package.

Every added degree of tilt gains production and loses it right back to wider row spacing, more wind, and more block. At commercial electricity rates the 10° layout usually wins the spreadsheet — it fits 15–25% more modules on the same roof than 15°, and the extra capacity outearns the per-module tilt penalty. Run both layouts before committing.

Ballast goes on the roof only after a structural engineer says the roof can carry it. The math that matters:

Typical Maintenance Schedule

Three structural traps we see repeatedly:

• Average psf lies. The array averages 7 psf, but a corner tray with ten 30-pound blocks concentrates 300 pounds into four square feet — 75 psf at the chassis feet. The engineer checks both distributed and concentrated loads against the deck and the joists.
• Steel deck span tables. Metal deck on bar joists carries distributed load happily and point loads grumpily. Chassis spacing must land loads over joists or the engineer adds distribution plates.
• Ponding interaction. Added dead load deflects the deck, deflection ponds water, water adds 5.2 psf per inch, and the cycle feeds itself. If the roof already ponds, fix drainage before ballast, not after.

Get the structural letter early. We've watched a 400 kW project die in week six because nobody pulled the roof drawings until the racking was on the dock. The letter costs $1,500–3,500 and two weeks; reordering a redesign costs six figures and a season.

Ballast wins on sound structure in moderate wind zones with a membrane worth protecting. Attached wins on lightweight decks, steep wind exposures, and seismic sites. The hybrid — ballasted field with attached perimeter — is increasingly the engineer's answer on marginal roofs, buying attachment-level restraint at a fraction of the penetrations. For ground sites where roofs aren't in play at all, skip the block entirely: a ground mount like the BrightMount ground mount or the Sinclair Sky Rack puts the array on posts and lets the soil carry the loads.

The block itself is a commodity, but the quality-control failure modes are not. Three specs belong in every purchase order for solar ballast block:

• Solid, normal-weight units. Specify solid cap blocks (not hollow CMUs in trays designed for solids) and normal-weight aggregate, 145+ lb/ft³ concrete. Lightweight aggregate saves the yard money and costs you ballast.
• Dimensional consistency. Trays are sized for nominal 4 × 8 × 16 blocks. Oversize pours jam the tray; undersize blocks rattle and walk under vibration. Reject pallets with visible size variance.
• Compressive strength. ASTM C90 calls for 1,900 psi minimum on the net area for loadbearing CMU — non-loadbearing cap blocks run lower, but crumbling edges on the pallet mean a weak mix that will spall under freeze-thaw cycles on the roof.

Logistics math for the bid: a standard pallet of 4 × 8 × 16 cap blocks carries 90–120 blocks and weighs 2,700–3,600 lb. A 100 kW commercial array needing 1,400 blocks is 12–16 pallets and two flatbed loads. Price the crane day into the bid line, not as an allowance — we've watched more margin evaporate on "we forgot the telehandler" than on any racking component. And order 5% over the schedule: blocks chip, corners break on the hoist, and a short pallet discovered on day three of a five-day install idles a four-man crew at commercial rates.

A ballasted array is not install-and-forget. Gravity holds, but everything around the blocks moves: membranes age, blocks walk a quarter-inch a year under thermal cycling, and drains migrate under new debris patterns. The annual inspection checklist we hand to every commercial customer:

1. Walk the zone map against the roof. Every tray still carries its scheduled block count — blocks get "borrowed" by maintenance crews for doorstops more often than you'd believe. Count corner trays first.
2. Check block condition. Spalled, cracked, or crumbling blocks get replaced. A block that lost 20% of its mass to freeze-thaw no longer meets the schedule.
3. Inspect protection mats. Any tray sitting directly on membrane because a mat slipped gets re-matted that day. Membrane abrasion under a ballast tray is a leak with a 300-pound weight pressing on it.
4. Verify drainage paths. Trays and rows must not dam water toward drains. Ponding against a chassis adds weight the structure never budgeted and accelerates membrane aging.
5. Look for array migration. Chalk or paint-mark a few reference chassis corners at install. More than an inch of drift means the friction assumptions are being tested — find out why before wind does.
6. Re-torque a sample of module clamps. Thermal cycling loosens hardware; a 10% sample with a calibrated wrench tells you whether the whole array needs a pass.

After any named storm or recorded gust above roughly 70% of the design wind speed, repeat the walk within a week. Arrays that survive a storm slightly displaced rarely announce it — the next storm finds the weakness the first one created.

Ballasted commercial arrays sit at the intersection of three code families, and the permit package has to answer all of them before the crane books:

• Structural — IBC and ASCE 7. The engineer's letter covers dead load, wind uplift and sliding per the racking system's wind tunnel data, roof-zone ballast schedule, and seismic restraint where Chapter 13 applies. Most AHJs want the letter wet-stamped and less than a year old.
• Electrical — NEC 690, 705, 250. Array wiring methods (690.31), grounding and bonding of the racking (690.43, 250), rapid shutdown (690.12), and the interconnection method (705.11 supply-side or 705.12 load-side). Ballasted racking bonds like any other metallic rack — listed bonding hardware between modules and rails, an EGC back to the inverter, and no assumptions that gravity equals grounding. A chassis resting on a membrane by weight alone is not bonded — the listed bonding washer or lug biting through the anodizing is what makes it a ground fault's exit path instead of an energized frame waiting for a ladder.
• Fire — IFC and local amendments. Fire-code access pathways are where ballasted layouts most often get redesigned: typical requirements are 3-foot clear pathways from eave to ridge equivalents, 3-foot clear around roof hatches and skylights, and smoke-vent clearances that can run 4–8 feet wide depending on the jurisdiction. Ballasted arrays are easy to re-space at the layout stage and painful to re-space after the blocks are set, so overlay the fire pathways on the zone map before anything else.

Two paperwork habits that pay for themselves. First, keep the roof membrane manufacturer's written approval of your protection mat in the permit set — it defuses the warranty question before the building owner's roofer raises it. Second, photograph every tray with its block count visible at final walk, and deliver the photo set with the closeout documents. If a storm ever tests the array, that set is the difference between a warranty conversation and a liability conversation.

Budget honestly and the ballasted option usually wins the commercial flat-roof comparison on installed cost even after the concrete. The line items, per typical 100 kW commercial array:

• Blocks: 1,200–1,600 cap blocks at $1.50–2.50 each delivered locally — call it $2,000–4,000.
• Hoisting: a crane or telehandler day at $1,500–3,000 depending on market and reach.
• Protection mats and accessories: a few hundred dollars of material that protects a five-figure membrane.
• Structural engineering: $1,500–3,500 for the stamped letter.

Against that, the attached alternative prices dozens to hundreds of penetrations: flashing kits, sealant, layout labor locating structure, the roofer's warranty rider, and the long-tail leak liability that never fully leaves the building owner's spreadsheet. On labor alone, experienced crews set ballasted chassis 20–30% faster than attached rows because there is no attachment layout and no flashing detail — the roof walks in at chalk lines and walks out with an array. The trade shows up only in weight: freight, hoisting, and the structural margin the building must have. When the structure says yes, ballast is usually the cheaper, faster, and kinder-to-the-roof answer. When it says no, no block discount fixes physics.

Ballasted solar is a physics contract: the roof carries weight it was checked for, the blocks hold down what the wind schedule says they must, and the membrane survives because somebody laid the right mats. Honor all three terms and a ballasted array is the fastest, cleanest commercial install in the trade — no penetrations, no flashing details, no warranty fights. Break one and gravity collects. Pull the structural letter, run the manufacturer's ballast tool for the real address, weigh the blocks off the pallet, and photograph every tray before you leave the roof. The racking, clamps, mats, and kits are in our solar mounting systems and mounting parts collections at wholesale — the concrete, buy from the yard down the road.
