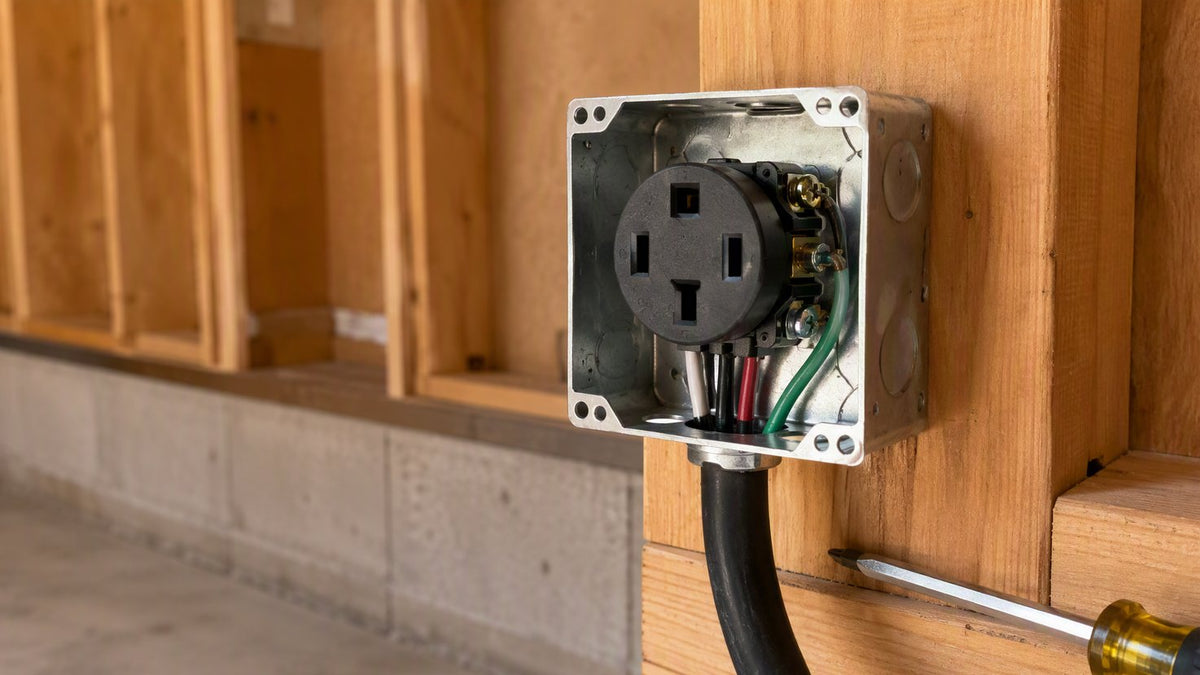

How to Wire a 240V Outlet: The Complete Safety Guide

Last Updated: March 2026 • Reviewed for NEC 2026 Compliance

Explore the Electrical Hub → breaker, conduit, and wiring guides plus free calculators in one place.

Chart 240V Wiring

Chart 240V Wiring

Wiring a 240V outlet is a critical task for installing high-draw appliances like EV chargers, electric dryers, and ranges. This guide provides a step-by-step, code-compliant process for professional installers and advanced homeowners to ensure a safe and reliable installation. Following these instructions will help you pass inspections, prevent catastrophic failures, and power modern equipment correctly.

Understanding the Fundamentals of 240V Wiring

Shop this guide

Generac L2 EVSE 40 - PUP2-U-1-5-N-GC2$749View

Generac L2 EVSE 48A - PUP2-U-1-6-C-GC2$799View

Smappee EV Wall Smartup Kit EVWNA-SMARTUP-KIT$231.38View

Before touching a wire, it is crucial to understand the core differences between 120V and 240V circuits. A 240V circuit is not a simple voltage upgrade — it is a dedicated, high-power line engineered specifically for appliances that would instantly trip a standard breaker: EV chargers, clothes dryers, water heaters, and electric ranges.

The key difference lies in the main electrical panel. A standard 120V circuit draws power from a single hot bus bar via a single-pole breaker. A 240V circuit uses a double-pole breaker that simultaneously connects to both hot bus bars, doubling the voltage. Consequently, the entire circuit — breaker, wire gauge, and the receptacle itself — must be specified and installed to handle the higher load and comply with the National Electrical Code (NEC).

Not all 240V outlets are interchangeable. The appliance's plug dictates the specific receptacle required, based on its amperage rating and whether it has internal 120V components (timers, lights, control boards). The National Electrical Manufacturers Association (NEMA) standardizes these configurations to prevent mismatched, dangerous connections.

Pro Tip for Installers: Always verify the appliance's nameplate or installation manual before sourcing any materials. This label specifies the exact amperage (e.g., 30A, 50A) and NEMA plug type. Guessing is the fastest route to a failed inspection and a potential fire hazard.

Match the face of your outlet to this chart before you buy wire, a breaker, or a plug. The first digit tells you the wiring family: 6-series is hot-hot-ground (no neutral), 10-series is the legacy hot-hot-neutral found in pre-1996 homes, and 14-series is the modern hot-hot-neutral-ground required by the NEC since 1996.

The NEMA 14-50 has become the default receptacle for Level 2 home EV charging: it delivers 240V at up to 50 amps (40 amps continuous after the 125% rule — about 9.6 kW, or 30–38 miles of range per hour). Wire it with 6 AWG copper on a 50 A two-pole breaker, and always install a commercial-grade receptacle — cheap residential-grade 14-50 outlets are the single most common failure point in EV circuits. Choosing between a plug-in 14-50 setup and a hardwired wall unit comes down to charge speed, duty cycle, and local code; our Level 2 EV Charger Buyer's Guide walks through both paths with real equipment picks.

A successful 240V installation is determined by meticulous preparation. Having the correct, high-quality tools and NEC-compliant materials ready before starting is non-negotiable — both for safety and to avoid mid-project delays that cost time and money.

• Your primary safety tool. Confirm the circuit is completely de-energized before any physical contact. Never trust a breaker label alone. >

• For final verification — confirms 120V from each hot to neutral/ground and 240V across the two hot conductors. >

• Must be rated for 10-gauge or 8-gauge NM-B cable to produce clean strips without nicking the copper conductor. >

• Essential for cutting heavy-gauge cable and forming tight terminal hooks on conductors. >

• Flathead, Phillips, and square-drive tips for terminal screws and breaker lugs. >

• Indispensable for pulling new cable through finished walls and conduit runs. >

• For securing NM-B at required intervals per NEC. >

• For boring through studs and joists along the cable route.

For Procurement & Installers: Never substitute materials to reduce cost. The wrong breaker size or wire gauge will result in a failed inspection requiring costly rework — and poses a serious fire risk. Base your Bill of Materials on the appliance's specified amperage rating, not assumptions.

The appliance's amperage rating (from the nameplate) is the single governing factor for both breaker and wire selection. This chart covers the most common 240V residential and light commercial circuits.

With materials sourced, the next phase involves site preparation. Before drilling a single hole, map a complete cable route from the panel to the outlet location — accounting for wall studs, ceiling joists, fire blocks, and any conduit sections in exposed areas. This foresight minimizes drywall damage and simplifies the cable pull significantly.

Working inside a live electrical panel can be fatal. This procedure must be followed exactly, every single time.

• >Secure the cable with a staple within

• of any non-metallic electrical box. >Along the run, staple to studs or joists at least every

• . >When drilling through studs, always drill through the

• — this protects the wire from future drywall screws. >Use a dedicated

• at the panel knockout entry to prevent abrasion at the enclosure edge.

With the cable run confirmed and the panel verified dead, precision becomes paramount. Loose connections are a primary cause of electrical fires — never skip the physical tug test on every terminal. This process is divided into two stages: wiring the receptacle first, then terminating at the breaker panel.

At the outlet box, strip the outer vinyl sheathing to expose 6–8 inches of the inner wires. Using wire strippers rated for your gauge, remove approximately 3/4 inch of insulation from the black, red, and white conductors. The bare copper ground wire requires no stripping. Bend a small clockwise hook at the end of each stripped conductor using Lineman's pliers.

Pro Tip for Installers: After tightening each terminal screw, give every wire a firm, sharp tug. Any movement indicates an insecure connection that must be re-tightened immediately. This simple mechanical check is the difference between a safe installation and a callback for a melted outlet.

1. Connect the

1. to one terminal screw on the new double-pole breaker. >Connect the

1. to the second terminal screw on the same breaker. >Land the

1. on an open slot on the

1. (the silver bar carrying all other white wires in the panel). >Land the

1. on an open slot on the

1. (bonded to the panel enclosure). >Perform a final torque check on all four connections and organize the new wiring neatly inside the panel. >Replace the panel cover carefully — confirm no wires are pinched by the cover edge.

The physical installation is complete — but the job is not finished. Gently fold the wires into the electrical box using accordion folds to avoid straining the terminal connections. Secure the outlet to the box with its mounting screws, confirm it sits flush and level, and attach the cover plate.

At the panel, perform a final visual sweep for tools or debris inside the enclosure. Reinstall the cover. Restore power by flipping the main breaker to ON, then flip the new double-pole breaker to ON. Return to the outlet with your multimeter set to AC voltage (V~) and perform all five required readings.

Everything above assumes a normal in-house run. Once the outlet lives in a detached garage, shop, or RV pad at the far end of the property, voltage drop becomes the sizing constraint instead of ampacity. These distances are computed with the standard formula L = (7.2V × circular mils) ÷ (2 × 12.9 × amps) — 7.2V being a 3% drop on 240V, and 12.9 the copper constant. Stay under these one-way distances, or upsize the wire.

Field note: We've roughed in more NEMA 14-50s in detached shops than we can count, and the failure mode is always the same — the owner sized for 50 amps and forgot the 180-foot driveway. An EV charger pulling 40A continuous will sag a marginal run all night long. When the tape measure says you're anywhere near the table above, spend the extra hundred dollars on the next wire size. It's the cheapest insurance on the job.

With the proliferation of EV chargers and high-draw appliances, the demand for 240V circuit installations has grown significantly. The average professional cost for a 240V outlet installation is approximately $220–$345, with a typical range of $175 to $400 depending on circuit complexity, panel accessibility, run length, and local permit requirements.

Field note — torque is not optional: Every breaker and receptacle terminal carries a printed torque value (typically in the 20–50 in-lb range for residential gear), and NEC 110.14(D) requires tightening to it with a calibrated tool. We keep a torque screwdriver on every panel job because loose terminations are the number-one cause of cooked receptacles we get called out to replace — the connection arcs, heat builds, and the outlet fails months after the install looked "fine." Snug by feel is not a spec.
