1000W Solar Panel Size in Inches: Exact Dimensions

Shopping for a "1000-watt solar panel" puts you in the middle of the most inflated product category in the solar business — so let's start with what's real. Whether you're speccing an RV roof, an off-grid cabin, or a starter array for the house, you need to know two things: how big solar panels actually are in inches, and how many of them add up to a true 1,000 watts. The answers decide your roof layout, your racking, and whether the plan fits the space you have.

This guide gives you the real numbers: actual dimensions of every panel class from 400W to 700W+, the configurations that genuinely make 1,000 watts, the space and clearance math for your install, and the spec-sticker check that exposes inflated marketplace listings before they cost you money. Everything below comes from the same spec sheets and warehouse stock we sell from at PES Supply.

The Truth About "1,000-Watt Solar Panels" in 2026

Shop this guide

Silfab Solar SIL-410 HC+$149.99View

SolarEdge: SE7600H US000BNU4$2,827.72View

Qcells Q.PEAK DUO 590W Solar Panel$296.69View

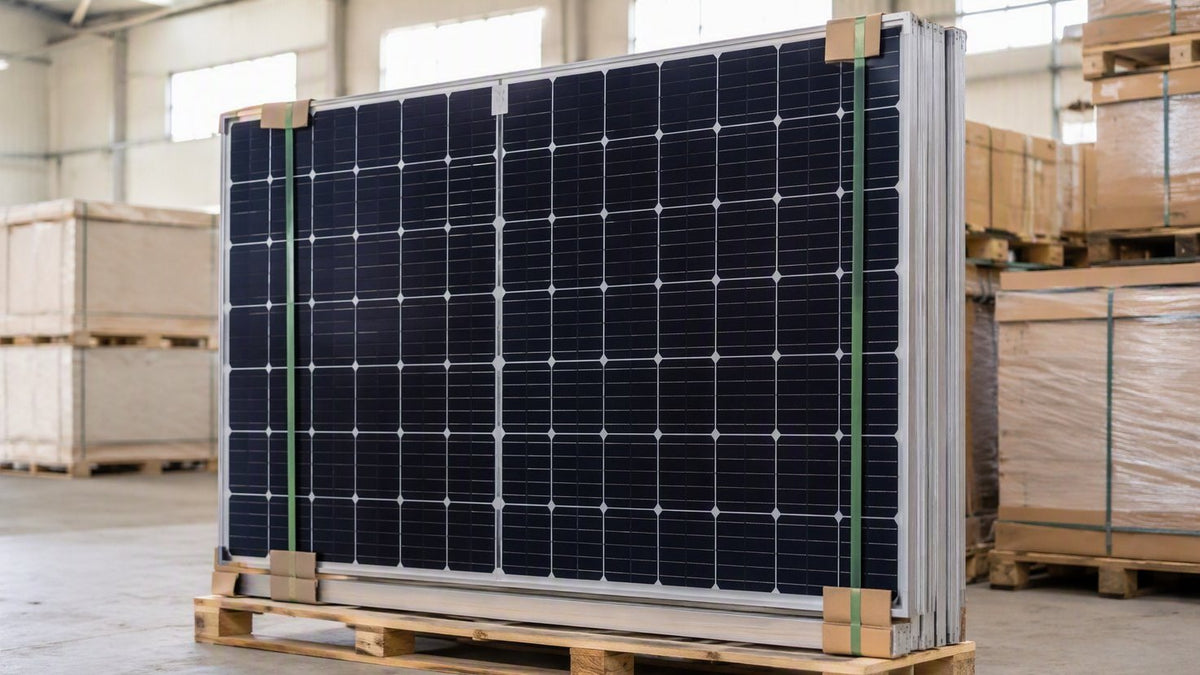

Let's clear up the biggest misconception behind this search: a single 1,000-watt residential solar panel does not exist — not from any Tier 1 manufacturer, not in 2026. The largest real single modules top out around 700–760 watts, and those are oversized commercial-format panels that measure nearly 8 feet long, weigh 80+ pounds, and are engineered for ground-mount and warehouse rooftops, not residential installs. Anything advertised as a "1000W solar panel" is one of three things: a kit or bundle of several smaller panels totaling 1,000W, a folding or flexible array marketed to RV and camping buyers, or — too often — a marketplace listing with inflated specs.

What most people searching "1000 watt solar panel" actually need is a 1 kW array, and that's easy to build from real panels: 2 × 500W, 3 × 335W, 4 × 250W, or 5 × 200W. A 1 kW array produces roughly 4–6 kWh per day depending on your sun hours — enough to meaningfully offset a home's usage, fully power an RV or off-grid cabin's essentials, or serve as a serious battery-charging setup.

These are the actual size classes shipping today — the closest you can get to a "1000W panel" with a single module:

The footprint math for a true 1 kW array: two 500W-class panels need about 56–60 sq ft of mounting area; three 335W panels need about 54–58 sq ft; five 200W panels (common for RV and ground builds) need about 55–60 sq ft. Whichever combination you choose, plan on roughly 55–60 square feet plus setback clearances — fire code typically requires 18–36 inches of clear access at ridges and edges on a roof. For exact module dimensions, check the spec sheets in our solar panel catalog, and for the oversized classes see our commercial solar panels collection.

Field note from the warehouse: We've unloaded enough 210mm-format panels to warn you properly — a 700W module is a two-person, no-wind-day lift, and the "residential" listings selling single 700W+ panels to homeowners skip that part. For a roof, 440–520W modules are the sweet spot: one person can position them, and the racking math is standard.

Dimensions tell you where it fits; sun hours tell you what it earns. A 1 kW array produces its rating × your peak sun hours per day, before losses. The monthly column uses an 80% real-world factor for heat, wiring, and inverter losses:

Panel wattage is measured under Standard Test Conditions: 1,000 W/m² of irradiance, 25°C cell temperature, air mass 1.5. It's a lab number — useful for comparing modules, optimistic for planning production. Two things follow from it: a panel only makes its rating under perfect, cool, noon-sun conditions, and the rating is directly tied to how much silicon is inside the frame. More watts means more cell area, and more cell area means a bigger panel. That's the whole wattage-size story in one paragraph.

Manufacturers get more watts per panel three ways: pack in more cells, grow the cells themselves (the industry has moved from 156mm wafers to 182mm and 210mm), or raise cell efficiency so the same area converts more sunlight. Every high-wattage panel on the market is some combination of the three — and all three push dimensions up, which is why wattage classes map so predictably to size classes in the tables below.

Here's where a 1 kW target sits in the real product landscape — from the 100W panels we sell for RV roofs to the 700W commercial formats that need two people and a plan to move:

Since no true 1000W single panel exists, the practical question is how big the largest real modules are — because two of them is how you actually get to 1,000 watts. These measurements include the frame, which adds roughly an inch to each side beyond the active cell area.

The following table shows typical dimensions for high-wattage panels from major manufacturers. These measurements include the aluminum frame, which adds approximately 1-2 inches to each dimension beyond the active cell area.

If a true 1000W single panel existed using current technology, what would it look like? Based on typical power density of modern high-efficiency monocrystalline panels (approximately 200-220 watts per square meter or 18-20 watts per square foot), a 1000W panel would require:

Such a panel would present significant handling, shipping, and installation challenges, which is why manufacturers instead produce panels in the 500-700W range and expect installers to combine multiple units for higher capacity systems.

Getting to a real 1 kW means combining panels — and the combination you pick changes your footprint, your wiring, and your install day. Here are the configurations we see ordered most, with honest space numbers:

The same 1 kW can wear very different footprints depending on orientation and grouping. Portrait stacks run long and narrow; landscape rows run wide and low. Match the layout to the roof plane or ground space you actually have:

Cell technology is the other lever on panel size. Higher-efficiency chemistry puts more watts in the same frame — or the same watts in a smaller frame. Here's how the three families compare, with the caveat that only one of them matters for new installs in 2026.

Monocrystalline is the default today — single-crystal silicon, black cells, and the highest power density you can buy. In 2026 the volume standard is N-type TOPCon, with HJT and back-contact at the premium end; the older P-type PERC lines are end-of-life and only worth buying at liquidation pricing. For equivalent wattage, mono needs 15–25% less roof than the older technologies.

Polycrystalline — the blue, flake-patterned panels — is effectively discontinued for new work. You'll meet it in older systems and surplus lots. It's 15–25% larger than mono for the same wattage, which is exactly why the market moved on: roof space is the scarce resource, not silicon.

Thin-film deposits photovoltaic material in layers on glass or flexible substrates. It's light and bends, which makes it genuinely useful for curved RV roofs, boats, and building-integrated glass — and genuinely wrong for a space-limited residential roof, because it needs 40–80% more area per watt than mono.

The following table compares approximate panel dimensions needed to achieve 500W output (half of a 1000W system) across different technologies:

Read a panel's size off its label: cell count times cell size, plus frame. Once you know the standard cell formats, you can estimate any module's dimensions within an inch or two before the spec sheet loads — a useful trick when you're screening listings.

The industry arranges cells in standardized grids. Older residential panels were 60 full cells; modern high-wattage modules use half-cut cells, so a "120-cell" panel is 60 full cells sliced in half — same silicon, lower resistive losses, better shade behavior. The formats you'll actually see in 2026:

Field note from the quoting desk: Customers send us marketplace listings weekly asking why our "400W panel" costs more than a "1000W panel" they found online. Nine times out of ten the listing is a folding 12V camping array with fantasy math on the sticker. Check Voc × Isc against the claimed watts — if the numbers don't multiply to the rating, walk away.

A 1 kW install lives or dies on clearances, not panel dimensions. Fire setbacks, ridge pathways, vent clearances, and the airflow gap under the array routinely eat 30–40% of a roof plane that looked "big enough" on paper. Do this math before you order, not on install day.

Total footprint is panel area plus everything the code and the hardware demand around it. Building codes and racking manufacturers both publish clearance requirements — the stricter one wins.

Efficiency is the spec that shrinks your roof footprint. Every point of module efficiency is roughly 5% less area for the same wattage — which is why a 22% TOPCon panel and a 15% surplus panel differ by a third of a roof plane at 1 kW.

Efficiency is the share of sunlight hitting the glass that comes out as electricity. The jump from 18% to 22% sounds academic until you convert it to square feet:

Ratings are measured at 25°C cell temperature, and roofs are not laboratories. On a hot afternoon cell temperatures hit 60–65°C, and every degree above 25 costs output per the panel's temperature coefficient. This is normal physics, not a defect — but it's why production estimates that assume nameplate output always disappoint.

A 1 kW system is small enough to fit almost anywhere — which tempts people to skip the layout work and regret it. Ten minutes with a tape measure and these two tables beats re-ordering racking.

Panels can be mounted in either portrait (vertical) or landscape (horizontal) orientation, affecting how they fit your available space and how mounting rails are configured.

Bigger panels are heavier panels, and weight matters twice: getting them up the ladder, and what the roof holds afterward. The good news at 1 kW — no configuration exceeds about 160 lbs of modules, roughly 2.5 lbs per square foot with racking, well inside what any code-built roof carries.

Choosing between two big panels and five small ones isn't a spec-sheet decision — it's a your-roof, your-budget, your-back decision. Match the configuration to the priority that actually constrains you:

Measure twice, order once. This is the same sequence our engineering team runs when customers send roof dimensions with a quote request:

Field note from the roof: The number everyone forgets is the ridge pathway. We've watched homeowners design a perfect edge-to-edge layout, then lose a whole panel column to the 36-inch fire setback at inspection. Mark the setbacks with chalk before you fall in love with a layout — chalk erases, change orders don't.

Recommended Products

Silfab Solar SIL-410 HC+

$5.00

SEG Solar SEG-550-BMA-TB

$180.00

SolarEdge: SE7600H US000BNU4

$2,400.00

SolarEdge: SE5000H US000BEU4

$180.00

Qcells Q.PEAK DUO 590W Solar Panel - XL-G11S

$296.69

Shop this guide

Silfab Solar SIL-410 HC+$149.99View

SolarEdge: SE7600H US000BNU4$2,827.72View

Qcells Q.PEAK DUO 590W Solar Panel$296.69View

Frequently Asked Questions

The "1000W solar panel" search ends with a layout, not a single product. Check the spec sticker before believing any listing — watts equal volts times amps, and a residential-size panel cannot physically hold 1,000W of silicon. Then pick the configuration that fits your measured space, and buy modules with published datasheets from manufacturers that will still answer the phone in year fifteen.

If you want the short answer for a house or shop roof: two 500W-class panels, about 82" × 45" each, roughly 55–60 square feet with clearances. For an RV or cabin with chopped-up space: five 200W modules arranged around the obstructions. Either way you now have the dimensions to verify the fit yourself — and our quote team will check your layout for free if you send the measurements.
