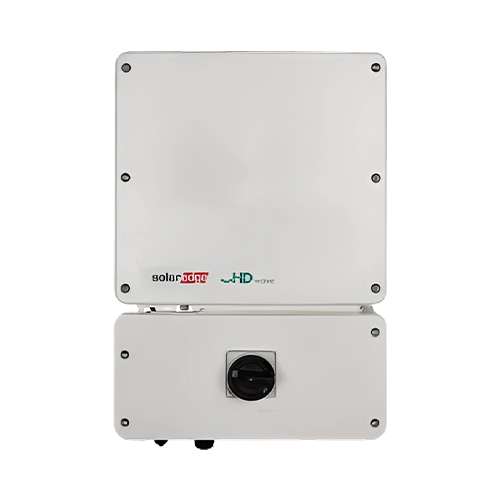

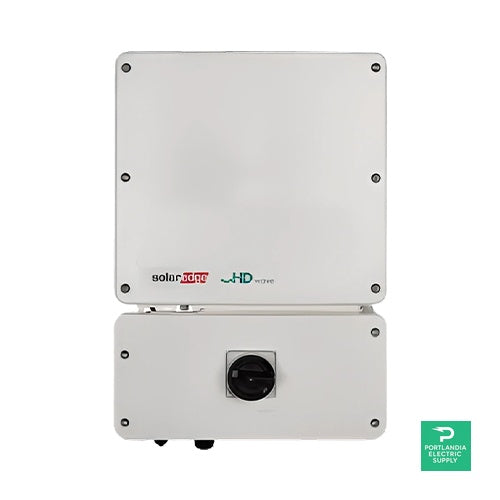

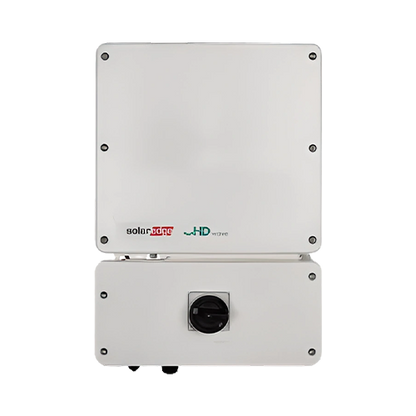

SolarEdge 7.6kW Single Phase Energy Hub with 10kW Battery – SE7600H-USSNBBL14
SolarEdge 7.6kW Single Phase Energy Hub with 10kW Battery – SE7600H-USSNBBL14
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0805
- MPN
- SE7600H-USSNBBL14
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for SolarEdge. 50,000+ SKUs from 169 authorized brands.
SolarEdge SE7600H-USSNBBL14 7.6kW Single Phase Energy Hub with 10kW Battery — Smart Energy Storage for the Future
The SolarEdge SE7600H-USSNBBL14 7.6kW Single Phase Energy Hub with 10kW Battery is a powerful hybrid inverter that integrates solar energy generation, storage, and smart energy management in a single compact solution. Designed for U.S. residential systems, this SolarEdge SE7600H-USSNBBL14 7.6kW Single Phase Energy Hub with 10kW Battery delivers seamless backup power, real-time monitoring, and enhanced efficiency, making it a cornerstone of modern home energy systems.
Product Features
Hybrid Integration
Combines solar PV and battery storage in one inverter for simplified installation, reduced costs, and optimised power management.
Enhanced Backup Power
The SolarEdge SE7600H-USSNBBL14 7.6kW Single Phase Energy Hub with 10kW Battery provides whole-home or partial backup during outages when paired with the SolarEdge Energy Bank, ensuring uninterrupted operation of critical loads.
High Efficiency Conversion
Achieves up to 99% inverter efficiency and minimal energy loss through DC-coupled architecture, maximising solar utilisation and stored energy capacity.
Smart Energy Control
Built-in monitoring and control via the SolarEdge app allow users to track energy production, battery status, and load consumption in real-time.
Flexible Compatibility
Compatible with both SolarEdge optimisers and Energy Bank batteries, supporting future scalability and system upgrades.
How It Works
The SolarEdge SE7600H-USSNBBL14 7.6kW Single Phase Energy Hub with 10kW Battery intelligently manages power from solar panels, the battery, and the grid. During the day, it prioritises self-consumption while charging the battery. At night or during grid failure, stored energy powers essential circuits via the integrated backup interface.
Specifications
| Model | SE7600H-USSNBBL14 |
| AC Output Power | 7.6 kW |
| Battery Support | Up to 10 kW SolarEdge Energy Bank |
| DC Input Voltage Range | 380–480 V DC |
| Peak Efficiency | 99.0 % |
| CEC Weighted Efficiency | 98.0 % |
| Max Input Current | 20 A per string |
| Phase | Single Phase |
| Backup Power Output | 7.6 kW continuous |
| Communication | Ethernet, RS485, Cellular, Wi-Fi (optional) |
| Operating Temperature Range | –13 °F to +140 °F (–25 °C to +60 °C) |
| Enclosure Rating | NEMA 4X (Outdoor/Indoor) |
| Dimensions (L × W × H) | 21.3 × 14.6 × 7.5 in (540 × 370 × 190 mm) |
| Weight | ≈ 33 lb (15 kg) |
| Certifications | UL 1741 SA, IEEE 1547, Rule 21, UL 9540 (Battery System) |
| Warranty | 12 Years (Extendable to 20 Years) |
| Manufacturer | SolarEdge Technologies Inc. |
Specifications verified from the official SolarEdge SE7600H-USSNBBL14 Datasheet.
