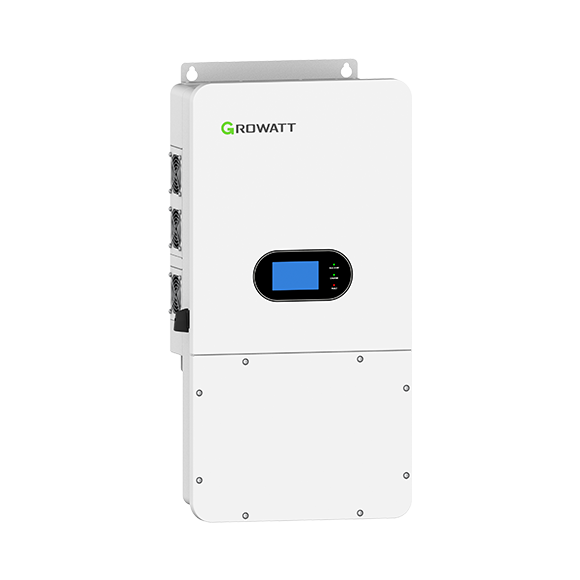

• Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)
1 1

Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)

Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)

Ships Direct from Manufacturer's US Warehouse — typically 5–10 business days
SKU: SKSL50.0000902Brand: Growatt
$2,851.00 USD
$3,133.00 USD $2,851.00 USD
-9% Sale Sold out
Shipping calculated at checkout.
Ships Direct from Manufacturer's US Warehouse — 5–10 business days
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

SKU
SKSL50.0000902
OEM Authorized Full Warranty 5–10 business days

Complete the job

Verified compatible gear for this system

Growatt ALP 5.0L-E2-US 5kWh LV LFP Battery Module (48V)
Compatible Growatt ALP 5.0L-E2-US 5kWh LV LFP Battery Module (48V)
$1,477.00
Growatt ALP 5.0L Battery Base – Floor Stand for ALP LV Battery Stacks
Compatible Growatt ALP 5.0L Battery Base – Floor Stand for ALP LV Battery Stacks
$124.00
Growatt SM-US Smart Meter with 2 CTs (200A) – for MIN/SPH/SPF ESS Management
Compatible Growatt SM-US Smart Meter with 2 CTs (200A) – for MIN/SPH/SPF ESS Management
$194.00
Growatt ATS 11400T-US 50A Automatic Transfer Switch (Partial Home Backup)
Compatible Growatt ATS 11400T-US 50A Automatic Transfer Switch (Partial Home Backup)
$636.00
Growatt SYN 200-XH-US-13A Whole Home Backup ATS – 200A Breaker + Smart Meter + Generator Port
Compatible Growatt SYN 200-XH-US-13A Whole Home Backup ATS – 200A Breaker + Smart Meter + Generator Port
$1,683.00
Growatt ALP 5.0L Battery Cables (Battery Bank to Inverter)
Compatible Growatt ALP 5.0L Battery Cables (Battery Bank to Inverter)
$48.00
Growatt

PES Supply is an authorized distributor for Growatt. 50,000+ SKUs from 169 authorized brands.

The Growatt SPH 10000TL-HU-US(B) is a 10kW split-phase (120/240V) hybrid inverter with integrated ATS and 48V battery port — UPS function with 10ms transfer, generator support, and up to 3 units in parallel for three-phase.

Key Features

  • 10kW split-phase 120/240V hybrid inverter with integrated ATS
  • UPS function, 10ms transfer time; DC/AC ratio 1.5 with 3 MPPTs
  • Up to 200A battery charge/discharge; 48V battery (Growatt ALP & third-party)
  • CTs included; WiFi/LAN communications; Tigo RSD transmitter (TRS-T)
  • Supports DC-coupled, AC-coupled and AC-retrofit; diesel/gas generator input
  • Max 6 units in parallel; max efficiency 97.5% (CEC 97.6%)

Compatibility: Growatt ALP 5.0L LV batteries & third-party 48V batteries; Tigo RSD

Specifications

Model SPH 10000TL-HU-US(B)
Part Number SKSL50.0000902
Rated AC Output 10,000 W split-phase 120/240V
Battery 48Vdc, up to 200A charge/discharge
MPPTs 3
Max PV Input 15,000 W
Transfer Time 10 ms (UPS)
Dimensions (H×W×D) 25 × 18 × 8 in (≈630 × 460 × 200 mm)
Weight 77 lb (35 kg)
Includes CTs, WiFi/LAN module
Certifications UL1741 SA, IEEE1547, CA Rule 21, AFCI

Authorized Growatt distribution — full manufacturer warranty. Ships as single units via ground from Growatt USA (Eastvale, CA) or Louisville, KY.

SKUSKSL50.0000902
ManufacturerGrowatt
Datasheet
Height10.08
Length17.99
Width34.41
Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)
Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD) $2,851.00

You May Also Need

Solis 11.4kW Hybrid Inverter with Tigo Transmitter S6-EH1P11.4K-H-US-RS

Solis 11.4kW Hybrid Inverter with Tigo Transmitter S6-EH1P11.4K-H-US-RS

$2,092.75
EG4 12000XP 12kW Off-Grid Inverter

EG4 12000XP 12kW Off-Grid Inverter

$1,899.99
Growatt MIN 11400TL-XH-US 11.4kW Hybrid Inverter

Growatt MIN 11400TL-XH-US 11.4kW Hybrid Inverter

$1,706.00
Growatt MIN 10000TL-XH-US 10kW Hybrid Inverter

Growatt MIN 10000TL-XH-US 10kW Hybrid Inverter

$1,485.00
Sol-Ark SA-12K-2P 12KW Inverter/Charger 120V/240V

Sol-Ark SA-12K-2P 12KW Inverter/Charger 120V/240V

$4,025.61
Sol-Ark 12KW EMP Hardened Inverter/Charger 120V/240V SA-12K-EMPKIT

Sol-Ark 12KW EMP Hardened Inverter/Charger 120V/240V SA-12K-EMPKIT

$6,796.00
Fronius Primo 11.4-1 Grid Tie Inverter, 11.4kW , 208,240 VAC

Fronius Primo 11.4-1 Grid Tie Inverter, 11.4kW , 208,240 VAC

$3,770.92
MidNite Solar MN15-12KW-AIO 11.4kW All-In-One Inverter System

MidNite Solar MN15-12KW-AIO 11.4kW All-In-One Inverter System

$5,137.12

Specifications

Datasheet
Max. PV Input Power 15,000 W (10,000 W per MPPT)
Max. DC Voltage 525 V
Startup Voltage 130 V
MPPT Voltage Range 150–450V / 370V nominal
MPPT Trackers 3
PV Strings per MPPT 2
Max. Input Current per MPPT 22 A (27 A Isc)
AC Input (Grid/Gen) 10,000 W, 240V, 41.67 A; 62.5 A max passthrough; 10,000 W max generator input
AC Nominal Power 10,000 W / 10,000 VA
AC Nominal Voltage 120/208V & 120/240V split (180–280 Vac)
Max. AC Output Current 50 A
THDi <3%
Battery Voltage Range 40–60 V
Max. Battery Charge/Discharge 200 A / 10,000 W continuous
Battery Communication CAN / RS485 (lithium & lead-acid)
Backup Output 10,000 W; <10 ms switch; 1.5× rated overload 5 s
Peak Efficiency 98.1%
CEC Weighted Efficiency 97%
MPPT Efficiency ≥99.9%
Max. Stackable 6 units
Dimensions (W×H×D) 17.99 × 34.41 × 10.08 in (457 × 874 × 256 mm)
Weight 93.7 lb (42.5 kg)
Operating Temperature −13°F to +140°F (−25 to +60°C), derating above 113°F
Noise ≤60 dB(A)
Built-in Breakers BAT 80V/250A · Grid 400V/100A · GEN 400V/63A · LOAD 400V/100A
Enclosure IP65 / NEMA 4
Cooling Smart cooling (transformerless)
Max. Altitude 6,562 ft (2,000 m)
Communication WiFi/4G cellular (optional); RS485/CAN/USB
Warranty 10 years
Certifications IEEE1547, CA Rule 21, Rule 14 (HECO), UL1741, UL1741SA/SB, CSA C22.2, PREPA, UL1699B, UL1741 CRD, FCC Part 15 Class B, Sunspec
