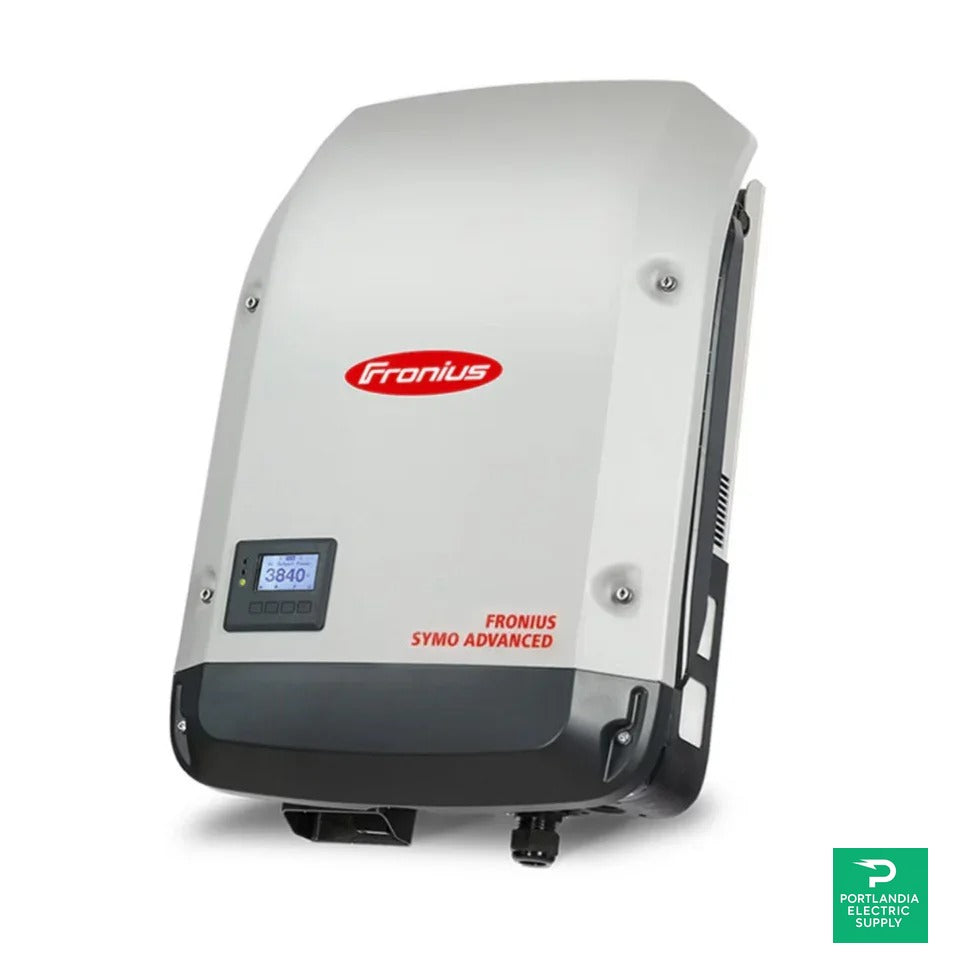

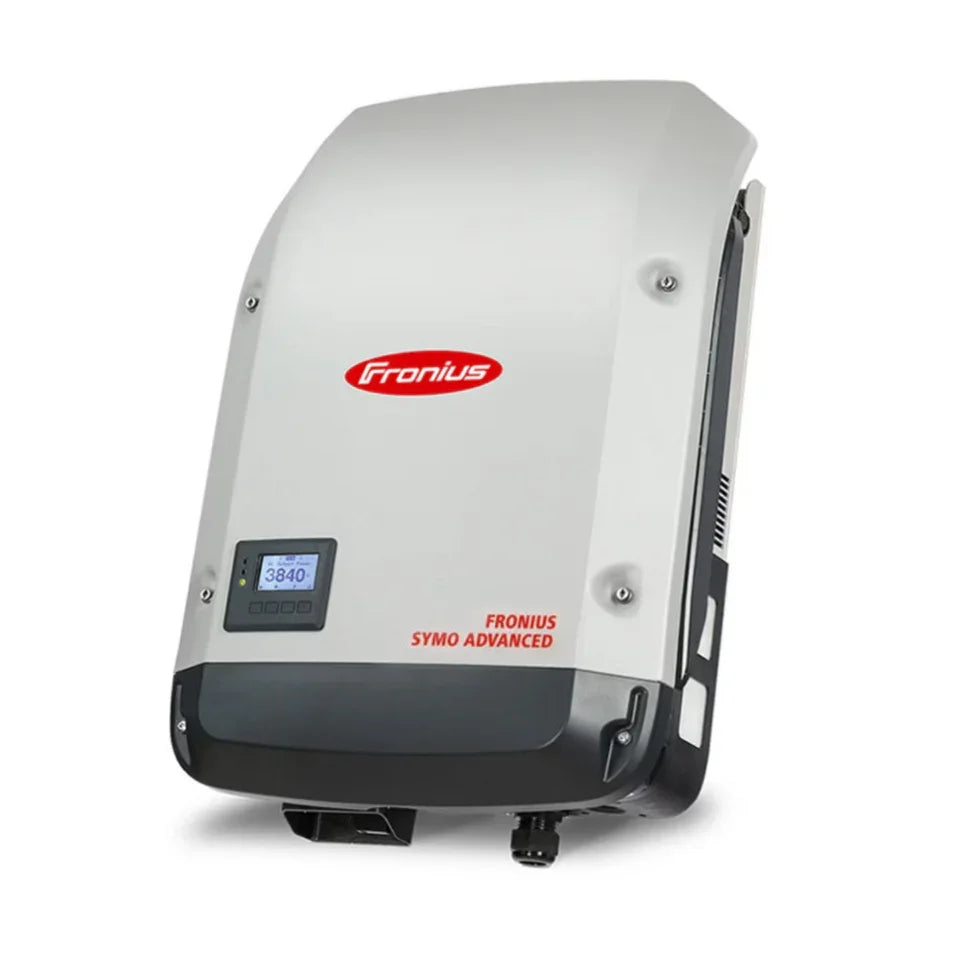

Fronius Symo 10kw Inverter FRO-SA-10-3-208240L Advanced

Fronius Symo Advanced 10.0‑3 208/240 V Lite Inverter (Model FRO‑SA‑10‑3‑208240L) is a commercial-grade, three-phase string inverter delivering up to 10 000 W AC output compatible with 208 V and 240 V systems.

Built for modern commercial solar installations, it supports module‑level rapid shutdown via integrated PLC transmitter in compliance with the SunSpec standard and NEC 2014/2017. Its transformerless design, SnapINverter mounting system, and lightweight construction enable zero‑tilt mounting and simple field servicing.

The inverter includes dual independent MPP trackers for enhanced shade mitigation and module flexibility, accepts up to 15 000 W DC input power, and features a wide operating voltage range of 200–1000 V DC with startup voltage at 200 V DC (600 V nominal). It also offers low nighttime consumption (< 1 W), regulated air cooling, and NEMA 4X/IP 66 enclosure rating.

Certified to UL 1741‑SA (CA Rule 21), UL 1998, IEEE 1547 and FCC Part 15, the Symo Advanced Lite offers advanced grid features with a robust 10‑year manufacturer warranty, extendable per Fronius options.

Designed for both indoor and outdoor installation (with shade cover for tilt angles under 15°), it operates reliably across −25°C to +60°C, with permissible humidity up to 100% non‑condensing and altitude ratings to 2000 m (use 3400 m max without exceeding 850 V DC input).
