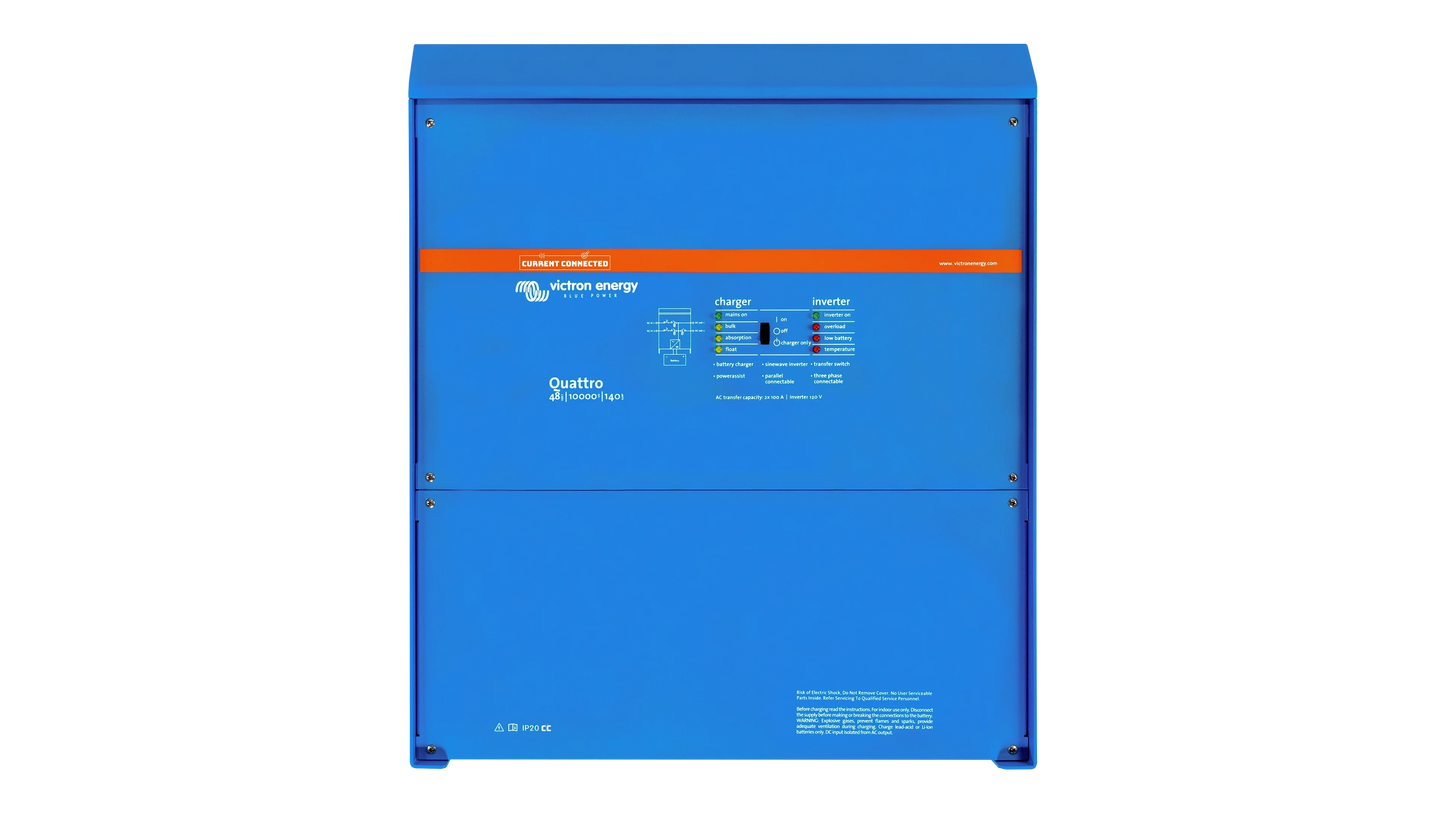

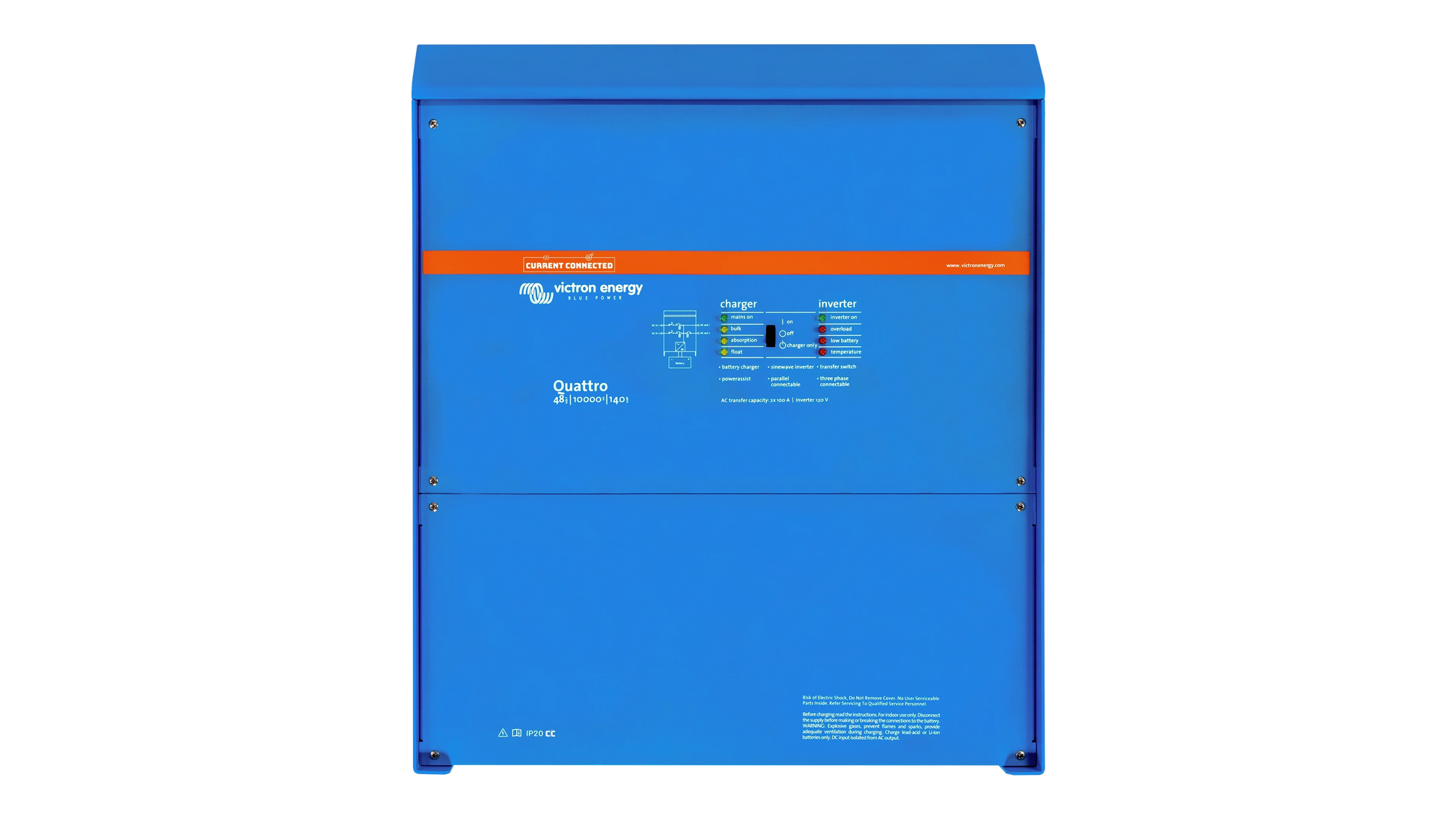

Victron Quattro 48/10000/140-100/100 120V Multifunctional Power Conversion Device QUA483100102
Victron Quattro 48/10000/140-100/100 120V Multifunctional Power Conversion Device QUA483100102
Orders ship via freight or ground from Louisville, KY. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Ships from our Louisville, KY warehouse. Freight details →
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Victron Energy. 50,000+ SKUs from 169 authorized brands.
The Victron Quattro QUA483100102 (Quattro 48/10000/140) is a combined inverter/charger with two AC inputs — 10000VA at 48V with 140A charger, 120VAC multifunctional power conversion. The Quattro automatically switches between grid, generator, and inverter power for uninterrupted off-grid, marine, and backup systems.
Key Features
- 10000VA at 48V with 140A charger, 120VAC multifunctional power conversion
- Two independent AC inputs with automatic source selection — connect grid and generator simultaneously
- Pure sine wave output with heavy surge capacity for inductive loads
- Adaptive multi-stage battery charger with PowerAssist — supplements limited shore/generator power with inverter power
- Parallel and three-phase capable for large systems
- Configure and monitor via VictronConnect and VRM (with GX device)
Specifications
| Model | QUA483100102 (Quattro 48/10000/140) |
| Type | Inverter/charger, dual AC input |
| Output | 10000VA at 48V with 140A charger, 120VAC multifunctional power conversion |
| Waveform | Pure sine wave |
| Features | PowerAssist, parallel/three-phase capable |
| Monitoring | VictronConnect, VRM via GX device |
| Warranty | 5-year Victron warranty |
Authorized Victron Energy distribution — 5-year Victron warranty. Ships via ground; large inverter/chargers may ship LTL freight.
| Manufacturer | Victron Energy |
|---|
