What is the Victron Energy VBB160080010 busbar used for?

The Victron Energy VBB160080010 busbar is used to combine multiple electrical connections into a single, organized distribution point. It is ideal for marine, RV, off-grid, solar, and industrial power systems requiring high-current distribution.

How much current can the Victron 600A busbar handle?

This busbar is rated for a maximum continuous current of 600 amps and supports voltages up to 70 VDC, making it suitable for heavy-duty electrical applications.

Does the Victron busbar include a safety cover?

Yes, the VBB160080010 comes with a durable ABS protective cover. The cover helps prevent accidental contact, reduces dust exposure, and improves overall electrical safety.

What material is used for the busbar and terminals?

The busbar is made from tin-plated copper for excellent conductivity and minimal power loss. The terminal flange nuts are stainless steel, offering corrosion resistance and long-term durability.

Is the Victron 600A busbar suitable for marine and RV installations?

Yes, this busbar is commonly used in marine, RV, and off-grid systems due to its high current rating, corrosion-resistant materials, and compact, space-saving design.

Home
Best seller

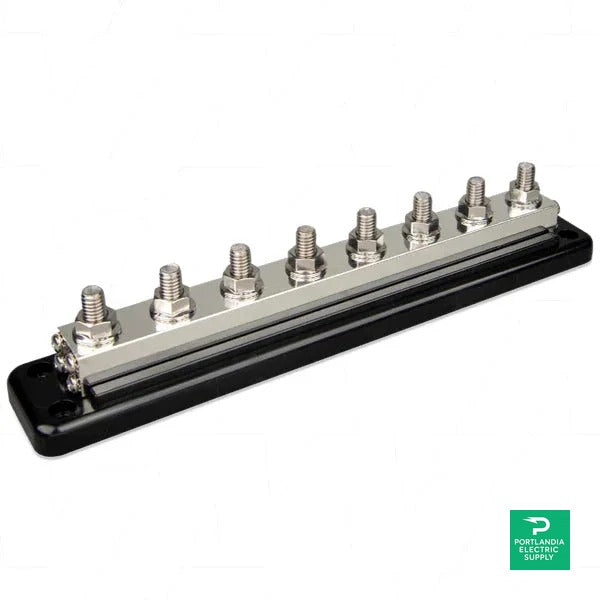

Victron Busbar 600A 8P +cover - VBB160080010

Victron Busbar 600A 8P +cover - VBB160080010

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Victron Busbar 600A 8P +cover - VBB160080010

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-0644

OEM Authorized Dealer Full OEM Warranty

$227.00 USD

$ $227.00 USD

Sold out

Quantity

Datasheet

Multi-unit or project order?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

SKU: PES-PA-ELC-0644
MPN: VBB160080010
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Solar panels Runergy Hyperion 400W Mono PERC Bifacial Dual Glass HY-DH108P8B-400 Solar Panel

$140.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Victron Busbar 600A 8P +cover - VBB160080010 $227.00

Specifications

Datasheet

Amperage 600A

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

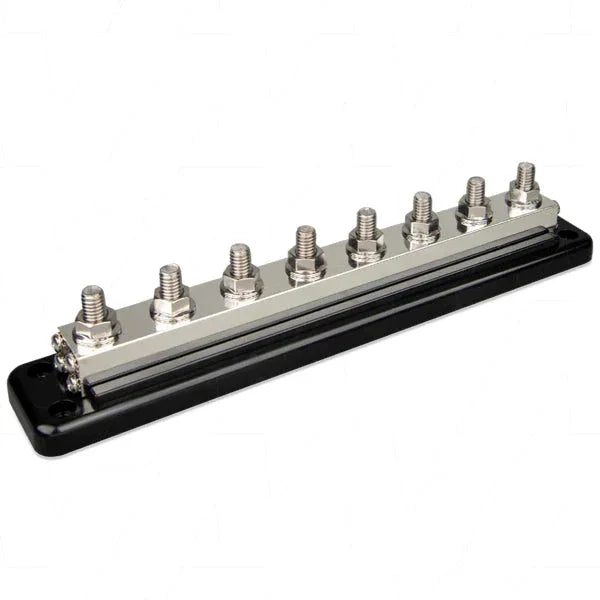

Victron Busbar 600A with Cover - VBB160080010

The Victron Energy VBB160080010 is a robust busbar designed to handle a maximum current of 600 A, making it an excellent choice for reliable electrical connections in various applications. This product features sturdy terminals, providing exceptional durability to accommodate high power needs. With its thoughtfully crafted cover, this busbar not only ensures safety but also enhances the overall user experience in both residential and commercial settings.

Product Features

High Current Handling

With a maximum current capacity of 600 A, the Victron Energy VBB160080010 is engineered for optimal performance and reliability in demanding environments. This feature makes it particularly suitable for heavy-duty applications that require stable and consistent power distribution.

Durable Materials

The terminal material is stainless steel, which not only ensures corrosion resistance but also guarantees a long lifespan. This choice of material enhances the busbar's durability, making it an essential component for both residential and industrial settings.

Secure Connections

Featuring both high current and low current terminals, this busbar is designed to deliver secure and reliable connections. The recommended torque settings ensure that all terminals are tightened properly, minimizing the risk of connection failure during operation.

Optimal Dimensions

The Victron busbar is designed with the dimensions of 2.6 x 8.5 x 3.4 inches for the 4 terminal configuration, ensuring a compact fit in various setups. This thoughtful design aspect helps users effectively utilize available space while maintaining optimal connectivity.

Effective Cover Design

The included cover adds an additional layer of protection to the busbar, safeguarding it against physical damage and dust. The cover is crafted from ABS material, which provides both strength and safety against electrical hazards.

How It Works

The Victron Energy VBB160080010 busbar operates on a straightforward principle of consolidating numerous electrical connections into one central point. This design simplifies wiring and enhances safety, making it an invaluable component in modern electrical systems.

Terminal Functionality

The high current terminals are designed for efficient power transmission, allowing users to connect various electrical components seamlessly. Each terminal plays a crucial role in distributing power evenly across multiple systems.

Material Efficiency

Utilizing tin-plated copper for the busbar material enhances conductivity while ensuring minimal energy loss. This design choice maximizes performance and contributes to the overall efficiency of the electrical system.

Base and Cover Protection

The base is constructed from durable ABS material, ensuring a sturdy foundation that withstands mechanical stress. The protective cover not only aids in safety but also enhances the overall aesthetic appeal of the busbar installation.

Specifications

Max Current	600 A
Max Voltage	70 VDC
Terminal Diameter	3/8 inch / 9.53 mm
Terminal Height	0.76 inch / 19 mm
Flange Nut Material	Stainless steel
Recommended Torque	180 lbf·inch / 20 N·m
Screw Terminals Diameter	#8 (0.164 inch) / 4.2 mm
Busbar Material	Tin-plated copper (19 x 24 mm)
Base Material	ABS, black, UL 94 V-0
Weight (4 terminals)	1.7 lb / 0.75 kg
Dimensions (with cover)	2.6 x 8.5 x 3.4 inch / 65 x 216 x 86 mm
Weight (8 terminals)	2.9 lb / 1.3 kg
Dimensions (with cover)	2.6 x 12.9 x 3.4 inch / 65 x 327 x 86 mm
