What is the Victron Orion-Tr 48/12-20A used for?

It is a DC-DC converter designed to convert 48V DC input to 12V DC output, providing stable power for vehicles, boats, RVs, solar systems, and other applications.

Can the output voltage be adjusted?

Yes, the Orion-Tr features an adjustable output voltage, allowing users to fine-tune between -15% and +25% of the nominal 12.2V output for optimal device performance.

Does it have safety features?

Absolutely. The converter comes with overload, short-circuit, and high-temperature protection to ensure safe and reliable operation under all conditions.

What is the maximum current it can handle?

It supports 20A continuous output and can handle up to 30A for 10 seconds. The short-circuit output current is 32A.

Is remote control possible?

Yes, an optional remote on/off feature allows simplified control of the power supply without using a high-current switch.

Home
Batteries Accessories
Victron Orion-Tr 48/12-20A (240W) - ORI481224110

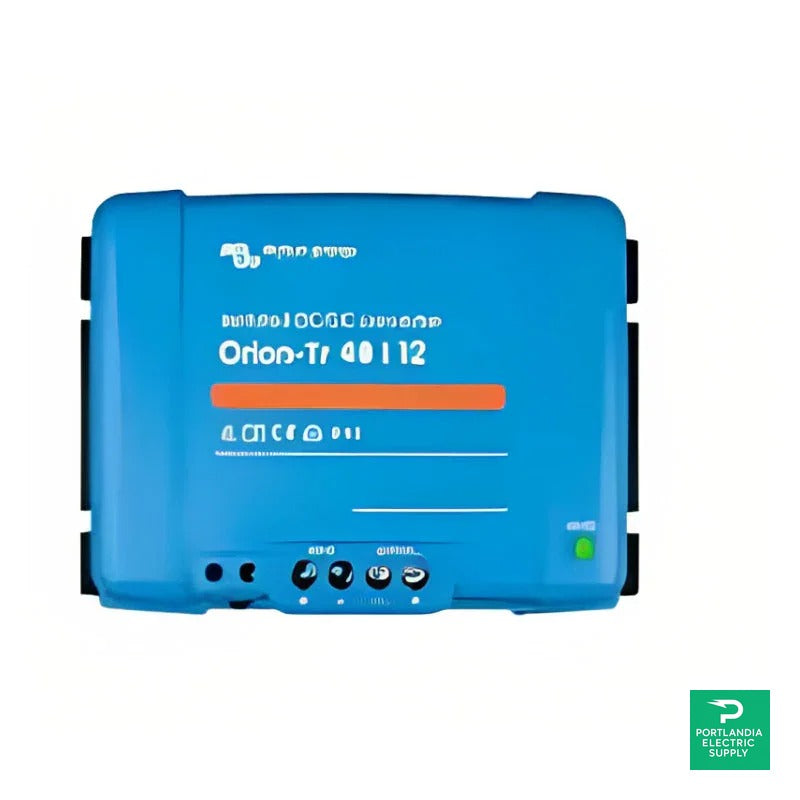

Victron Orion-Tr 48/12-20A (240W) - ORI481224110 — front view

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Victron Orion-Tr 48/12-20A (240W) - ORI481224110

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-0612

OEM Authorized Dealer Full OEM Warranty

$128.00 USD

$ $128.00 USD

Sold out

Quantity

Datasheet

Manual

Warranty

Multi-unit or project order?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

SKU: PES-PA-ELC-0612
MPN: ORI481224110
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Hybrid inverter Sol-Ark 18kW Inverter SA-18K-2P 48VDC 120/240V | Outdoor Grid-tied and Off-grid

$6,106.00

Battery rack EG4 3-Slot Battery Rack â€“ Heavy-Duty Indoor Cabinet with 300A Busbars

$439.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Victron Orion-Tr 48/12-20A (240W) - ORI481224110 $128.00

Specifications

Datasheet

Power Rating 240W

Amperage 20A

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Victron Orion-Tr 48/12-20A (240W) - ORI481224110

The Victron Orion-Tr 48/12-20A (240W) is designed to efficiently convert and isolate power for specific applications. With its robust features, this DC-DC converter ensures stable output voltage and reliable performance, making it an ideal choice for both professionals and hobbyists alike. Its user-friendly design facilitates easy integration into your existing systems, ensuring that your devices receive the optimal power they need.

Product Features

Powerful Conversion Capability

This Victron Energy ORI481224110 model provides exceptional power output, converting 48V DC input to 12V DC output, enabling it to efficiently support a wide range of devices with varying power requirements.

Remote On/Off Functionality

Equipped with an optional remote on/off feature, this DC-DC converter allows for simplified control over your power supply, eliminating the need for a high current switch. This enhances overall usability and convenience.

Adjustable Output Voltage

The Orion-Tr converter offers adjustable output voltage settings, giving users the flexibility to fine-tune the voltage levels between -15% and +25% of the default value according to their specific needs, ensuring optimal device performance.

Overload and Short Circuit Protection

Safety is paramount, and this model is designed with overload and short-circuit proof capabilities. This means it can handle unexpected surges in current without damage, significantly increasing the reliability of your system.

High-Temperature Protection

The device smartly reduces the output current in high temperature conditions, ensuring it operates within safe limits and prolongs its lifespan. This feature is crucial for maintaining consistent performance during extreme conditions.

How It Works

The Victron Orion-Tr 48/12-20A operates by taking a 48V DC input and efficiently converting it to a stable 12V DC output. Its design incorporates advanced electronic components that ensure minimal energy loss while providing optimal performance.

Power Input Section

This section safely accepts 48V power input while ensuring that it is isolated from the output, which enhances safety and reliability, making it suitable for various applications.

Output Voltage Control

Featuring a user-friendly potentiometer, users can easily adjust the output voltage according to the operational requirements of their specific devices, accommodating a variety of applications efficiently.

Safety Mechanisms

The inherent overload and short-circuit protection mechanisms are integrated to safeguard both the converter and connected devices from potential damage, maintaining system integrity through all power conditions.

Specifications

Input Voltage Range	32V to 70V
Nominal Output Voltage	12.2V
Output Current	20A Continuous
Maximum Output Current (10s)	30A
Efficiency	Up to 88%
Short Circuit Output Current	32A
Weight	0.42kg
Dimensions (HxWxD)	100 x 113 x 47 mm
Operating Temperature Range	-20°C to +55°C
Input Fuse	Not replaceable (for 12V and 24V models only)

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Victron Orion-Tr 48/12-20A (240W) - ORI481224110

Product Features

Powerful Conversion Capability

Remote On/Off Functionality

Adjustable Output Voltage

Overload and Short Circuit Protection

High-Temperature Protection

How It Works

Power Input Section

This section safely accepts 48V power input while ensuring that it is isolated from the output, which enhances safety and reliability, making it suitable for various applications.

Output Voltage Control

Safety Mechanisms

Specifications

Input Voltage Range	32V to 70V
Nominal Output Voltage	12.2V
Output Current	20A Continuous
Maximum Output Current (10s)	30A
Efficiency	Up to 88%
Short Circuit Output Current	32A
Weight	0.42kg
Dimensions (HxWxD)	100 x 113 x 47 mm
Operating Temperature Range	-20°C to +55°C
Input Fuse	Not replaceable (for 12V and 24V models only)
