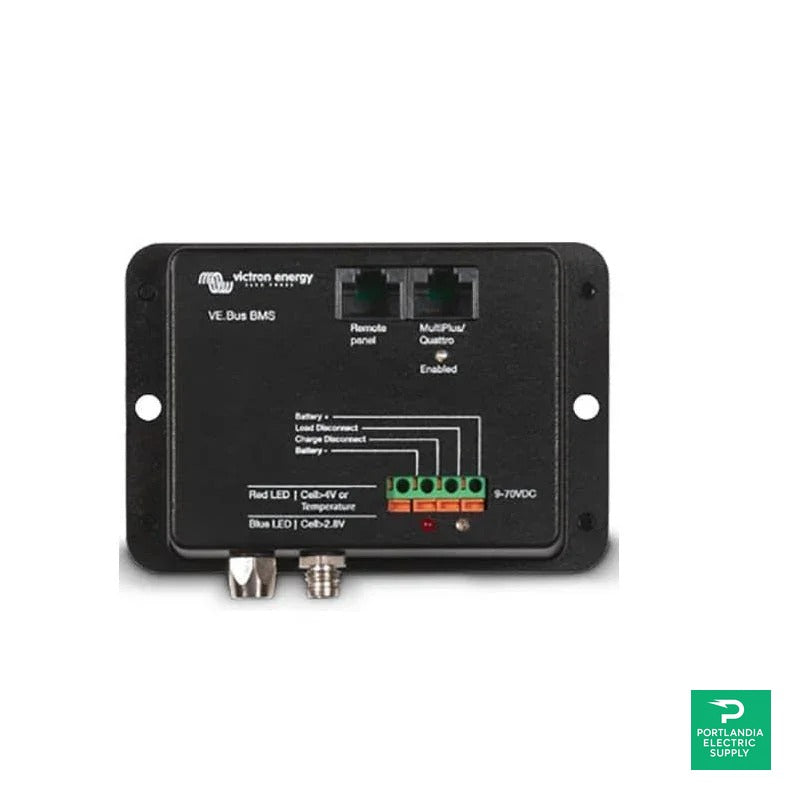

Victron Battery Management System VE.Bus BMS (includes AC detector) - BMS300200000 — front view

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Victron Battery Management System VE.Bus BMS (includes AC detector) - BMS300200000

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-0558

OEM Authorized Dealer Full OEM Warranty

$131.00 USD

$ $131.00 USD

Sold out

Quantity

Datasheet

Manual

Warranty

Multi-unit or project order?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-PA-ELC-0558
MPN: BMS300200000
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Hybrid inverter Sol-Ark 18kW Inverter SA-18K-2P 48VDC 120/240V | Outdoor Grid-tied and Off-grid

$6,106.00

Battery rack EG4 3-Slot Battery Rack â€“ Heavy-Duty Indoor Cabinet with 300A Busbars

$439.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Victron Battery Management System VE.Bus BMS (includes AC detector) - BMS300200000 $131.00

Specifications

Datasheet

Current Type AC

Product Category Battery

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Victron Energy BMS300200000

Victron Battery Management System VE.Bus BMS

The Victron Battery Management System (BMS) is designed to enhance safety and efficiency in lithium battery applications. Specifically engineered for Victron lithium iron phosphate (LiFePO4) batteries, model number BMS300200000, it offers comprehensive protection against overvoltage, undervoltage, and overheating. This system not only safeguards each cell but also improves performance and longevity, making it an essential component for managing battery resources effectively.

Product Features

Comprehensive Cell Protection

The Victron BMS300200000 ensures that each cell in your LiFePO4 battery is protected from critical failures. This feature plays a vital role in prolonging battery life and maintaining optimal performance during use.

Real-Time Monitoring

Equipped with advanced monitoring capabilities, this BMS continuously checks the voltage and temperature levels of the cells. By doing so, it provides users with ongoing insights into the health of their battery system, facilitating timely interventions when necessary.

Seamless Communication

With its VE.Bus communication port, the BMS300200000 connects efficiently with Victron MultiPlus and Quattro inverters. This communication capability enhances overall system functionality and ensures synchronized performance across all connected devices.

Flexible Voltage Range

This battery management system handles an extensive operating voltage range of 9 to 70V DC. Such flexibility makes it suitable for various battery configurations, providing adaptability as your energy needs evolve.

User-Friendly Design

The compact and durable design of the Victron BMS300200000 offers easy integration into your existing battery setups. Its straightforward installation process means enhanced usability for both technical and non-technical users alike.

How It Works

The Victron BMS operates through a series of integrated functions that protect and monitor lithium battery systems. Utilizing advanced technologies, this system continuously assesses the conditions of the battery cells, reacting appropriately to prevent potential hazards.

Cell Monitoring

At the core of the BMS's operation is its ability to monitor individual cells. This component tracks the voltage and temperature, making real-time adjustments that enhance battery safety and efficacy.

Load Disconnect Capability

The BMS features a Load Disconnect function that activates during low voltage situations, safeguarding the cells from damage. This mechanism ensures that when critical thresholds are reached, the system will automatically adjust to protect the integrity of the battery.

Charge Control Management

Implementing effective Charge Control, the BMS adjusts charging parameters to prevent overcharging while maximizing efficiency. This ensures that the battery charges effectively without risking cell damage.

Specifications

Product Title	Victron Battery Management System BMS300200000
Operating Voltage Range	9 - 70V DC
Current Draw (Normal Operation)	10 mA
Weight	0.1 kg
Dimensions (mm)	105 x 78 x 32
Protection Grade	IP20
Operating Temperature	-20 to +50°C
Communication Ports	VE.Bus Communication with two RJ45 sockets
Pre-Alarms	Visual and audible alerts for cell voltage issues
Load Disconnect Current Limit	2 A
