Unirac TR SPAN-TILE ADOB - 004TRSA

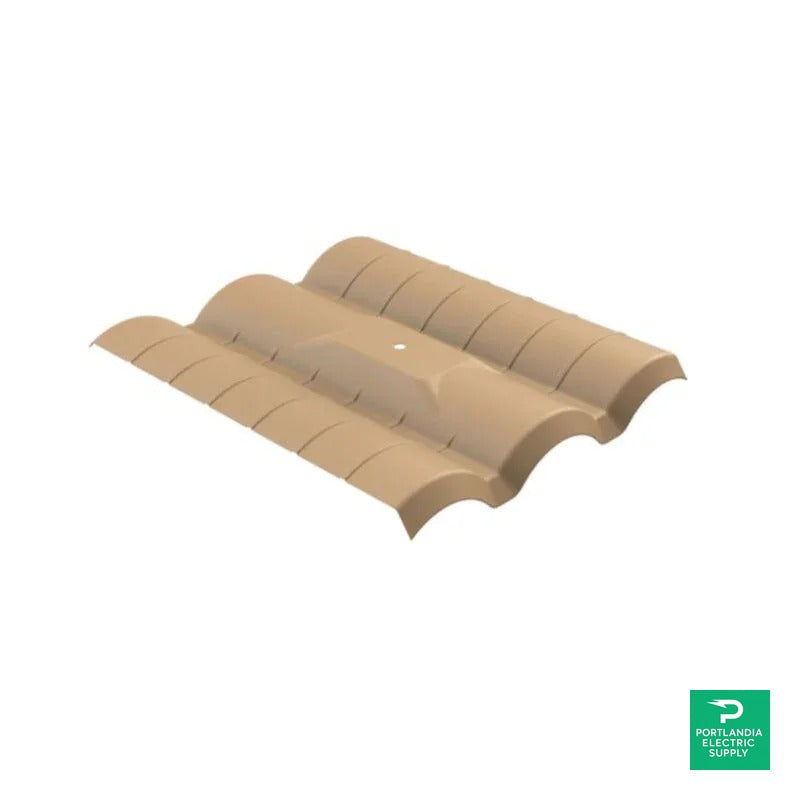

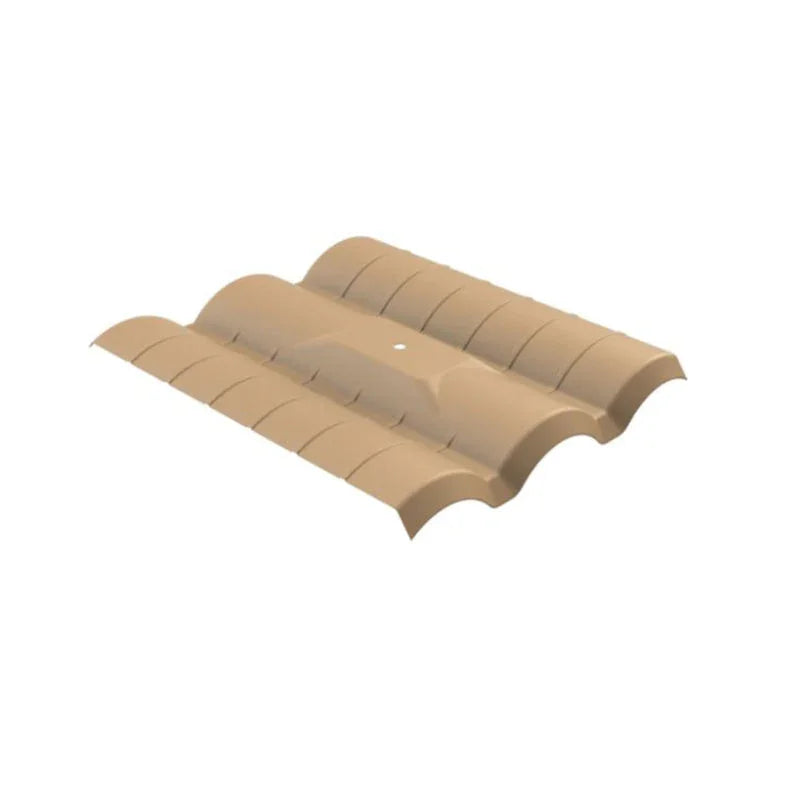

Unirac TR Span-Tile Adobe - Model 004TRSA

The Unirac TR Span-Tile Adobe - 004TRSA is designed specifically for flush roof installations. This versatile tile replacement solution ensures reliable mounting for solar installations, enhancing stability even on steep or sloped roofs. With its robust construction and ease of installation, the Unirac 004TRSA provides both confidence and efficiency in solar setup, making it a prime choice for any installer looking for durable performance.

Product Features

Durable Construction

The Unirac 004TRSA is made with high-quality materials, including 6005A-T61 or 6061-T6 aluminum, providing substantial energy storage for your solar panel systems. This ensures that your installations will withstand the test of time, even in challenging environmental conditions.

Easy Installation

This tile replacement is designed for straightforward installation, allowing quick setup without compromising on safety or performance. The user-friendly design ensures that both novice and experienced installers can achieve optimal results with minimal effort.

Versatile Compatibility

The Unirac TR Span-Tile Adobe is adaptable and compatible with various tile shapes and colors, providing flexibility for diverse roofing scenarios. This versatility allows for a cohesive and aesthetically pleasing integration with existing roofing materials.

Proven Load Capacity

With exceptional allowable ultimate loads of up to 1433 lbs tension and 2285 lbs compression, this product showcases impressive performance capabilities. The robust design delivers peace of mind that your solar panels will remain securely anchored under various load conditions.

Comprehensive Engineering Support

Users benefit from thorough engineering guidelines and installation manuals, helping installers meet local compliance and safety standards. It encourages best practices throughout the installation process for superior results and long-term functionality.

How It Works

The Unirac 004TRSA operates by connecting to the underlying structural framework of a roofing system. This tile replacement efficiently transfers any loads, ensuring full compliance with industry standards while maintaining optimal load management.

Base Plate Functionality

The base plate is essential for securing the tiered riser, which allows the installer to adjust the height of tile mounts based on specific installation needs. This adaptability is crucial for maximum effectiveness in various configurations.

Sealing Washers Integration

The provided sealing washers enhance the waterproofing properties of the installation, preventing leaks and ensuring the longevity of the roofing system. This feature is vital for maintaining the integrity of solar installations over time.

Lag Bolt Design

With strategically placed lag bolts, the installation achieves secure anchoring to the structural members of the roof. This design ensures that all components remain stable and safe under different environmental pressures.

Specifications
