- SKU
- PES-SPS-SOL-21229
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for LONGi. 50,000+ SKUs from 169 authorized brands.

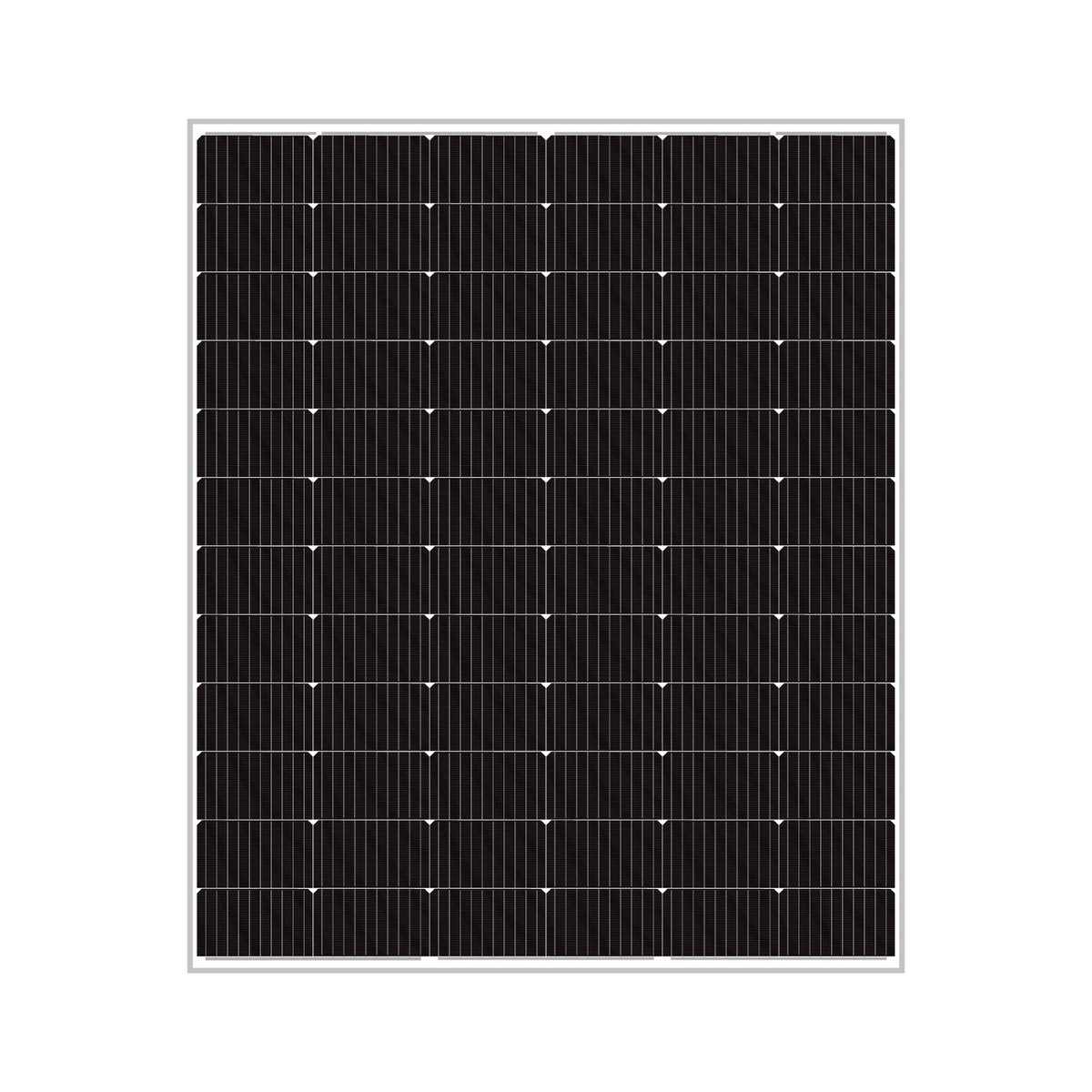

Type Monocrystalline Model No. LR5-54HTDB-430M Product Warranty 25 Years Power Warranty 1 Years of 98.5 %, 30 Years of 86.9 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 33.47 V Current at Maximum Power (Impp) 12.85 A Open Circuit Voltage (Voc) 39.85 V Short Circuit Current (Isc) 13.69 A Panel Efficiency 22 % Maximum Power (Pmax) 321.3 Wp Voltage at Maximum Power (Vmpp) 30.54 V Current at Maximum Power (Impp) 10.53 A Open Circuit Voltage (Voc) 37.42 V Short Circuit Current (Isc) 11.06 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 22.5 kg Cell Number 108 Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable
Power Range: 425 ~ 430 Wp
Panel Efficiency: 21.8 ~ 22 %
Weight: 22.5 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21229 |
|---|---|
| Manufacturer | LONGi |
| Brand | |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
