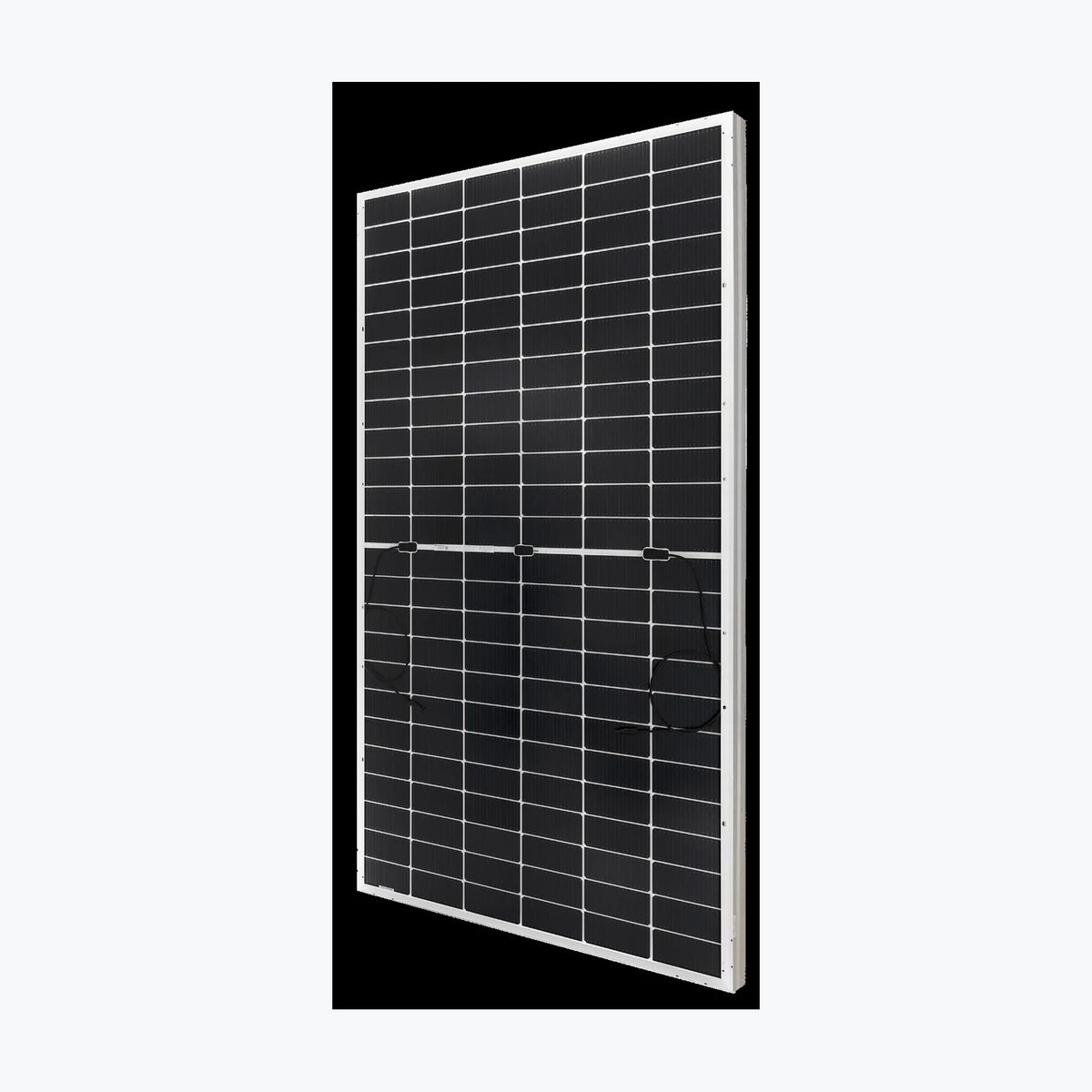

Topsky Energy CS6W-585TB-AG
PayPal Pay in 4 interest-free payments of $46.66 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
✓ Lock pricing 7 days · Share with clients · Wire/ACH accepted
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21189
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Canadian Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. CS6W-585TB-AG Product Warranty 12 Years Power Tolerance 0 ~ +2 % Maximum Power (Pmax) 585 Wp Voltage at Maximum Power (Vmpp) 43.3 V Current at Maximum Power (Impp) 13.52 A Open Circuit Voltage (Voc) 52.4 V Short Circuit Current (Isc) 14 A Panel Efficiency 22.6 % Maximum Power (Pmax) 443 Wp Voltage at Maximum Power (Vmpp) 40.9 V Current at Maximum Power (Impp) 10.81 A Open Circuit Voltage (Voc) 49.6 V Short Circuit Current (Isc) 11.29 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 32.3 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm
Technology: Bifacial, TOPCon
Power Range: 580 ~ 595 Wp
Panel Efficiency: 22.5 ~ 23 %
Weight: 32.3 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21189 |
|---|---|
| Manufacturer | Canadian Solar |
| Brand | |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Vendor mpn | |
| Manufacturer | |
| Model number | |
| Wattage |
No documents available for this product. Contact us to request documentation.
