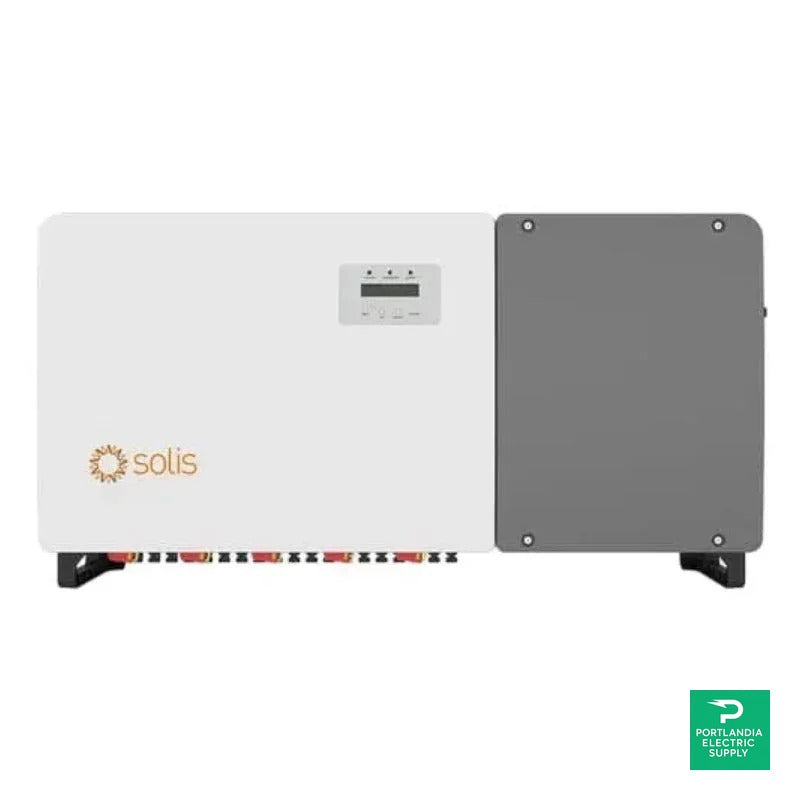

Solis 80kW Three Phase Nine MPPT Inverter
The Solis S5-GC80K-US-RSS inverter is an advanced solar solution designed for commercial and industrial applications. Featuring nine MPPTs for maximum power point tracking, this inverter delivers exceptional efficiency, ensuring high energy conversion rates up to 98.8%. Its robust build and smart monitoring technology provide reliable and safe operation for solar power systems.
Product Features
High Efficiency
The Solis S5-GC80K-US-RSS inverter offers a maximum efficiency of 98.8%, optimizing energy conversion from solar panels while minimizing energy loss.
Advanced Safety Features
This inverter integrates AFCI protection and rapid shutdown capabilities, significantly enhancing safety by reducing fire risks and complying with the latest safety standards.
Robust Build Quality
With a Type 4X enclosure and C5 anti-corrosion level, the inverter is designed to withstand adverse weather conditions and maintain durability over time.
Comprehensive Monitoring
Equipped with intelligent string monitoring and smart I-V curve scanning, this inverter allows operators to perform real-time analysis and improvements remotely.
Flexible Communication Options
This product features multiple communication interfaces, including RS485 and Ethernet, with optional Wi-Fi and cellular connectivity for versatile remote monitoring.
How It Works
The Solis S5-GC80K-US-RSS utilizes a sophisticated combination of hardware components to efficiently convert DC power generated by solar panels into AC power for grid use. Its multi-MPPT design allows each panel string to achieve optimal power output independently.
MPPT Technology
The multi-point power tracking system ensures that maximum energy is harvested from solar panels even under varying conditions.
Transformerless Design
This design choice allows for a more lightweight and compact unit, improving installation ease and reducing transformer-related power losses.
Intelligent Cooling System
An intelligent fan-cooling mechanism keeps the inverter functioning optimally by adjusting cooling performance based on the operational demands and ambient temperature.
Specifications
| Max. Input Voltage | 1000 V |
| Rated Voltage | 600 V |
| MPPT Voltage Range | 180-1000 V |
| Max. Output Power | 80 kW |
| Rated Grid Voltage | 480 V, 3Φ |
| Max. Efficiency | 98.8% |
| Surge Protection | DC Type II / AC Type II |
| Dimensions (W*H*D) | 41.9*22.3*13.6 in |
| Weight | 187 lbs (85 kgs) |
| Communication Options | RS485, Ethernet, Wi-Fi (optional) |
| SKU | PES-SPS-SIV-0155 |
|---|---|
| MPN | S5-GC80K-US-RSS |
| Manufacturer | Solis |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Phase | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number | |
| Warranty (years) | 10 |
