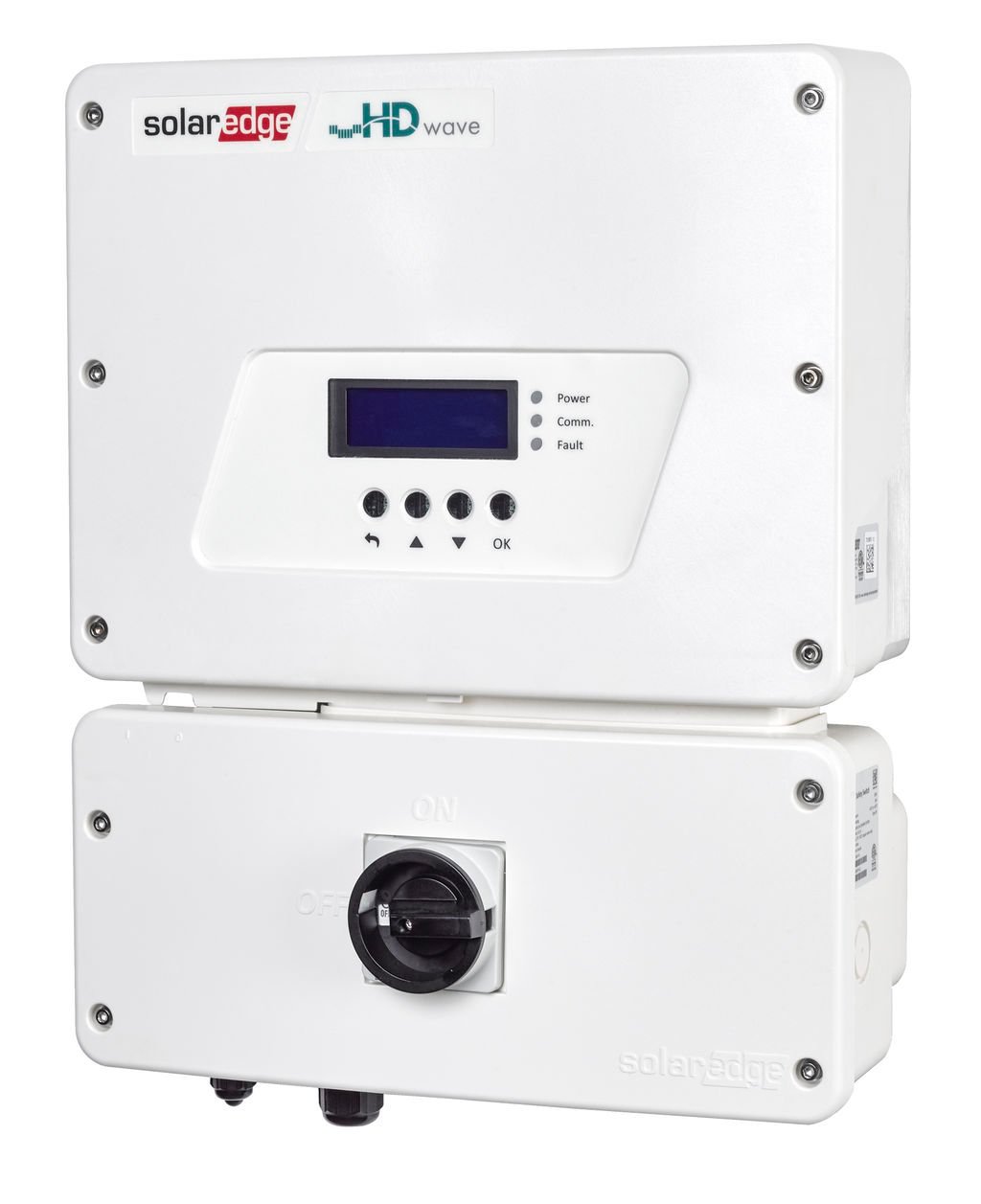

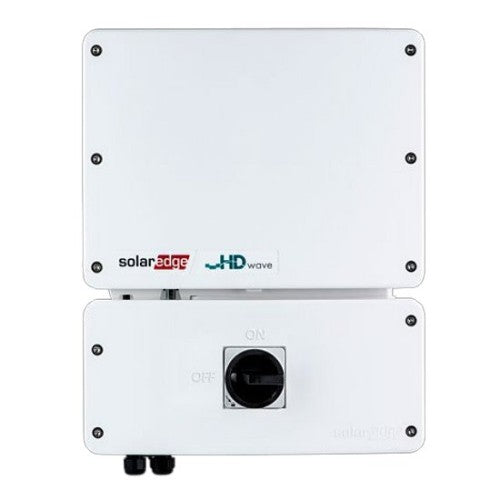

SolarEdge SE6000H-US Single Phase Inverter with RGM and Consumption Meter – SE6000H-US000BEI4
The SolarEdge SE6000H-US000BEI4 is a 6.0kW single-phase inverter from the renowned SolarEdge HD-Wave series, engineered for high-efficiency residential solar energy systems. With built-in Revenue Grade Meter (RGM) and consumption monitoring, it provides seamless integration of power generation and usage data through the SolarEdge monitoring platform.
Product Features
HD-Wave Inverter Technology
SolarEdge’s award-winning HD-Wave technology delivers record-breaking efficiency of up to 99%, using advanced digital processing to achieve cleaner sine waves and reduced losses.
Integrated Revenue Grade Meter
Comes factory-equipped with a Revenue Grade Meter (RGM) for accurate, utility-compliant power production measurement—ideal for net metering applications.
Built-in Consumption Monitoring
Real-time monitoring of energy usage and generation, enabling smart energy management through the SolarEdge app and online portal.
Compact and Lightweight Design
Weighing under 30 lbs, the compact form factor allows for quick wall mounting and easy one-person installation.
Enhanced Safety and Compliance
Features integrated arc fault protection (AFCI), rapid shutdown compliance, and NEC 2020 compatibility for safe and code-compliant installations.
Communication Options
Supports Ethernet, RS485, and optional cellular connectivity for flexible system communication and monitoring.
Applications
- Residential grid-tied solar installations
- Net metering and performance monitoring
- Smart home energy management systems
- Battery-ready system architecture (future upgrade path)
Specifications
| Model | SE6000H-US000BEI4 |
| Rated AC Output Power | 6.0 kW |
| Max DC Power | 9.3 kW |
| Maximum Efficiency | 99.0% |
| Nominal AC Voltage | 240V, 60Hz |
| RGM & Consumption Meter | Integrated (Factory Installed) |
| Communication | Ethernet, RS485, Cellular (optional) |
| Enclosure | NEMA 3R – Outdoor Rated |
| Cooling | Natural Convection (No Fan) |
| Certifications | UL 1741 SA, UL 1699B, IEEE 1547, NEC 2020 |
| Operating Temperature Range | –13°F to 140°F (–25°C to 60°C) |
| Warranty | 12 Years Standard (Extendable to 25 Years) |
| Manufacturer | SolarEdge Technologies |
All specifications verified from official SolarEdge Datasheet.
