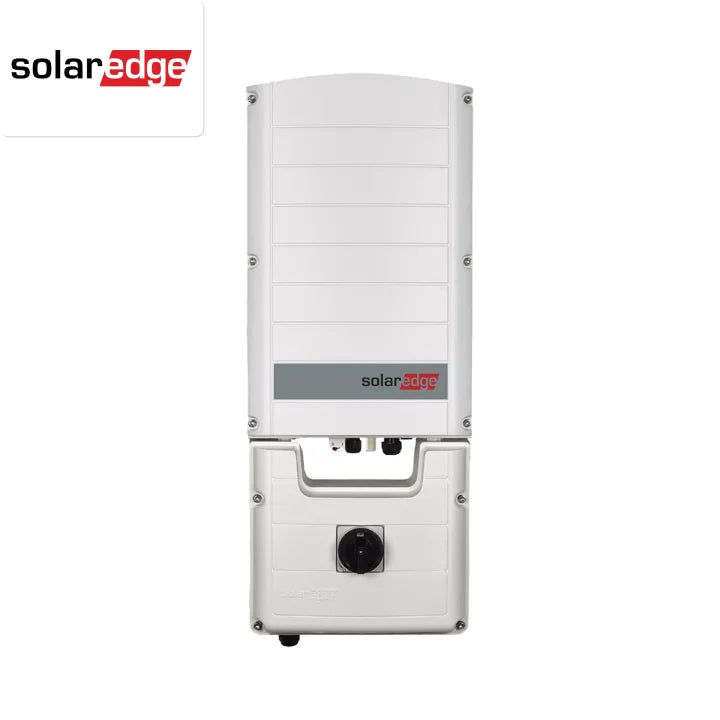

SolarEdge SE-10K-USR2IBNZ4-1 10 kW Three-Phase Inverter — High-Efficiency Smart Solar Solution
The SolarEdge SE-10K-USR2IBNZ4-1 10 kW Three-Phase Inverter is an advanced solar inverter engineered for commercial and light-industrial solar applications. Designed for seamless integration with SolarEdge power optimisers, the SolarEdge SE-10K-USR2IBNZ4-1 10 kW Three-Phase Inverter maximises energy harvest while simplifying system design and installation. This model includes SetApp configuration via smartphone, removing the need for an LCD display and ensuring faster commissioning. Built to meet the latest safety and performance standards, the SolarEdge SE-10K-USR2IBNZ4-1 10 kW Three-Phase Inverter offers long-term reliability and efficient grid-tied operation.
Product Features
Optimiser-Based Energy Maximisation
Works exclusively with SolarEdge DC power optimisers to maximise output at the module level, ensuring consistent performance even under partial shading.
High Conversion Efficiency
Achieves up to 98 % weighted efficiency, providing superior energy yields and improved overall system return on investment.
SetApp Configuration
The SolarEdge SE-10K-USR2IBNZ4-1 10 kW Three-Phase Inverter is commissioned via SolarEdge’s SetApp mobile application, streamlining setup and eliminating physical screens.
Integrated Safety and Compliance
Includes advanced safety features like integrated arc fault protection, rapid shutdown, and ground fault detection in compliance with NEC standards.
Durable and Lightweight Design
Compact NEMA 3R-rated enclosure supports outdoor installation and ensures quiet, efficient cooling without compromising longevity.
How It Works
The SolarEdge SE-10K-USR2IBNZ4-1 10 kW Three-Phase Inverter converts optimised DC power from each solar module into grid-ready AC power. Communication between optimisers and the inverter allows real-time maximum power point tracking (MPPT) at the module level, increasing overall system efficiency and simplifying fault detection.
Specifications
| Model | SE-10K-USR2IBNZ4-1 |
| Rated AC Output Power | 10,000 W (10 kW) |
| AC Output Voltage | 208 V / 240 V AC, Three Phase |
| Maximum DC Input Voltage | 480 V DC |
| Weighted Efficiency | 98.0 % |
| Power Optimiser Compatibility | SolarEdge Power Optimisers (P-Series) |
| Cooling Method | Natural Convection |
| Enclosure Rating | NEMA 3R / IP65 (Outdoor Rated) |
| Communication Interfaces | Ethernet / Wi-Fi / RS485 / Cellular (optional) |
| Operating Temperature Range | -13 °F to 140 °F (-25 °C to +60 °C) |
| Dimensions (L × W × H) | 18.7 × 14.6 × 7.2 in (475 × 370 × 184 mm) |
| Weight | ≈ 33 lb (15 kg) |
| Warranty | 12 Years (Extendable to 20/25) |
| Manufacturer | SolarEdge Technologies |
Specifications verified from official SolarEdge datasheet (SE10K-USR2IBNZ4 Three-Phase Inverter) and related product listings.
