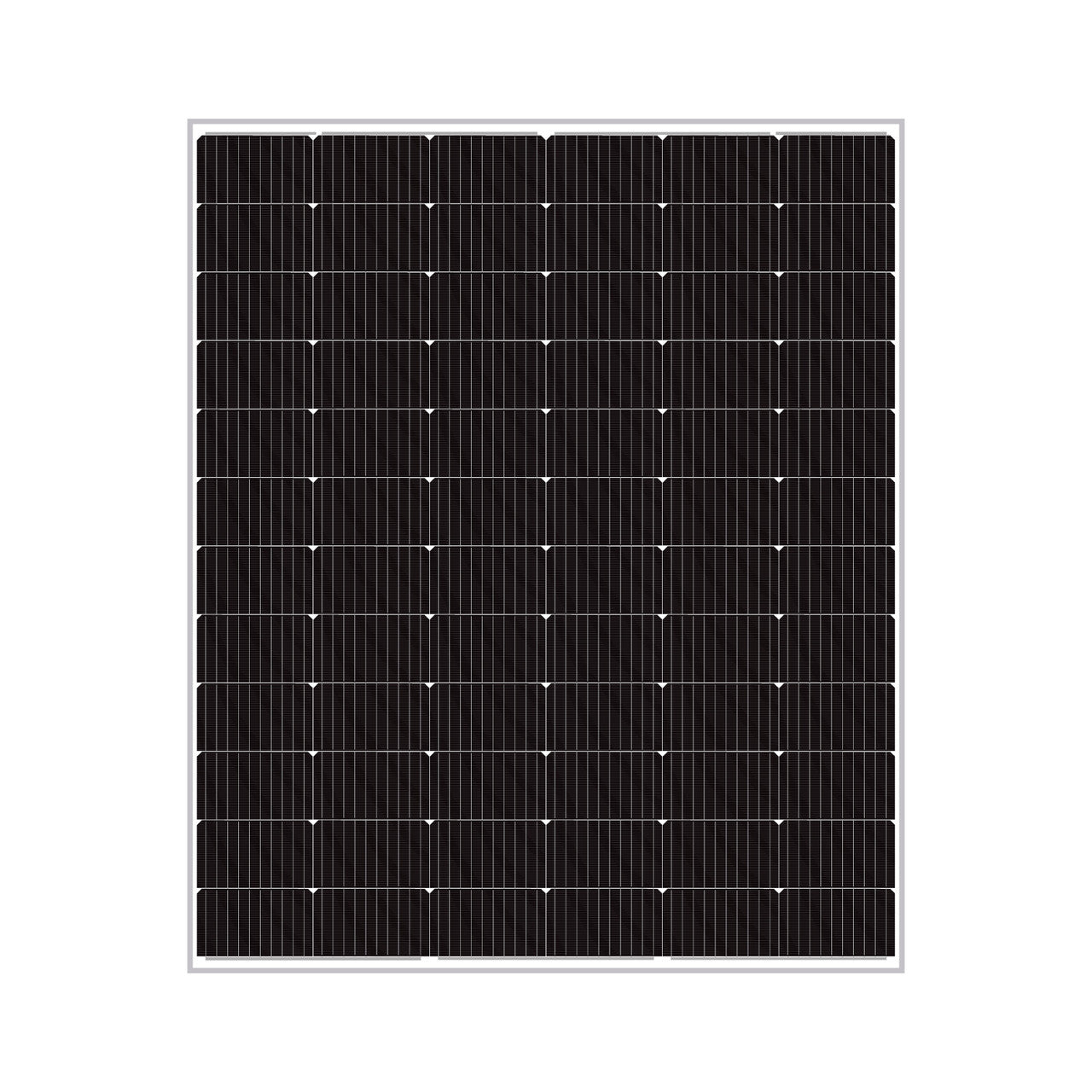

Smart Solar Technologies SS560M10H-24/TH 560W Monofacial Half-Cut TOPCon N-Type Solar Panel
Model SS560M10H-24/TH | TOPCon Monofacial | 144 Half-Cell N-Type | Monofacial | 1500V System Voltage
Product Overview
The Smart Solar Technologies SS560M10H-24/TH 560W Monofacial Half-Cut TOPCon N-Type Solar Panel delivers exceptional energy performance for modern solar installations. This advanced monofacial module utilizes cutting-edge TOPCon technology with 144 high-efficiency N-type cells arranged in a 12x12 configuration. The half-cut cell design significantly reduces internal resistance while improving current collection efficiency. Built with 16BB SMBB technology, this panel ensures superior light trapping and enhanced power output even under challenging environmental conditions. Its robust construction features anodized aluminum framing and 3.2mm tempered glass for maximum durability against extreme weather loads. The panel achieves a remarkable module efficiency of 87.4% with a guaranteed power output of 560 watts at standard test conditions. Ideal for both residential and commercial applications, this solar panel offers long-term reliability with a 12-year product warranty and 30-year linear performance guarantee. The IP68-rated junction box provides outstanding waterproof protection against harsh environments including high salt mist and ammonia exposure.
Key Benefits
High Power Output: Generates 560 watts of peak power with superior efficiency for maximum energy generation per square meter.
TOPCon Technology: Advanced N-type cells with tunnel oxide passivated contact technology ensure lower degradation and higher efficiency over time.
Half-Cut Cell Design: Reduces internal resistance by 50% while improving current collection and power output under partial shading conditions.
Environmental Durability: Certified to withstand extreme wind loads of 2400 Pascal and snow loads of 5400 Pascal with high salt mist resistance.
Long-Term Warranty: Includes 12-year product warranty and 30-year linear performance warranty guaranteeing 87.4% power output retention.
How It Works
This Smart Solar Technologies panel converts sunlight into electricity through its advanced N-type TOPCon cell architecture. When photons strike the 144 half-cut cells, they generate direct current electricity that flows through the 16BB SMBB busbar system. The tunnel oxide passivated contact layer minimizes electron recombination while maximizing voltage output. This design ensures superior light trapping and current collection efficiency even under low-light conditions or partial shading. The monofacial configuration captures solar energy from the front surface only, optimizing the cell arrangement for maximum power density. The anodized aluminum frame provides structural integrity while the tempered glass protects cells from environmental damage. The IP68-rated junction box safely manages the electrical output with waterproof protection against harsh weather conditions including high humidity and salt exposure.
Photon Absorption: Sunlight photons strike the N-type silicon cells, exciting electrons to create direct current electricity. The half-cut design reduces resistance while improving electron flow efficiency.
Electron Collection: The 16BB SMBB busbar system efficiently collects generated electrons from all 144 cells. The tunnel oxide layer minimizes recombination losses for maximum voltage output.
Power Management: Generated DC electricity flows through the IP68-rated junction box with waterproof protection. The 1500V maximum system voltage enables efficient grid integration with minimal losses.
Technical Specifications
| Rated Power (Pmpp) | 560W |
| Rated Current (Impp) | 13.41A |
| Rated Voltage (Vmpp) | 41.77V |
| Short Circuit Current (Isc) | 14.23A |
| Open Circuit Voltage (Voc) | 50.47V |
| Module Efficiency | 87.4% |
| Cell Type | 182x91mm N-Type Mono |
| Number of Cells | 144 (12x12) |
| Dimensions (L × W × H) | 2278mm × 1134mm × 30mm |
| Weight | 28.40kg |
| Front Glass | 3.2mm High Transmission Tempered |
| Frame Material | Anodized Aluminium Alloy |
| Junction Box Rating | IP68 Waterproof |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 25A |
| Operating Temperature | -40°C to +85°C |
| Front Static Loading | 5400Pa |
| Rear Static Loading | 2400Pa |
| Power Temperature Coefficient | -0.300%/°C |
| Voltage Temperature Coefficient | -0.250%/°C |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, PID Resistant, Enhanced Mechanical Load Certified
Inverter Compatibility: Compatible with all standard PV inverters operating within 1500V DC system voltage
Environmental: High Salt Mist Resistance, Ammonia Resistance, Extreme Weather Load Certified (2400Pa Wind, 5400Pa Snow)
Warranty: 12-Year Product Warranty, 30-Year Linear Performance Warranty (87.4% power output retention), 100% Power Guarantee
