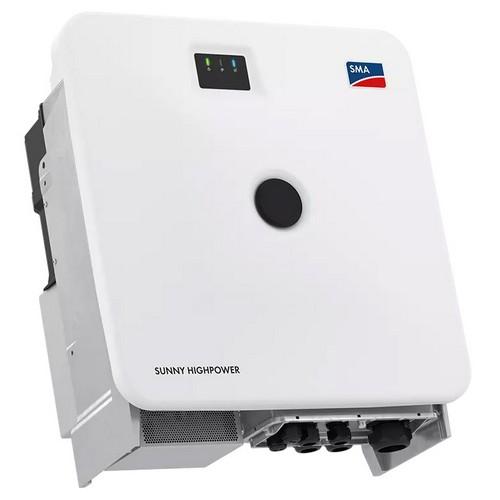

SMA Sunny Highpower PEAK3 172-US-21
Utility-Scale String Inverter | 1500 VDC System
Product Overview
The SMA Sunny Highpower PEAK3 172-US-21 delivers industry-leading efficiency for utility-scale solar installations. With high power density and compact rack-mount design, this inverter is ideal for large DG and small utility applications while maximizing your system's performance.
Key Benefits
Compact, rack-mount design for large DG & small utility applications
Easy setup with SMA Data Manager M and Sunny Portal (ennexOS)
Type 4X enclosure and active cooling for harsh environments
Proactive monitoring reduces O&M overhead
Technical Specifications
| Model Number | SHP 172-US-21 (3-172-1500-2-21) |
| Power Output | 172 kVA @ 660 VAC |
| DC Input | 1500 VDC, 1× MPPT (941–1500 VDC) |
| Peak Efficiency | 99.0% CEC |
| Enclosure | Type 4X (Outdoor) |
| Cooling | OptiCool (forced-convection) |
| Dimensions (W×H×D) | 30.3" × 32.7" × 18.2" |
| Weight | 218 lb |
✓ Certifications & Warranty
Certifications: UL 62109, UL 1741-SB, IEEE 1547-2018, FCC Part 15 Class A
Warranty: 5-year standard, extendable up to 25 years
