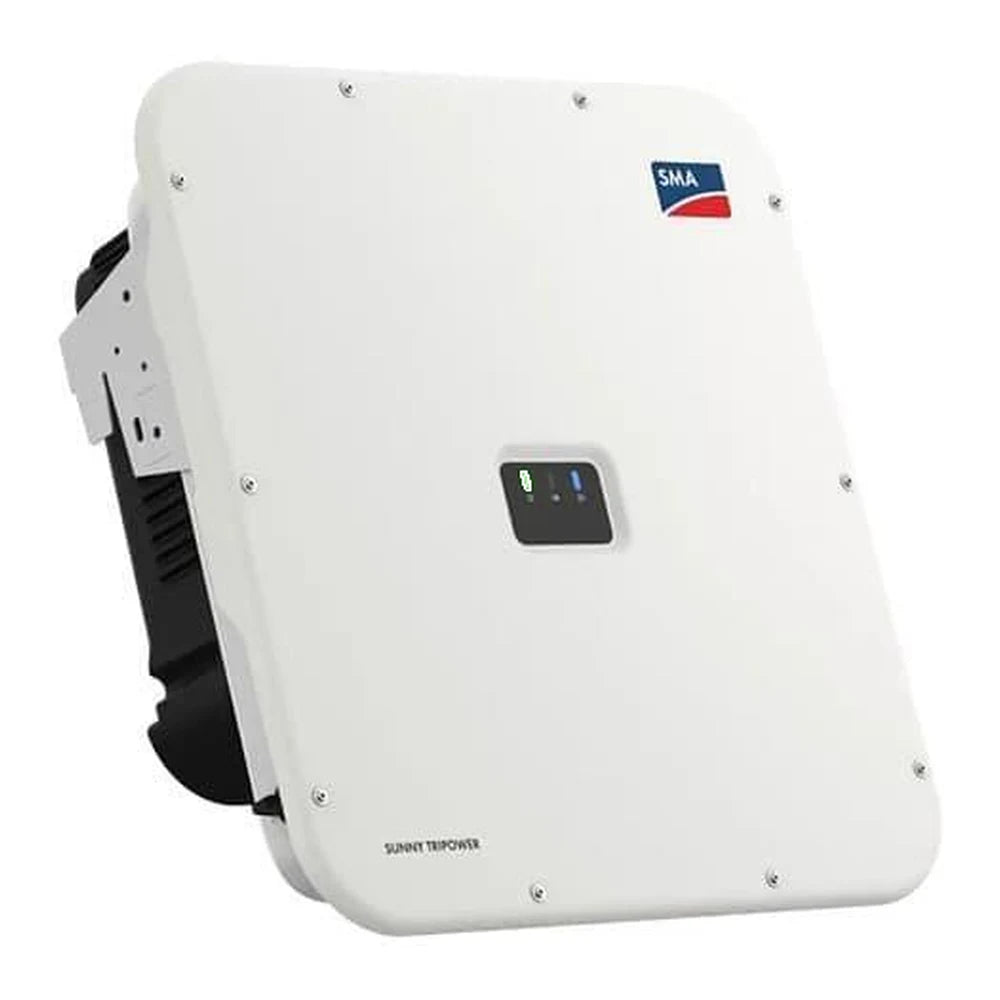

SMA Sunny Tripower X 30-US Three Phase Inverter
Model 03-30-1000-2-50 | 30 kW | 480 VAC 3-Phase | 1000 Vdc
Product Overview
The SMA Sunny Tripower X 30-US is a cutting-edge 30 kW three-phase string inverter engineered for commercial and light industrial PV installations. Featuring high efficiency, smart monitoring capabilities and flexible system integration, this inverter delivers superior grid stability and energy harvest. With a compact design and integrated SMA Data Manager functionality, it is the ideal solution for modern solar energy management.
Key Benefits
Integrated System Manager: Includes built-in SMA Data Manager M functionality for system monitoring and control without additional hardware requirements.
High Conversion Efficiency: Achieves up to 98.4% efficiency with precise MPPT tracking across four independent channels for maximum solar yield.
Smart Three-Phase Design: Delivers balanced power distribution at 480 VAC with 1000 VDC input capability for large arrays and commercial systems.
Enhanced Safety and Durability: Features integrated Type II SPDs, arc-fault protection and NEMA 4X (IP65) enclosure for secure outdoor operation in harsh conditions.
Easy Installation and Service: Lightweight and compact design simplifies mounting and wiring; SMA Smart Connected service offers automatic fault notifications and proactive support.
How It Works
The SMA Sunny Tripower X 30-US converts DC power from solar panels into grid-compatible AC power. Four MPPT channels optimize string performance under partial shade or uneven irradiance. Built-in data logging and connectivity allow real-time system management through Sunny Portal and SMA Energy App.
DC to AC Conversion: Efficiently converts solar DC power to grid-compatible 480 VAC three-phase power with minimal losses.
Quad MPPT Optimization: Four independent trackers optimize string performance under varying conditions including partial shade and uneven irradiance.
Real-Time Management: Built-in data logging and connectivity enable real-time system management through Sunny Portal and SMA Energy App.
Technical Specifications
| Manufacturer | SMA America |
| Model Number | 03-30-1000-2-50 (Sunny Tripower X 30 US) |
| AC Nominal Power | 30 kW |
| Nominal AC Voltage | 480 VAC, 3-Phase |
| AC Output Current (Max) | 36 A |
| Maximum DC Voltage | 1000 VDC |
| MPPT Voltage Range | 350–940 VDC |
| Number of MPP Trackers | 4 |
| Maximum Efficiency | 98.4% |
| Cooling | Active Cooling with Integrated Fans |
| Enclosure Rating | NEMA 4X / IP65 |
| Operating Temperature | -25°C to +60°C (-13°F to 140°F) |
| Communication Interfaces | Ethernet, RS485, Modbus TCP, Wi-Fi (optional) |
| Dimensions (L × W × H) | 30 × 25 × 11 in (762 × 635 × 279 mm) |
| Weight | ≈ 99 lb (45 kg) |
Certifications & Warranty
Protection: Type II SPDs, Arc-Fault Protection, Integrated DC Disconnects
Enclosure: NEMA 4X / IP65 Rated
Warranty: See manufacturer warranty documentation
