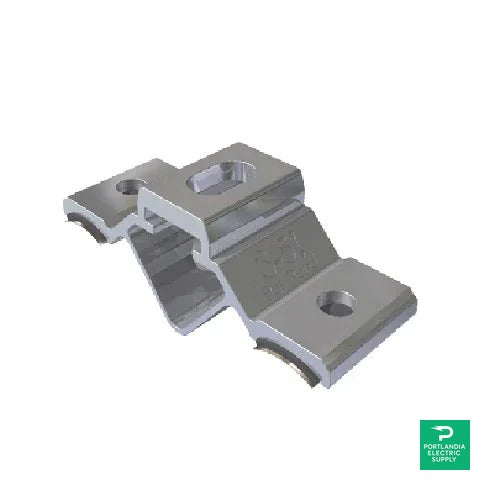

Mini Metal Roof Mounting Bracket - S-5! Corrubracket 100T

S-5! S-5! Corrubracket 100T

The S-5! CorruBracket 100T PV offers a robust solution for corrugated roofing profiles prevalent in North America, specifically designed for 7/8" and 3/4" tall with a crest-to-crest width of 2.67 inches. This innovative mounting bracket not only streamlines solar installations but also enhances flexibility and waterproofing capabilities, ensuring a reliable attachment for your solar panels. With factory-applied EPDM and lightweight materials, the CorruBracket 100T PV simplifies setups while maximizing performance.

Product Features

Efficient Wire Management

The open channel design of the CorruBracket 100T PV allows for effective wire containment and management, ensuring a neat and organized installation for your solar system. This practical feature helps maintain a tidy appearance while enhancing installation efficiency.

Optimal Height Adjustment

With the bracket elevating the glass over 4 inches above the valley of the corrugation, solar panel attachment becomes straightforward. This added height increases airflow and protects the panels from potential water accumulation, optimizing both performance and reliability.

Flexible Installation Options

CorruBracket 100T PV is designed for secure attachment to sheeting, allowing users to position solar modules virtually anywhere on the roof. This flexibility fosters custom layouts tailored to specific solar needs, accommodating a variety of installation preferences.

Adjustable Features for Perfect Fit

This mounting bracket includes a slotted top hole that offers over an inch of adjustability. This function ensures precise aligning during installation, facilitating a secure and optimal fit for all solar panel configurations.

Durability and Compatibility

Constructed with 6000 series aluminum and paired with 300 series stainless steel hardware, the CorruBracket 100T PV boasts robust durability. It is compatible with PVKIT 2.0, providing a complete mounting solution that is both cost-effective and easy to use.

How It Works

The CorruBracket 100T PV operates by utilizing its innovative features to securely attach solar panels to corrugated roofs. The installation process is simplified due to its lightweight design and factory-installed EPDM gasket, which ensures weathertightness without the need for messy onsite sealants.

Factory-Applied EPDM Gasket

This product comes with a factory-applied EPDM rubber seal, providing reliable waterproofing and eliminating the need for additional sealing materials. This ensures that installations are clean and efficient, reducing the risk of leaks over the lifespan of the roof.

Advanced Load Management

The uniquely designed S-5! patented "V" configuration of the bracket prevents over-compression of the ribs under load. This intelligent design feature helps to preserve the integrity of the roofing material while ensuring a robust support system for solar panels.

Example Applications for Versatile Use

The CorruBracket 100T PV is incredibly versatile, accommodating nearly any attachment needed on common corrugated metal roofing profiles. Its ease of installation makes it the ideal choice for various solar configurations and applications.
