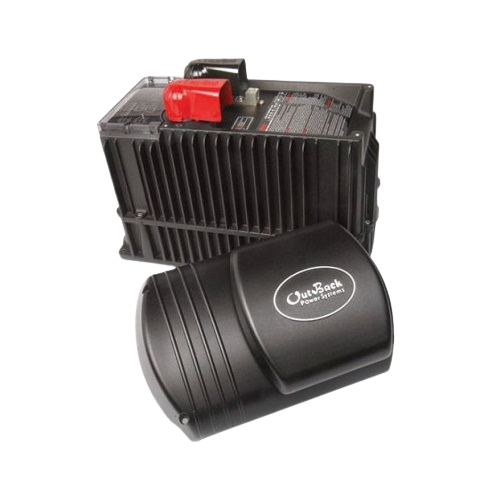

The OutBack Power FXR3048A-01 is a 3.0kW battery-based inverter/charger for 48VDC systems — Sealed FXR-series platform delivering pure sine power for off-grid and grid-interactive applications (120VAC).
Key Features
- 3.0kW continuous pure sine wave output from a 48VDC battery bank
- Sealed chassis built for demanding environments
- Grid-interactive and off-grid capable — sell-back, backup, or standalone operation
- Integrated battery charger with programmable multi-stage charging for flooded, AGM, and lithium
- Built-in AC transfer switching for seamless source changes
- System configuration and monitoring via MATE3s and OPTICS RE
- Stackable for higher power or split/three-phase configurations
Specifications
| Model | FXR3048A-01 |
| Continuous Output | 3.0kW |
| Battery Voltage | 48VDC |
| AC Output | 120VAC |
| Chassis | Sealed |
| Waveform | Pure sine wave |
| Monitoring | MATE3s / OPTICS RE compatible |
| Warranty | Standard 5-year OutBack warranty (extendable) |
Authorized OutBack Power distribution — full manufacturer warranty. Ships via ground; pre-wired power centers and battery systems ship LTL freight.
| Manufacturer | OutBack Power |
|---|---|
| Height | |
| Length | |
| Width |
No documents available for this product. Contact us to request documentation.
