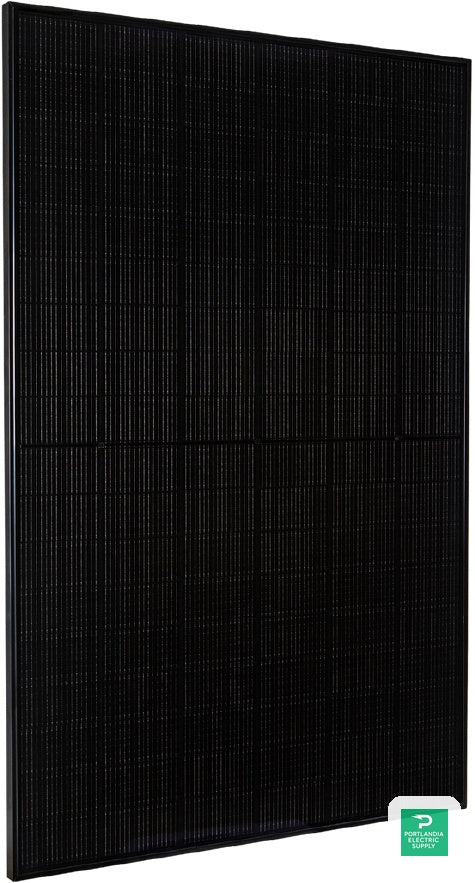

The Mission Solar MSX10-435HN0B is a 435W all-black N-Type 108HC module designed and manufactured in San Antonio, Texas — high-density interconnect technology, sleek full-black aesthetics, and one of the strongest warranty packages in the industry.
Key Features
- 435W nameplate at 22.3% module efficiency
- N-Type i-TOPCon half-cut cells with high-density interconnects — up to 23% efficiency across the series
- American-made: designed and assembled in San Antonio, Texas with domestic content
- Full-black frame, backsheet, and cells for clean rooftop aesthetics
- Rated for 5,400 Pa front / 2,400 Pa rear mechanical load — built for harsh weather
- Low degradation: 1% year one, 0.45% annually — 86%+ output guaranteed at year 30
- 25-year workmanship warranty and 30-year linear power performance warranty
Compatibility: Staubli MC4 / MC4-EVO2 connectors, 1,500V systems; residential and commercial rooftops; 28–30 modules per pallet
Specifications
| Model | MSX10-435HN0B (N-Type 108HC) |
| Rated Power (Pmax) | 435 W (0 to +3% tolerance) |
| Module Efficiency | 22.3% |
| Cell Type | N-type i-TOPCon monocrystalline, 108 half-cells |
| Open Circuit Voltage (Voc) | 39.56 V |
| Max Power Voltage (Vmp) | 33.31 V |
| Short Circuit Current (Isc) | 13.79 A |
| Max Power Current (Imp) | 13.07 A |
| Temp Coefficient (Pmax) | -0.29 %/°C |
| Max System Voltage | 1,500 V DC |
| Mechanical Load | 5,400 Pa front / 2,400 Pa rear |
| Dimensions | 1722 × 1134 × 35 mm (67.8 × 44.65 × 1.38 in) |
| Weight | 46.96 lb (21.3 kg) |
| Frame | Black anodized aluminum, 35 mm |
| Connectors | Staubli MC4 / MC4-EVO2 |
| Origin | Made in USA (San Antonio, TX) |
| Warranty | 25-yr workmanship / 30-yr performance |
| Part Number | PES-SPS-SOL-12827 |
Authorized Mission Solar distribution — full manufacturer warranty. Panels ship palletized via LTL freight; freight quote confirmed within 1 business day.
