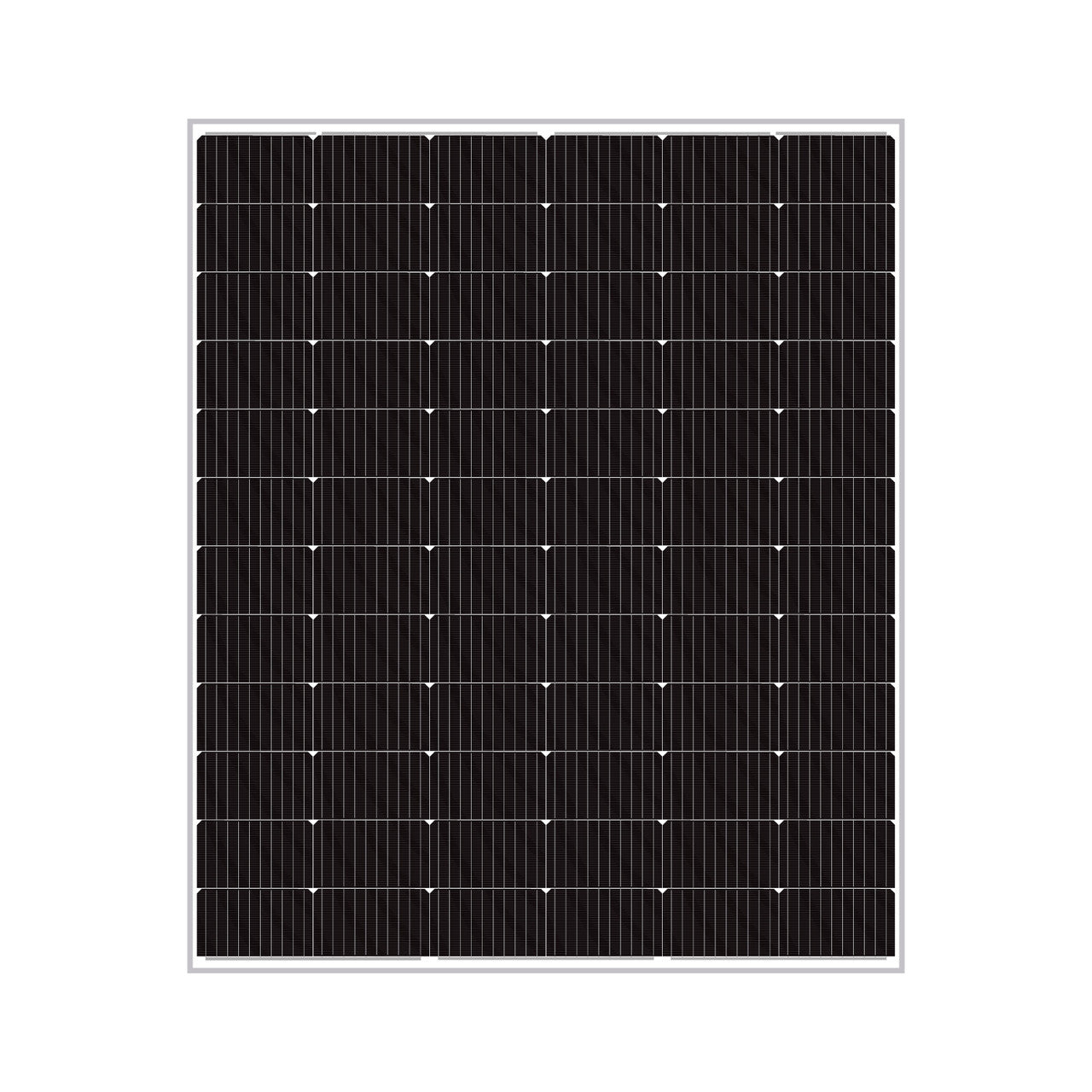

München Energieprodukte MSMDxxxM6-PMB5 380–415W Shingled Monofacial Solar Panel
Model MSMDxxxM6-PMB5 | Shingled Technology | 340 Cells | Monofacial | DC1500/1000 System Voltage
Product Overview
The München Energieprodukte MSMDxxxM6-PMB5 is a shingled monofacial solar panel designed for reliable rooftop and commercial power generation. It combines a high-density cell layout with a clean all-black appearance. This structure supports efficient energy capture while keeping the module visually refined. The series covers 380W to 415W output, making it suitable for projects that value strong performance and premium aesthetics. Its low-temperature adhesive bonding and parallel circuit design help improve stability under real-world conditions.
Key Benefits
Shingled Technology: The overlapping cell arrangement supports a compact structure and efficient power delivery.
Beautiful Appearance: The 60SBF uniform layout creates a clean, modern look for visible installations.
Superior Safety and Reliability: No hidden welding crack risk is noted, and operating temperatures stay lower.
Low System Cost: Higher module efficiency can reduce balance-of-system costs across the project.
Low Hot Spot Risk: Parallel circuit design helps reduce shading-related stress on the module.
Eco-Friendly Design: The module follows a green philosophy with no fluorine and low lead content.
How It Works
This shingled solar panel uses overlapping monocrystalline cells to reduce inactive space and raise active area utilization. The electrical path is arranged in parallel circuits, which improves resilience when partial shading occurs. Low-temperature adhesive bonding helps hold the structure together while supporting stable operation. The design also helps lower hotspot formation, because shaded sections have less impact on the entire module string. Together, these features support consistent output, strong aesthetics, and dependable long-term performance.
Shingled Cell Layout: Cells are arranged with overlap to maximize packing density and improve energy capture. This structure also contributes to the module’s refined appearance.
Parallel Circuit Design: Current flows through multiple paths rather than a single long chain. This helps reduce losses from shading and supports better power stability.
Low-Temperature Adhesive Bonding: The bonding process helps connect the structure securely with reduced thermal stress. This supports reliability and can help preserve module integrity over time.
Technical Specifications
| Model Type | MSMDxxxM6-PMB5 |
| Power Range | 380W to 415W |
| Maximum Power | 415W |
| Module Efficiency | Up to 21.1% |
| Cell Technology | Shingled monocrystalline silicon |
| Cell Orientation | 340 cells (34 × 10) |
| Dimensions | 1719 × 1140 × 30 mm |
| Weight | 21.0 kg |
| Glass | 3.2 mm toughened glass |
| Frame | Anodic alumina profile |
| Junction Box | IP68, 2 diodes |
| Cable | 1200 mm long, 4 mm² cross section, customizable |
| Packaging | 36 pcs/box; 936 pcs/40’ cabinet; 1368 pcs/truck |
| NMOT | 42.30 °C (±2°C) |
| Temperature Coefficient of Voc | -0.27%/°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Maximum System Voltage | DC1500/1000 (IEC) |
| Module Type | TH***PMB5-60SBF |
| STC Test Conditions | 1000 W/m², AM1.5, 25°C |
| NMOT Test Conditions | 800 W/m², 1 m/s wind, 20°C |
| Power Tolerance | 0 to +5 W |
Certifications & Compliance
Certifications: IEC61215, IEC61730, IEC62804, IEC61701, IEC62716, IEC60068-2-68
Quality Systems: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, ISO 50001:2011, IEC TS 62941:2016
Environmental: Low lead content and fluorine-free construction
Warranty: 15-year materials warranty and 25-year linear power output warranty, with 1st-year degradation below 2% and annual degradation of 0.55%
