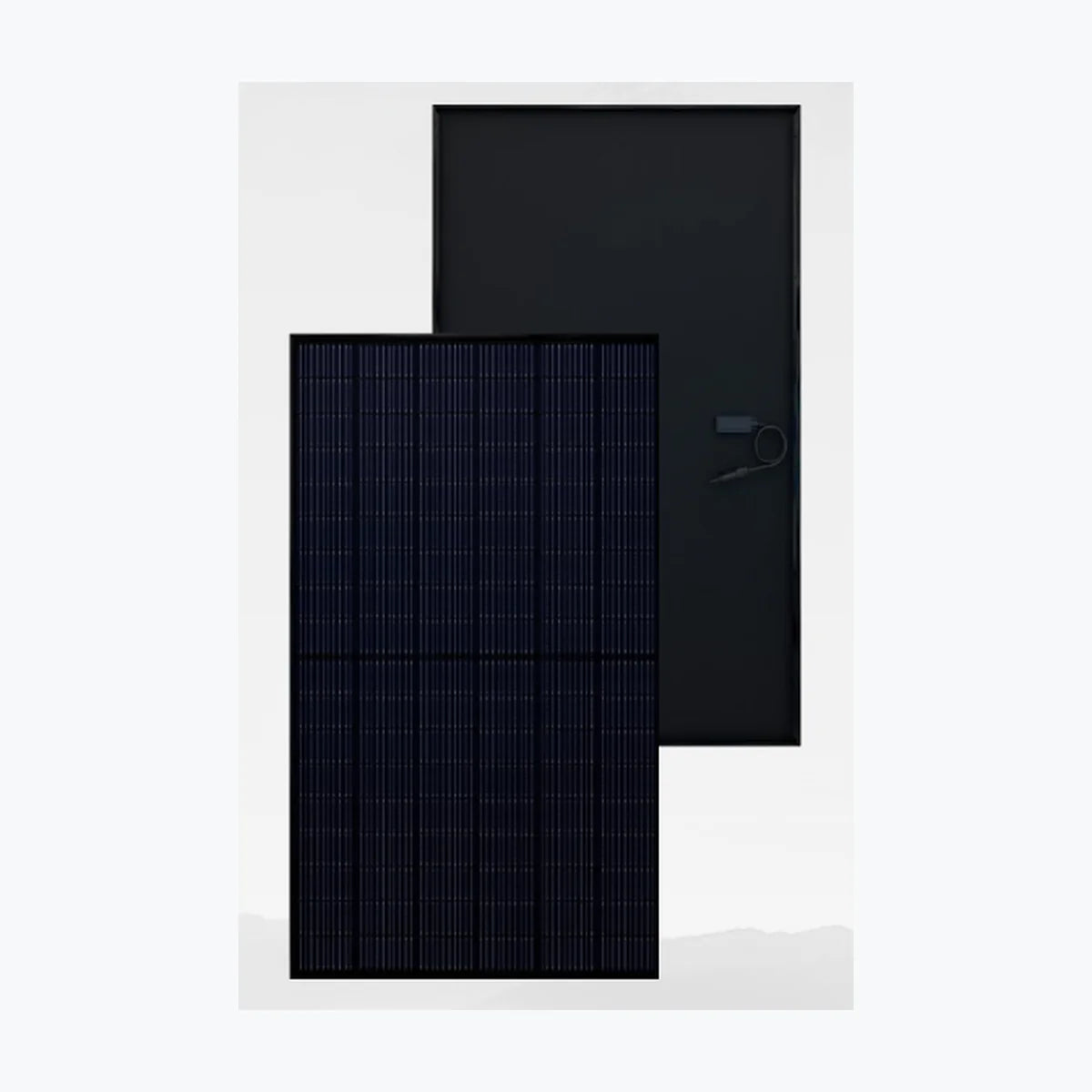

Lu'an Solar JKL108-B-445NH
PayPal Pay in 4 interest-free payments of $39.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-11775
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JKL108-B-445NH Product Warranty 15 Years Power Warranty 20 Years of 91.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 445 Wp Voltage at Maximum Power (Vmpp) 32.9 V Current at Maximum Power (Impp) 13.51 A Open Circuit Voltage (Voc) 39.5 V Short Circuit Current (Isc) 14.22 A Panel Efficiency 25.4 % Maximum Power (Pmax) 336 Wp Voltage at Maximum Power (Vmpp) 31.03 V Current at Maximum Power (Impp) 10.83 A Open Circuit Voltage (Voc) 37.55 V Short Circuit Current (Isc) 11.3 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 22 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 J
Technology: TOPCon, N-type
Power Range: 425 ~ 445 Wp
Panel Efficiency: 24.76 ~ 25.4 %
Weight: 22 kg
Seller Name: Shanxi Lu'an Photovoltaics Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-11775 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
