- SKU
- PES-SPS-SOL-9735
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.

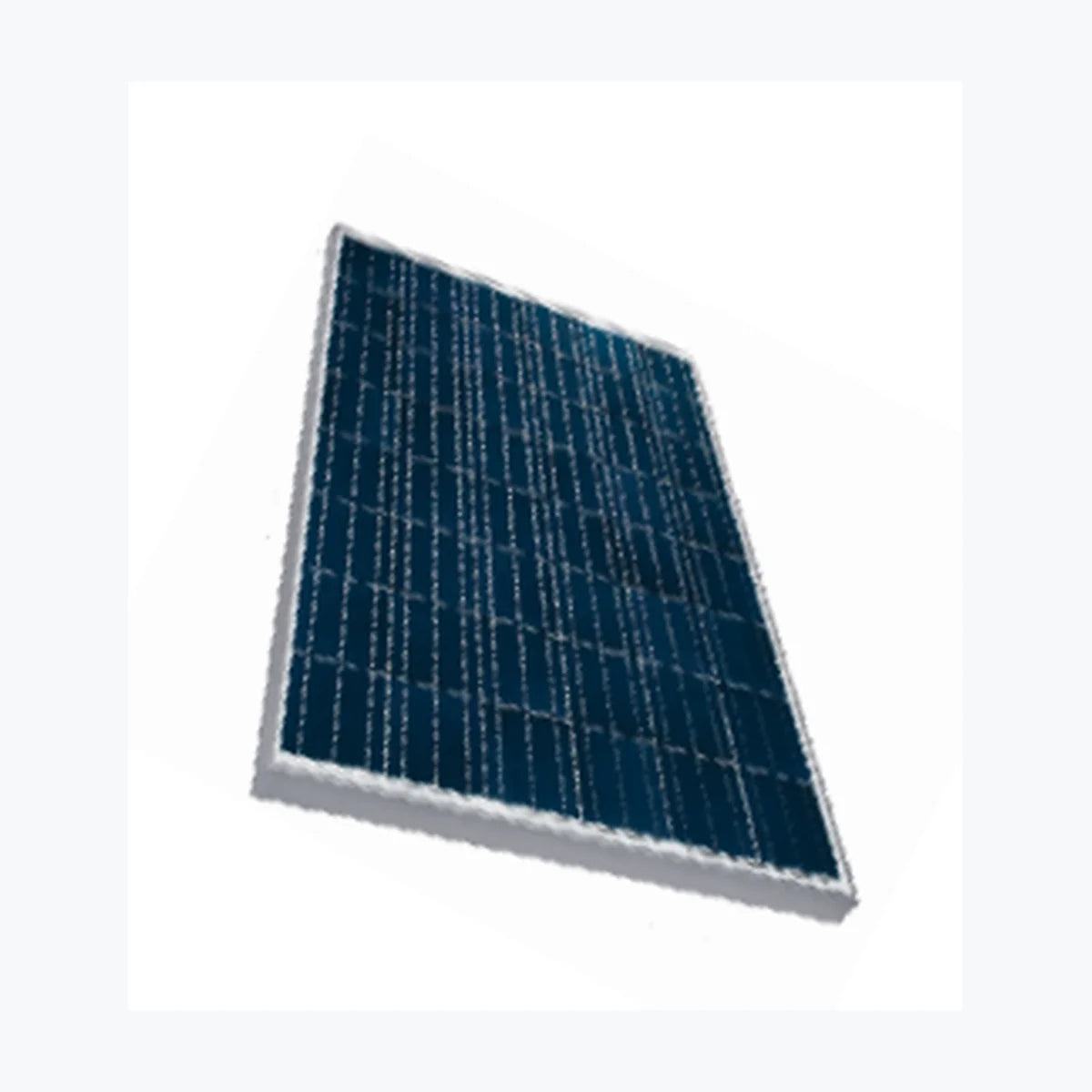

Type Polycrystalline Model No. 220P Product Warranty 10 Years Power Warranty 25 Years of 81.4 % Total Degradation Rate ⏳ 0.74 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 220 Wp Voltage at Maximum Power (Vmpp) 26.2 V Current at Maximum Power (Impp) 8.4 A Open Circuit Voltage (Voc) 31.23 V Short Circuit Current (Isc) 9.23 A Panel Efficiency 16.75 % Maximum Power (Pmax) 160 Wp Voltage at Maximum Power (Vmpp) 23.3 V Current at Maximum Power (Impp) 6.86 A Open Circuit Voltage (Voc) 28.8 V Short Circuit Current (Isc) 7.63 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.45 %/°C Temperature Coefficient of Voc -0.32 %/°C Temperature Coefficient of Isc 0.06 %/°C Series Fuse Rating 15 A Panel Dimension (H/W/D) 1324x992x35 mm Weight 15.4 kg Cell Number 48 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Connector Type MC4 Cable Length 900 mm Download Manufacturer's PDF Datasheet
Power Range: 200 ~ 225 Wp
Panel Efficiency: 15.23 ~ 17.13 %
Weight: 15.4 kg
Seller Name: Yixing JS Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-9735 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
