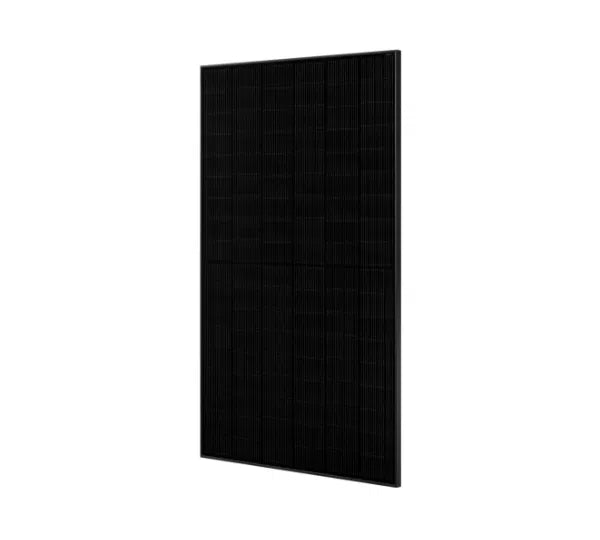

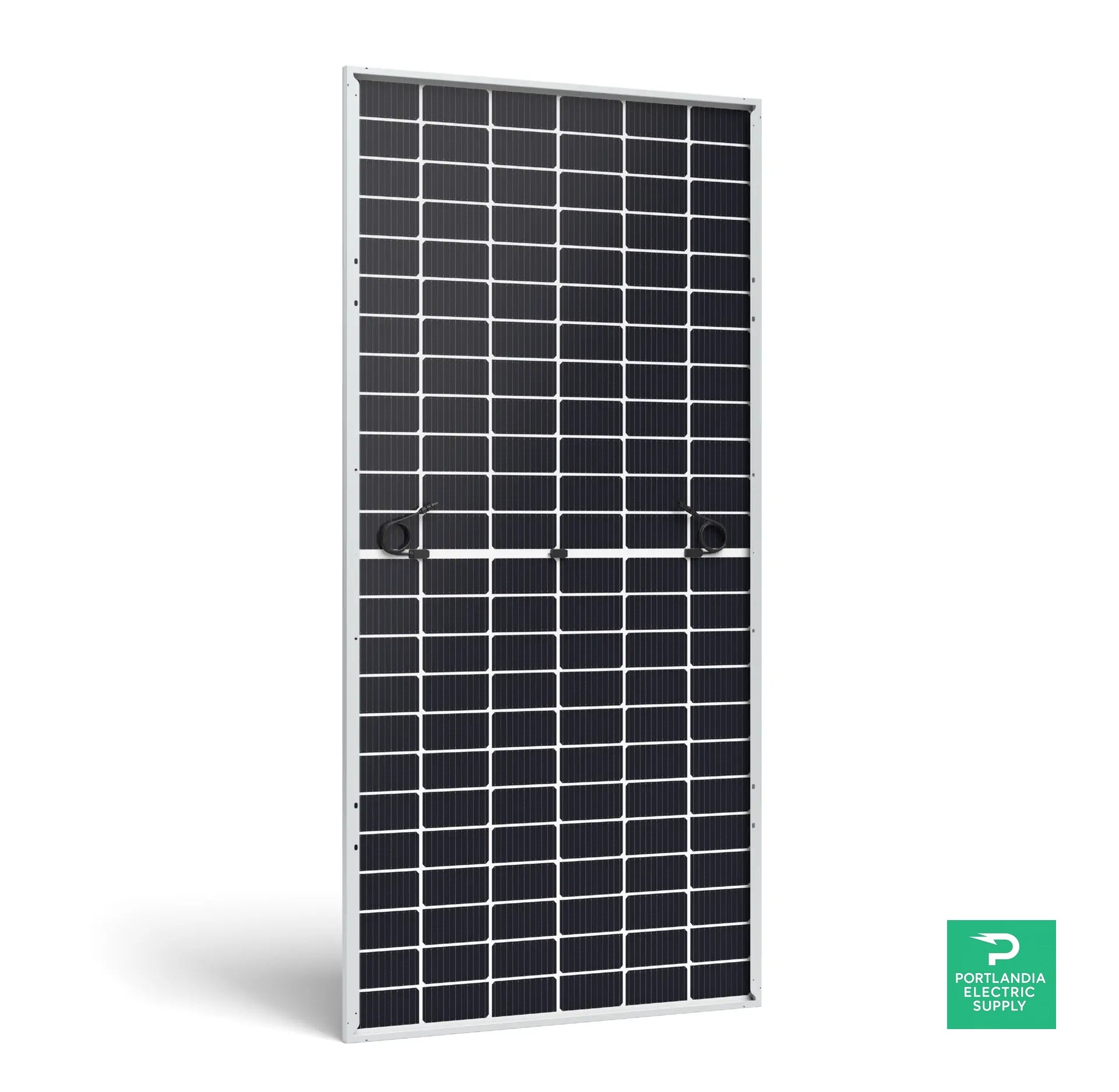

The JA Solar JAM54D41-455/LB (DEEP BLUE 4.0) is a 455W n-type TOPCon bifacial double-glass module — high efficiency, low degradation, and strong rear-side gain for residential, commercial, and ground-mount projects.
Key Features
- 455W nameplate with up to 22.8% module efficiency
- N-type TOPCon cell technology — lower degradation and higher lifetime yield than P-type PERC
- Bifacial double-glass construction — rear-side gain with 80% ±10% bifaciality factor
- 108 half-cut M10 (182mm) cells with multi-busbar design for better low-light response
- 1.6mm + 1.6mm dual tempered glass — improved fire, moisture, and PID resistance
- 1,500V DC max system voltage for longer strings and lower BOS cost
- 25-year product warranty and 30-year linear performance warranty (87.4% at year 30)
Compatibility: Standard MC4-EVO2 connectors; works with all major string inverters and optimizers; 36 modules per pallet
Specifications
| Model | JAM54D41-455/LB (DEEP BLUE 4.0) |
| Rated Power (Pmax) | 455 W |
| Module Efficiency | 22.8% |
| Cell Type | N-type TOPCon monocrystalline, 108 half-cells |
| Open Circuit Voltage (Voc) | 39.50 V |
| Max Power Voltage (Vmp) | 33.00 V |
| Short Circuit Current (Isc) | 14.56 A |
| Max Power Current (Imp) | 13.79 A |
| Temp Coefficient (Pmax) | -0.290 %/°C |
| Max System Voltage | 1,500 V DC |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 22.0 kg (48.5 lb) |
| Connectors | MC4-EVO2, 1,200 mm leads |
| Modules per Pallet | 36 |
| Warranty | 25-yr product / 30-yr linear performance |
| Part Number | PES-SPS-SOL-9273 |
Authorized JA Solar distribution — full manufacturer warranty. Panels ship palletized via LTL freight; freight quote confirmed within 1 business day.
| SKU | PES-SPS-SOL-9273 |
|---|---|
| Manufacturer | PES Supply |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
