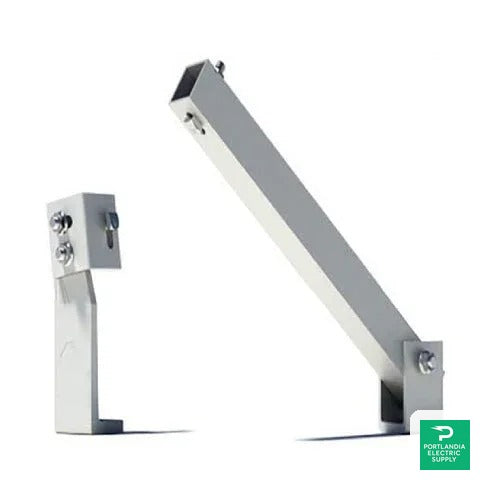

IronRidge Fixed Tilt Leg Kit - TM-FTL-015

Ironridge TM-FTL-015

The IronRidge Fixed Tilt Leg Kit TM-FTL-015 is designed to provide dependable support for solar modules, enabling optimal tilting angles while withstanding harsh weather conditions. This kit is made for durability and ease of installation, ensuring your solar setup remains secure and efficient throughout its life. Featuring various lengths tailored to your needs, this kit exemplifies reliability and performance in solar mounting systems.

Product Features

Versatile Angle Adjustment

This Fixed Tilt Leg Kit includes XR Rails Tilt Legs that allow for an adjustable tilt angle of up to 30 degrees. This feature guarantees that solar panels can be positioned for maximum solar exposure throughout the day, enhancing energy capture.

Robust Structural Build

The materials used in the TM-FTL-015 kit are meticulously engineered to resist corrosion, featuring aluminum and stainless steel construction. This ensures the components withstand extreme wind and snow loads, providing long-lasting stability and reliability.

Clear and Black Anodized Finishes

Available in clear and black anodized finishes, the tilt legs not only offer protection against wear but also enhance aesthetic appeal. Users can select a finish that complements their specific application while maintaining functionality.

Integrated Grounding System

This tilt leg kit features an integrated grounding system in accordance with UL 2703 standards. This eliminates the need for separate grounding components, simplifying installation and ensuring safety through reliable electrical bonding.

Comprehensive Component Kit

The TM-FTL-015 comes with all necessary hardware and components, including end clamps, mid clamps, and grounding lugs. These accessories facilitate a smooth installation process, making it easy for users to securely mount solar modules without additional purchases.

How It Works

The IronRidge Fixed Tilt Leg Kit operates by utilizing its carefully engineered components designed for optimal solar module placement. Each assembly seamlessly integrates into the rail system, providing a straightforward installation experience while ensuring robust performance.

XR Rails Tilt Legs

The XR Rails attach directly to the tilt legs, supporting the specified angles up to 30 degrees. They are built to withstand specific wind and snow loads, ensuring safety and durability throughout the lifetime of the solar installation.

End Clamps and Grounding

Utilizing slide-in clamps, users can quickly secure modules at the ends of rails, while grounding components connect seamlessly. This also facilitates handling and installation without the need for complex tools or drilling.

Support Accessories

The kit includes various accessories such as internal splices, end caps, and wire clips. These elements serve to streamline the installation process while keeping electrical wires organized and protected from potential debris.

Specifications
