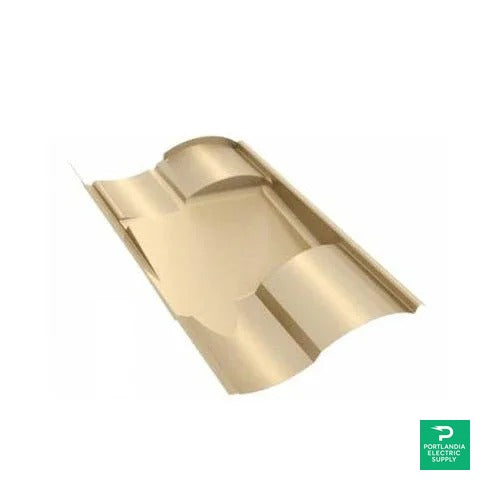

Ironridge KO Tan S Tile Flashing Tile Replacement 'S' Flashing - KOF-S01-T1

Ironridge KOF-S01-T1 S Tile Flashing Replacement Solution

The Ironridge KOF-S01-T1 is an innovative tile replacement flashing designed to streamline solar installations on tile roofs. This efficient solution not only simplifies the installation process but also enhances waterproofing to ensure long-lasting performance. With it, you can eliminate common challenges such as tile grinding and component alignment, making your solar install experience easier and quicker than ever before.

Product Features

Form-Fit Waterproofing

The Ironridge KOF-S01-T1 utilizes a unique compression seal technology that effectively keeps water at bay. This feature integrates the flashing, gasket, and open-slotted L-foot with just a single strike of a hammer, creating a robust waterproof seal that ensures peace of mind during harsh weather conditions.

Versatile Flashing Options

This product offers a compact Pedestal Base that works seamlessly along rafters in any orientation. Additionally, the Knockout Tile deck flashing serves as an optional upgrade for extra water protection, catering to various installation needs.

Superior Loading Capacity

Engineered for strength, the Ironridge KOF-S01-T1 boasts minimal offset between the lag bolt and L-foot. This design significantly increases structural integrity, allowing for higher loading capacities and reduced penetrations, thereby enhancing the overall durability of the roof system.

Easy Installation Process

Installation is straightforward with the Knockout Tile system. Users can easily punch through the flashing in designated zones, ensuring a quick and hassle-free setup. The design also allows for flexible orientation to meet specific installation requirements.

Comprehensive 25-Year Warranty

When paired with XR Rail, the Ironridge KOF-S01-T1 benefits from IronRidge's extensive 25-year warranty. This commitment to quality and reliability assures users of the product's long-term performance and protection.

How It Works

The Ironridge KOF-S01-T1 operates by utilizing a few key components that work together to provide a reliable installation method. Each part is designed with precision to ensure an optimal fit and functionality.

Pedestal Base

The sturdy Pedestal Base serves as the main anchor for the installation, allowing for easy attachment to the roof rafters. It is engineered to work with various roofing conditions, providing unmatched flexibility in its application.

Tile Replacement Flashing

The flashing component of the KOF-S01-T1 is pivotal in building a watertight seal. It is designed to integrate perfectly with the Pedestal and L-foot for maximum efficiency and effectiveness in waterproofing.

L-Foot Assembly

The L-foot assembly is responsible for supporting the solar panel rails and ensuring solid anchoring. Its unique design allows for a secure connection to the flashing and base, contributing significantly to the overall stability of the installation.

Specifications
