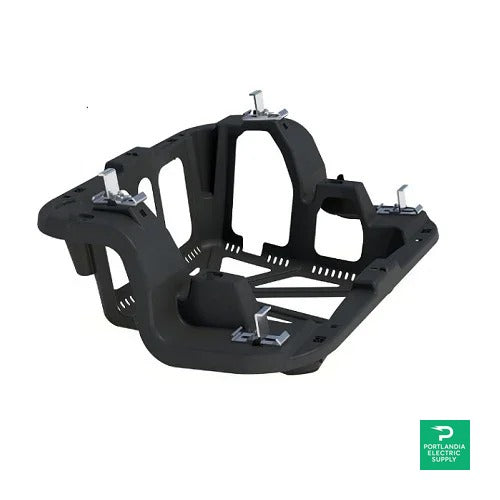

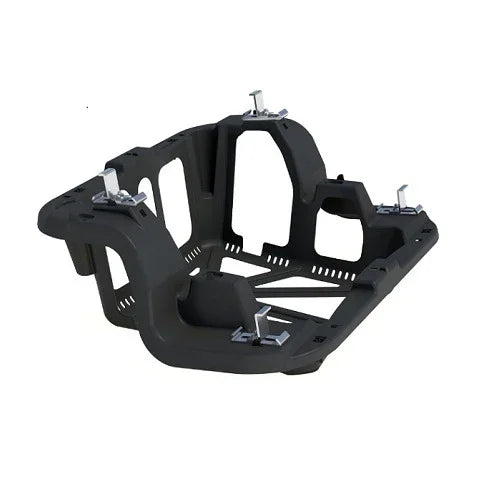

Ironridge BX Chassis 5 Degree - BX-5D-P1

Ironridge BX Chassis 5 Degree - BX-5D-P1

The Ironridge BX-5D-P1 is a premium mounting solution designed to provide durability and reliability for solar panel installations. This chassis features a sleek black finish and is constructed from high-quality BASF ULTRAMID material, ensuring long-lasting performance under various weather conditions. With efficient design, it guarantees ease of installation and maximizes utility while supporting optimal row spacing for solar module setups.

Product Features

Durable Material

Made from BASF ULTRAMID 8233GHS, the Ironridge BX-5D-P1 provides exceptional strength and resistance to environmental factors, making it an ideal choice for long-term solar applications.

Efficient Design

This chassis is engineered with optimal dimensions, including a ballast space of 24.23 inches, allowing for effective weight distribution and stability during installations. This design enhances user experience by facilitating straightforward assembly.

Flexible Row Spacing

The BX-5D-P1 allows for adjustable row spacing of up to 10.00 degrees, which optimizes solar panel positioning for maximum sun exposure and efficiency, directly benefiting energy yield.

Clearance for Installations

With significant north and south panel clearances of 29.32 inches and 4.83 inches respectively, this chassis accommodates various module configurations comfortably, improving overall installation flexibility.

Complete Kit Inclusion

This product comes with a complete kit featuring the BX CHASSIS 10 DEG ASSEMBLY, simplifying assembly and reducing installation time while ensuring that all necessary components are included for a seamless setup.

How It Works

The Ironridge BX-5D-P1 operates by providing a sturdy mounting framework that supports solar panels, ensuring they remain securely in place even under dynamic environmental conditions. Its design facilitates the adjustment of spacing and angle, making it user-friendly for installers.

Assembly Instructions

The assembly process is straightforward; each chassis comes with detailed guidance to assist users in setting up their solar installations effectively and securely.

Support and Stability

This chassis is built to provide stability through its well-distributed ballast space, helping manage weight to withstand various weather conditions while maintaining alignment with solar exposure.

Optimal Performance

By aligning solar modules at effective angles and distances, the BX-5D-P1 enhances the overall performance of the solar array, contributing to increased energy generation.

Specifications
