• Growatt MIN 5000TL-XH-US 5.0kW Hybrid Inverter – Partial Home Backup (V2, WiFi/LAN, Tigo RSD)
1 1

Growatt MIN 5000TL-XH-US 5.0kW Hybrid Inverter – Partial Home Backup (V2, WiFi/LAN, Tigo RSD)

Growatt MIN 5000TL-XH-US 5.0kW Hybrid Inverter – Partial Home Backup (V2, WiFi/LAN, Tigo RSD)

Ships Direct from Manufacturer's US Warehouse — typically 5–10 business days
Brand: Growatt
$1,195.00 USD
$1,219.00 USD $1,195.00 USD
Sold out
Shipping calculated at checkout.

PayPal Pay in 4 interest-free payments of $298.75 on qualifying orders, or monthly financing with PayPal Pay Later.

Available at checkout for eligible US buyers. Subject to approval.

Ships Direct from Manufacturer's US Warehouse — 5–10 business days
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

OEM Authorized Full Warranty 5–10 business days

Complete the job

Verified compatible gear for this system

Growatt ALP 5.0L-E2-US 5kWh LV LFP Battery Module (48V)
Compatible Growatt ALP 5.0L-E2-US 5kWh LV LFP Battery Module (48V)
$1,477.00
Growatt ALP 5.0L Battery Base – Floor Stand for ALP LV Battery Stacks
Compatible Growatt ALP 5.0L Battery Base – Floor Stand for ALP LV Battery Stacks
$124.00
Growatt SM-US Smart Meter with 2 CTs (200A) – for MIN/SPH/SPF ESS Management
Compatible Growatt SM-US Smart Meter with 2 CTs (200A) – for MIN/SPH/SPF ESS Management
$194.00
Growatt ATS 11400T-US 50A Automatic Transfer Switch (Partial Home Backup)
Compatible Growatt ATS 11400T-US 50A Automatic Transfer Switch (Partial Home Backup)
$636.00
Growatt SYN 200-XH-US-13A Whole Home Backup ATS – 200A Breaker + Smart Meter + Generator Port
Compatible Growatt SYN 200-XH-US-13A Whole Home Backup ATS – 200A Breaker + Smart Meter + Generator Port
$1,683.00
Growatt ALP 5.0L Battery Cables (Battery Bank to Inverter)
Compatible Growatt ALP 5.0L Battery Cables (Battery Bank to Inverter)
$48.00
Growatt

PES Supply is an authorized distributor for Growatt. 50,000+ SKUs from 169 authorized brands.

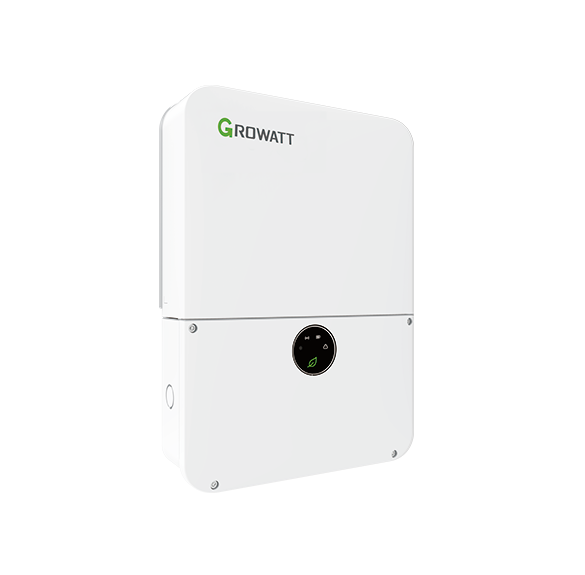

The Growatt MIN 5000TL-XH-US (V2) is a 5.0kW battery-ready hybrid inverter for residential solar + storage with partial-home-backup support.

Key Features

  • Battery-ready: DC/AC-coupled storage with Growatt ARO/APX & LG Prime/Enblock HV batteries
  • Integrated Tigo RSD transmitter for Tigo TS4-F MLPEs
  • Integrated WiFi/LAN communication module
  • V2 hardware — Partial Home Backup with Growatt ATS 11400T-US
  • DC/AC ratio up to 2.0, max efficiency 98.3%

Compatibility: Growatt ARO/APX & LG Prime/Enblock HV batteries; Tigo TS4-F MLPEs; TS4-O with CCA + TAP kit

Specifications

Model MIN 5000TL-XH-US (V2)
Part Number PV01.0101900
Rated AC Output 5,000 W
Communication Integrated WiFi/LAN (WL)
Rapid Shutdown Integrated Tigo RSD transmitter (TRS-T)
Backup Partial Home Backup (V2) — requires Growatt ATS
Dimensions (W×H×D) 15.8 × 25.2 × 7.4 in (400 × 638 × 187 mm)
Weight 33 lb (15 kg)
Enclosure IP65/NEMA 4X — indoor/outdoor wall mount
Certifications UL1741SA/SB, IEEE1547, CA Rule 21, HECO, CEC listed

Authorized Growatt distribution — full 10-year manufacturer warranty. Ships single units via ground freight from Growatt USA (Eastvale, CA) or our Louisville, KY warehouse.

ManufacturerGrowatt
Datasheet
Height6.98
Length15.75
Width22.41
Growatt MIN 5000TL-XH-US 5.0kW Hybrid Inverter – Partial Home Backup (V2, WiFi/LAN, Tigo RSD)
Growatt MIN 5000TL-XH-US 5.0kW Hybrid Inverter – Partial Home Backup (V2, WiFi/LAN, Tigo RSD) $1,195.00

You May Also Need

ZNShine Solar 705W 132-Cell Bifacial Solar Panel

ZNShine Solar 705W 132-Cell Bifacial Solar Panel

$230.32
Canadian Solar 710W TOPCon Bifacial Solar Panel

Canadian Solar 710W TOPCon Bifacial Solar Panel

$340.80
Sol-Ark 15kW EMP-Hardened Hybrid Inverter/Charger

Sol-Ark 15kW EMP-Hardened Hybrid Inverter/Charger

$8,508.56
Sol-Ark 15K-2P 15kW Hybrid Inverter

Sol-Ark 15K-2P 15kW Hybrid Inverter

$5,750.00
Sol-Ark 15K-2P Hybrid Inverter

Sol-Ark 15K-2P Hybrid Inverter

$5,692.72
Growatt SPH 10000TL3 10kW Three-Phase Hybrid Inverter

Growatt SPH 10000TL3 10kW Three-Phase Hybrid Inverter

$3,200.00
Growatt MIN 11400TL-XH-US 11.4kW Hybrid Inverter

Growatt MIN 11400TL-XH-US 11.4kW Hybrid Inverter

$1,706.00
Growatt MIN 10000TL-XH-US 10kW Hybrid Inverter

Growatt MIN 10000TL-XH-US 10kW Hybrid Inverter

$1,485.00

Specifications

Datasheet
Model MIN 5000TL-XH-US (V2)
Part Number PV01.0101900
Rated AC Output 5,000 W
Communication Integrated WiFi/LAN (WL)
Rapid Shutdown Integrated Tigo RSD transmitter (TRS-T)
Backup Partial Home Backup (V2) — requires Growatt ATS
Dimensions (W×H×D) 15.75 × 22.41 × 6.98 in (400 × 569 × 170.5 mm)
Weight 32.3 lb (14.65 kg)
Enclosure IP65/NEMA 4X — indoor/outdoor wall mount
Certifications UL1741SA/SB, IEEE1547, CA Rule 21, HECO, CEC listed
Max. PV Input Power (STC) 10,000 W
MPPT Trackers 2
PV Strings per MPPT 2/2
MPPT Full-Load Voltage Range 200–500V
Battery Charge/Discharge Current 14.4 A
Battery Charge/Discharge Power 5,200 W
AC Output Power @208V 4,330 W
Max. AC Output Current 21 A
Backup (EPS) Output Power 5,000 W
Max. Backup Surge 7,900 VA
Max. Efficiency 98.2%
CEC Efficiency @240V 97.5%
CEC Efficiency @208V 97.5%
Max. DC System Voltage 600 V
Startup Voltage 80 V
Nominal DC Voltage 360 V
Max. Input Current per MPPT 13.5 A (16.9 A Isc)
Battery Voltage Range Growatt APX 380–550V / ARO 360–550V / LG 360–450V (nominal 400V)
Battery Chemistry LFP
AC Nominal Voltage 208/240V split-phase (183–229V / 211–264V range)
Grid Frequency 50/60 Hz (45–65 Hz)
Power Factor >0.99 (0.8 leading – 0.8 lagging)
THDi <3%
Operating Temperature −13°F to +140°F (−25 to +60°C), derating above 113°F
Max. Altitude 9,843 ft (3,000 m)
Cooling Natural convection
RSD Compliance UL1741 PVRSS / NEC 2020 690.12 (Tigo / APsmart / FUDA transmitter options)
Warranty 10 years (optional 15/20-year extension)
Revenue-Grade Meter ANSI C12.20 (0.5% accuracy)
Certifications<
