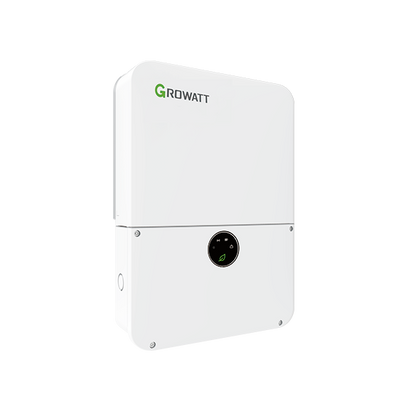

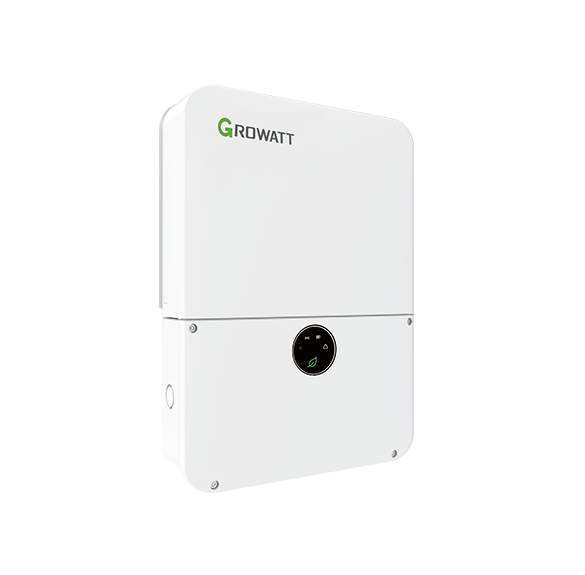

The Growatt MIN 3800TL-XH-US (V3) is a 3.8kW transformerless battery-ready hybrid inverter for residential storage — grid-tie today, add a Growatt ARO/APX or LG high-voltage battery later.
Key Features
- Battery-ready: DC-coupled or AC-coupled storage with Growatt ARO/APX & LG Prime/Enblock HV batteries
- Integrated Tigo RSD transmitter — pairs directly with Tigo TS4-F rapid-shutdown MLPEs (APS RSD transmitter swap available)
- Integrated WiFi/LAN communication module with Growatt cloud monitoring
- V3 hardware — Partial Home Backup with Growatt ATS (ATS 11400T-US)
- DC/AC ratio up to 2.0, max efficiency 98.3%, dark-start capable
Compatibility: Growatt ARO/APX & LG Prime/Enblock HV batteries; Tigo TS4-F MLPEs; TS4-O supported with Tigo CCA + TAP kit
Specifications
| Model | MIN 3800TL-XH-US (V3) |
| Part Number | PV01.0104500 |
| Rated AC Output | 3,800 W |
| Communication | Integrated WiFi/LAN (WL) |
| Rapid Shutdown | Integrated Tigo RSD transmitter (TRS-T) |
| Backup | Partial Home Backup (V3) — requires Growatt ATS |
| Dimensions (W×H×D) | 15.8 × 25.2 × 7.4 in (400 × 638 × 187 mm) |
| Weight | 33 lb (15 kg) |
| Enclosure | IP65/NEMA 4X — indoor/outdoor wall mount |
| Certifications | UL1741SA/SB, IEEE1547, CA Rule 21, HECO, CEC listed |
Authorized Growatt distribution — full 10-year manufacturer warranty. Ships single units via ground freight from Growatt USA (Eastvale, CA) or our Louisville, KY warehouse.
