PES Supply is an authorized distributor for Growatt. 50,000+ SKUs from 169 authorized brands.

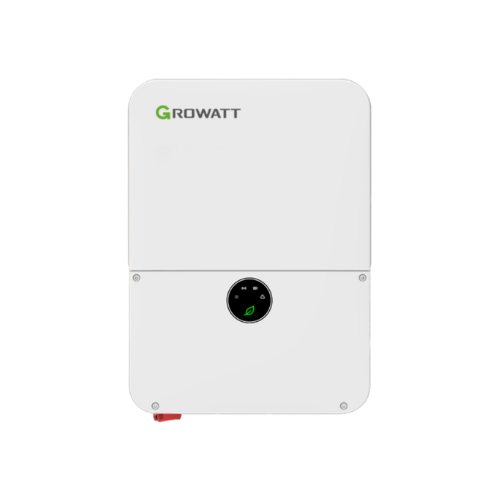

The Growatt MIN 7600TL-XH-US (V3) is the latest-hardware 7.6kW battery-ready hybrid inverter with integrated Tigo RSD transmitter and WiFi/LAN communications.
Key Features
- V3 hardware revision — current production
- Integrated Tigo RSD transmitter for Tigo TS4-F MLPEs
- Integrated WiFi/LAN communication module
- Battery-ready: Growatt ARO/APX & LG Prime/Enblock HV batteries
- Partial Home Backup with Growatt ATS; DC/AC ratio up to 2.0
Compatibility: Growatt ARO/APX & LG Prime/Enblock HV batteries; Tigo TS4-F MLPEs; TS4-O with CCA + TAP kit
Specifications
| Model | MIN 7600TL-XH-US (V3) |
| Part Number | PV01.0104800 |
| Rated AC Output | 7,600 W |
| Communication | Integrated WiFi/LAN (WL) |
| Rapid Shutdown | Integrated Tigo RSD transmitter (TRS-T) |
| Backup | Partial Home Backup (V3) |
| Dimensions (W×H×D) | 15.8 × 25.2 × 7.4 in (400 × 638 × 187 mm) |
| Weight | 33 lb (15 kg) |
| Enclosure | IP65/NEMA 4X |
| Certifications | UL1741SA/SB, IEEE1547, CA Rule 21, HECO, CEC listed |
Authorized Growatt distribution — full 10-year manufacturer warranty. Ships single units via ground freight from Growatt USA (Eastvale, CA) or our Louisville, KY warehouse.
| Manufacturer | Growatt |
|---|---|
| Datasheet |  |
| Height | |
| Length | |
| Width |
