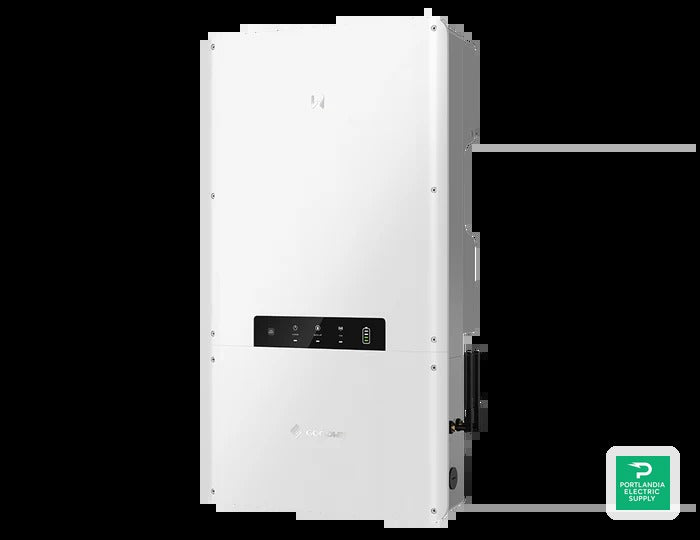

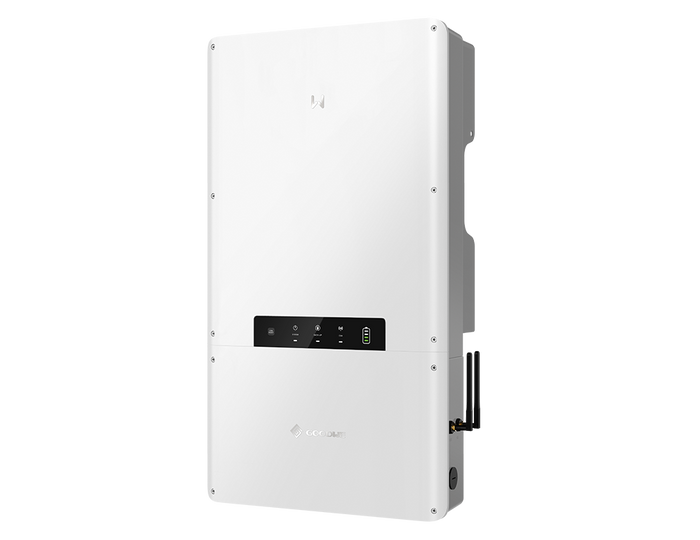

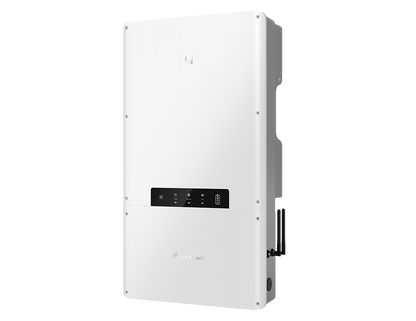

GoodWe SBP US Series G2 AC Couple Inverter w/ EZLink 4G - GW9600-SBP-US20
GoodWe SBP US Series G2 AC Couple Inverter w/ EZLink 4G - GW9600-SBP-US20
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0702
- MPN
- GW9600-SBP-US20-4G
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Goodwe. 50,000+ SKUs from 169 authorized brands.
GoodWe SBP-US (G2) — GW9600-SBP-US20, 9.6 kW Split-phase AC-Coupled w/ EZLink + 4G
High-capacity AC-coupled inverter with built-in autotransformer, micro-grid & backup, and generator compatibility. LAN (4G optional) + Bluetooth + Wi-Fi; listing includes Ezlink + 4G. NEMA 4X enclosure. :contentReference[oaicite:12]{index=12}
Technical Specifications — GW9600-SBP-US20
| Battery Input | |
|---|---|
| Nominal / range / start | 300 V / 80–495 V* / 80 V |
| Inputs / charge & discharge current | 1 / 50 A & 50 A |
| Max charging / discharging power | 9,600 W / 10,080 W |
| AC Output (On-grid) | |
| Nominal W / VA to grid | 9,600 W / 9,600 VA |
| Max VA to/from grid (w/o EV same) | 9,600 VA / 9,600 VA |
| Voltage / range / frequency | 240 V / 211–264 V / 60 Hz (58.5–61.2 Hz) |
| Max AC current to/from grid | 40.0 A / 40.0 A |
| AC Output (Back-up) | |
| Back-up VA / Max with grid | 9,600 VA / 17,280 VA @ 10 s** |
| Max output current | 40.0 A |
| Efficiency | |
| Max / CEC / Battery→AC | 97.0% / 96.0% / 97.0% |
| Protection • General • Certifications | |
| Same series protections; 74.7 lb; noise <40 dB; non-isolated; <20 W night self-use*. UL1741 SB, IEEE 1547 family; NEMA 4X. | |
* Voltage-limited power; micro-grid max battery 450 V. ** Requires sufficient PV + battery. :contentReference[oaicite:13]{index=13}
EV Charger (Optional — series block)
| Charging level | AC Level 2 |
| Nominal AC power / frequency | 9,600 W / 60 Hz |
| Max continuous current | 40 A (selectable; default 16 A) |
| App / Cable | Wi-Fi, Bluetooth / 7.6 m* |
| Degree / Standards | NEMA 4X / UL2594, UL2231-1/-2; NEC 625; SAE J1772 |
| SKU | PES-SPS-SIV-0702 |
|---|---|
| MPN | GW9600-SBP-US20-4G |
