GoodWe MS G3 US Series PV string Inverter w/ EZLink 4G - GW9600-MS-US30
GoodWe MS G3 US Series PV string Inverter w/ EZLink 4G - GW9600-MS-US30
PayPal Pay in 4 interest-free payments of $418.28 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0683
- MPN
- GW9600-MS-US30-4G
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Goodwe. 50,000+ SKUs from 169 authorized brands.
"""

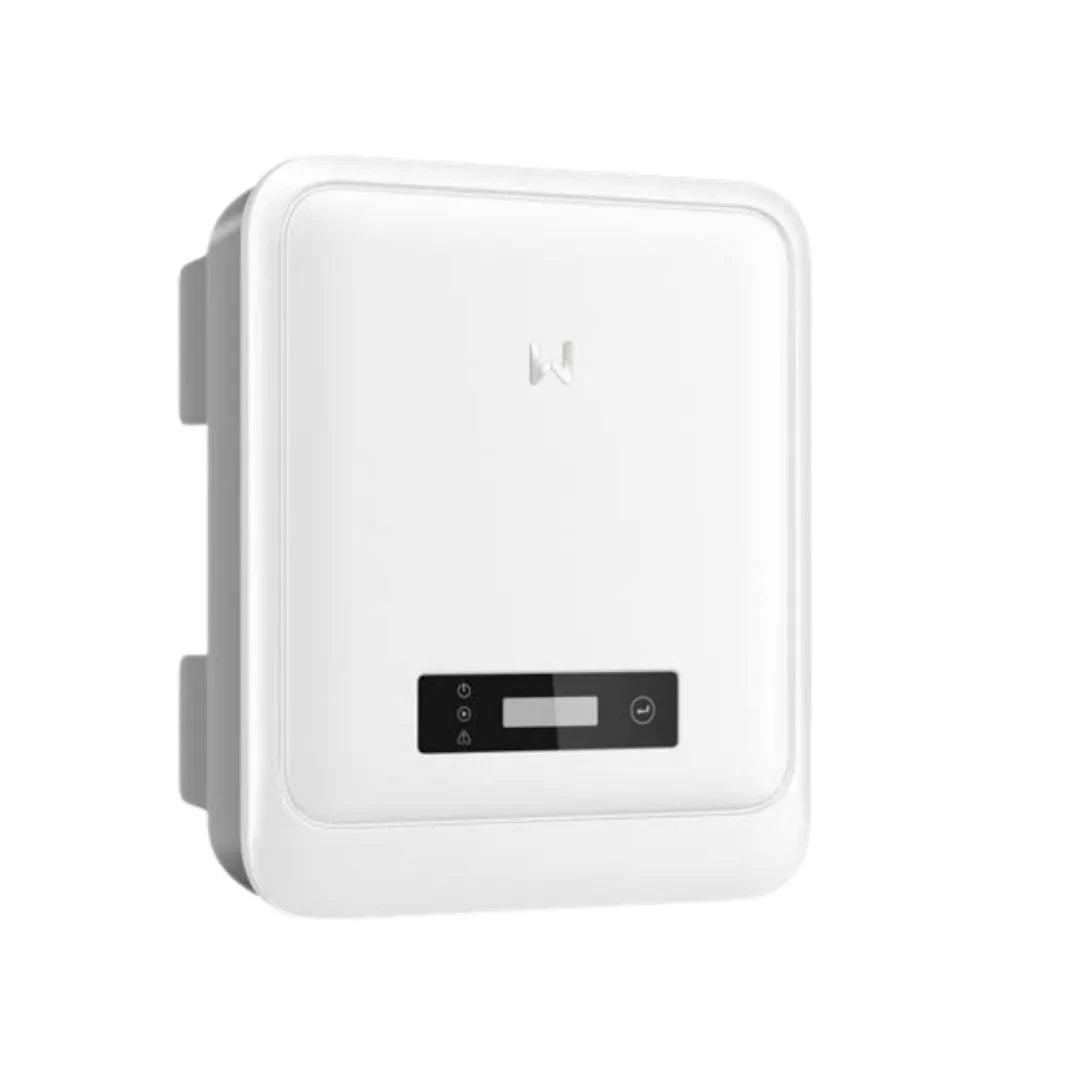

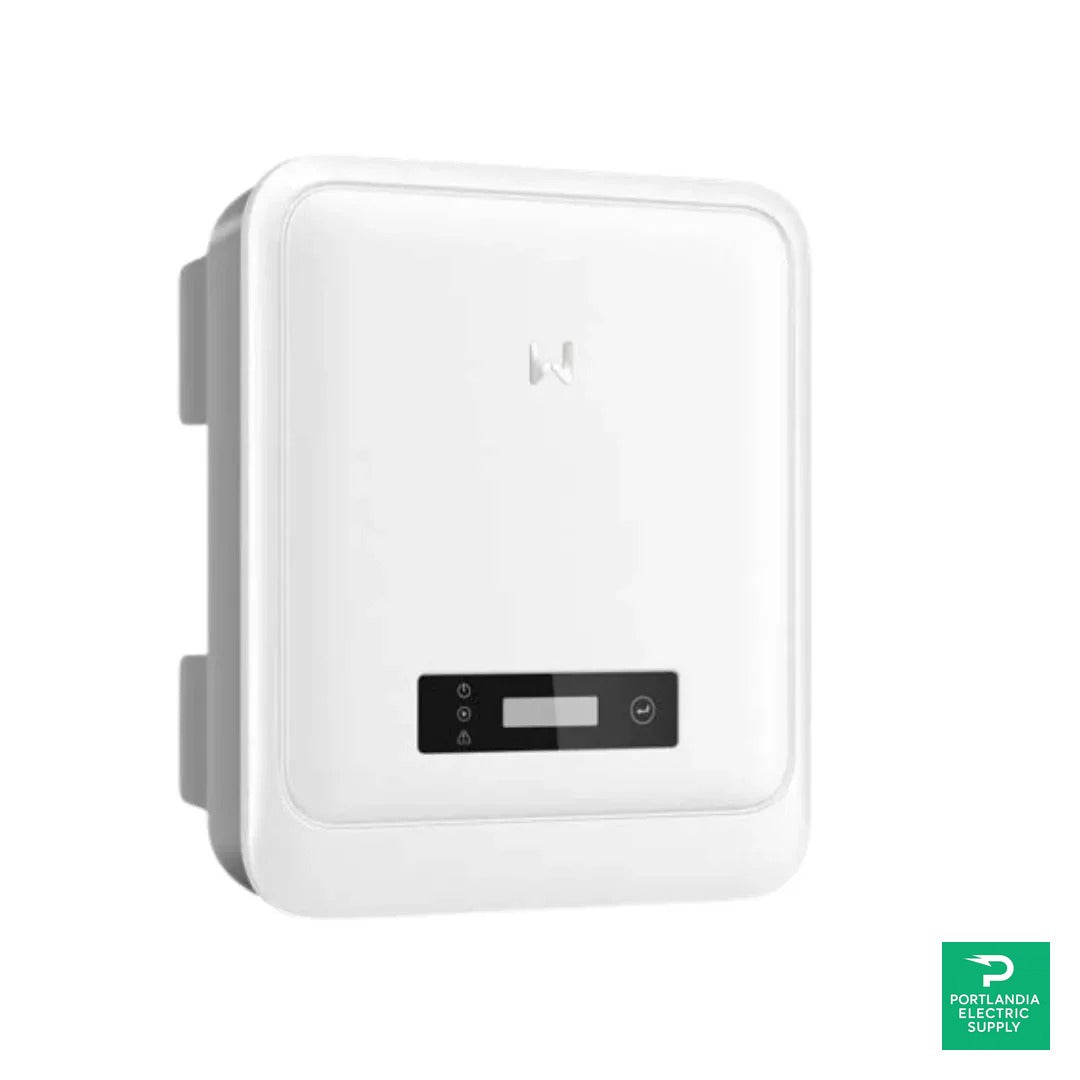

GoodWe MS-US (G3) — GW9600-MS-US30, 9.6 kW PV String Inverter w/ EZLink 4G
The GoodWe MS G3 US Series PV string Inverter is a next-generation solar inverter designed to deliver reliable, efficient, and intelligent energy conversion for residential and light commercial solar systems. Built with advanced technology and a strong focus on performance, this inverter ensures optimal power output, system safety, and seamless connectivity. Whether you are upgrading an existing solar setup or installing a new system, this inverter offers a dependable and future-ready solution.
Engineered for modern solar requirements, the inverter supports high DC input capacity and superior conversion efficiency, making it ideal for maximizing energy harvest in diverse environmental conditions.
3 MPPTs, Type 4X (IP66), built-in optimization, AFCI & Rapid Shutdown, EZLink (IEEE 2030.5). Bluetooth commissioning; Wi-Fi/LAN monitoring; 4G connectivity included for this variant.
Technical Specifications — GW9600-MS-US30
| PV Input | |
|---|---|
| Max. input power | 15,360 W |
| Max. input voltage | 600 Vdc |
| MPPT voltage @ nominal power (240 V) | 210–500 V |
| MPPT voltage @ nominal power (208 V) | 182–500 V |
| Start-up voltage | 80 V |
| Nominal input voltage (240 V / 208 V) | 380 V / 330 V |
| Max input current / Isc per MPPT | 16 A / 23.4 A |
| MPPT trackers / Strings per MPPT | 3 / 1 |
| AC Output | |
| Nominal output power (240 V / 208 V) | 9,600 W / 8,320 W |
| Nominal apparent power (240 V / 208 V) | 9,600 VA / 8,320 VA |
| Max AC active/apparent power (240 V / 208 V) | 9,600 W / 8,320 W • 9,600 VA / 8,320 VA |
| Nominal voltage / frequency | 240 / 208 V • 60 Hz |
| Max output current | 40.0 A |
| Power factor / THD | ~1 (0.8 lead…0.8 lag) / < 3% |
| Efficiency | |
| Max / CEC (240 V / 208 V) | 97.8% / 97.0% / 96.5% |
| Protection & Safety | |
| Integrated | PV string current, insulation & residual current monitoring; reverse-polarity; anti-islanding; AC overcurrent/short-circuit/overvoltage; DC switch; AFCI; Rapid Shutdown |
| Surge protection | DC SPD Type III (Type II optional); AC SPD Type III (Type II optional) |
| General | |
| Operating / storage temp | −31~+140 °F (−35~+60 °C), derate ≥ 113 °F / −40~+158 °F |
| Humidity / altitude | 0–95% / 9,842 ft (3,000 m) |
| Cooling | Natural convection (internal fan air circulation) |
| Interface / comms / protocol | LED, WLAN + App / RS485, Wi-Fi + LAN + Bluetooth, 4G / Modbus-RTU (SunSpec) |
| Dimensions / Weight | 19.2 × 26.4 × 7.8 in • 55.1 lb |
| Noise / Topology / Night self-use | < 35 dB / Non-isolated / < 5 W |
| Ingress protection | Type 4X (IP66) |
| Certifications / Grid Standards | |
| Standards | UL1741 / UL1741SB / UL1741-CRD, UL1699B, CSA C22.2; IEEE 2030.5, IEEE 1547 / 1547.1-2020; California Rule 21; EMC: FCC Part 15 Class B |
Variant note — EZLink 4G
Manual lists 4G as optional; this listing includes the 4G connectivity with EZLink.
""
3 MPPTs, Type 4X (IP66), built-in optimization, AFCI & Rapid Shutdown, EZLink (IEEE 2030.5). Bluetooth commissioning; Wi-Fi/LAN monitoring; 4G connectivity included for this variant.
Technical Specifications — GW9600-MS-US30
| PV Input | |
|---|---|
| Max. input power | 15,360 W |
| Max. input voltage | 600 Vdc |
| MPPT voltage @ nominal power (240 V) | 210–500 V |
| MPPT voltage @ nominal power (208 V) | 182–500 V |
| Start-up voltage | 80 V |
| Nominal input voltage (240 V / 208 V) | 380 V / 330 V |
| Max input current / Isc per MPPT | 16 A / 23.4 A |
| MPPT trackers / Strings per MPPT | 3 / 1 |
| AC Output | |
| Nominal output power (240 V / 208 V) | 9,600 W / 8,320 W |
| Nominal apparent power (240 V / 208 V) | 9,600 VA / 8,320 VA |
| Max AC active/apparent power (240 V / 208 V) | 9,600 W / 8,320 W • 9,600 VA / 8,320 VA |
| Nominal voltage / frequency | 240 / 208 V • 60 Hz |
| Max output current | 40.0 A |
| Power factor / THD | ~1 (0.8 lead…0.8 lag) / < 3% |
| Efficiency | |
| Max / CEC (240 V / 208 V) | 97.8% / 97.0% / 96.5% |
| Protection & Safety | |
| Integrated | PV string current, insulation & residual current monitoring; reverse-polarity; anti-islanding; AC overcurrent/short-circuit/overvoltage; DC switch; AFCI; Rapid Shutdown |
| Surge protection | DC SPD Type III (Type II optional); AC SPD Type III (Type II optional) |
| General | |
| Operating / storage temp | −31~+140 °F (−35~+60 °C), derate ≥ 113 °F / −40~+158 °F |
| Humidity / altitude | 0–95% / 9,842 ft (3,000 m) |
| Cooling | Natural convection (internal fan air circulation) |
| Interface / comms / protocol | LED, WLAN + App / RS485, Wi-Fi + LAN + Bluetooth, 4G / Modbus-RTU (SunSpec) |
| Dimensions / Weight | 19.2 × 26.4 × 7.8 in • 55.1 lb |
| Noise / Topology / Night self-use | < 35 dB / Non-isolated / < 5 W |
| Ingress protection | Type 4X (IP66) |
| Certifications / Grid Standards | |
| Standards | UL1741 / UL1741SB / UL1741-CRD, UL1699B, CSA C22.2; IEEE 2030.5, IEEE 1547 / 1547.1-2020; California Rule 21; EMC: FCC Part 15 Class B |
Variant note — EZLink 4G
Manual lists 4G as optional; this listing includes the 4G connectivity with EZLink.
Why Choose the GoodWe MS G3 US Series PV string Inverter?
Choosing the right inverter is critical for the long-term success of any solar power system. The GoodWe MS G3 US Series PV string Inverter stands out due to its robust design, intelligent monitoring, and enhanced communication features.
This inverter is designed to handle higher power loads efficiently while maintaining system stability. Its compact and lightweight structure allows for flexible installation options, reducing installation time and complexity. Additionally, it complies with strict grid standards, ensuring safe and stable grid interaction.
Advanced Performance and Efficiency
The GoodWe MS G3 US Series PV string Inverter is built to deliver high conversion efficiency, ensuring that more of the solar energy generated by your panels is converted into usable electricity. Its advanced MPPT (Maximum Power Point Tracking) technology allows the system to continuously optimize energy production, even under fluctuating sunlight conditions.
This results in:
- Improved overall system yield
- Reduced energy losses
- Consistent performance throughout the day
With a wide MPPT voltage range, the inverter adapts efficiently to different panel configurations, making it suitable for various system designs.
Smart Connectivity with EZLink 4G
One of the most valuable features of this model is its smart connectivity. The GoodWe MS G3 US Series PV string Inverter w/ EZLink 4G - GW9600-MS-US30 enables seamless remote monitoring and data transmission. With built-in 4G communication, system owners and installers can track performance in real time without relying on local Wi-Fi networks.
This smart monitoring capability allows:
- Real-time energy production tracking
- Faster fault detection and diagnostics
- Improved system management and maintenance
Remote access ensures peace of mind by keeping users informed about system health at all times.
Safety, Reliability, and Grid Compliance
Safety is a core design principle of the GoodWe MS G3 US Series PV string Inverter. It includes multiple layers of protection such as DC reverse polarity protection, insulation resistance detection, and advanced fault monitoring. These features help safeguard both the system and connected equipment.
The inverter is fully compliant with modern grid standards, ensuring smooth interaction with utility networks. Its anti-islanding protection and voltage regulation capabilities support stable grid operation, making it suitable for installations in regulated markets.
Flexible Installation and User-Friendly Design
Installation flexibility is another advantage of the GoodWe MS G3 US Series PV string Inverter. Its compact size and lightweight design allow for easy wall mounting, even in limited spaces. The inverter’s intuitive interface simplifies setup and commissioning, saving time for installers.
Key installation benefits include:
- Simple wiring layout
- Clear system indicators
- Quick commissioning process
This user-focused design makes the inverter a practical choice for both new installations and system upgrades.
Long-Term Value for Solar Investments
Investing in the GoodWe MS G3 US Series PV string Inverter means choosing long-term performance and reliability. Its durable construction and intelligent monitoring capabilities help reduce maintenance costs while ensuring consistent energy output over time.
The inverter is designed to support modern solar energy goals by enhancing efficiency, improving system visibility, and ensuring dependable operation throughout its lifespan. For homeowners and businesses seeking a high-quality solar inverter solution, this model delivers a strong balance of technology, performance, and value.
"
| SKU | PES-SPS-SIV-0683 |
|---|---|
| MPN | GW9600-MS-US30-4G |
| Manufacturer | Goodwe |
| Container price | |
| Container qty | |
| Isfollow | |
| Isindex | |
| Pallet price | |
| Unit price | |
| Inverter type | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
