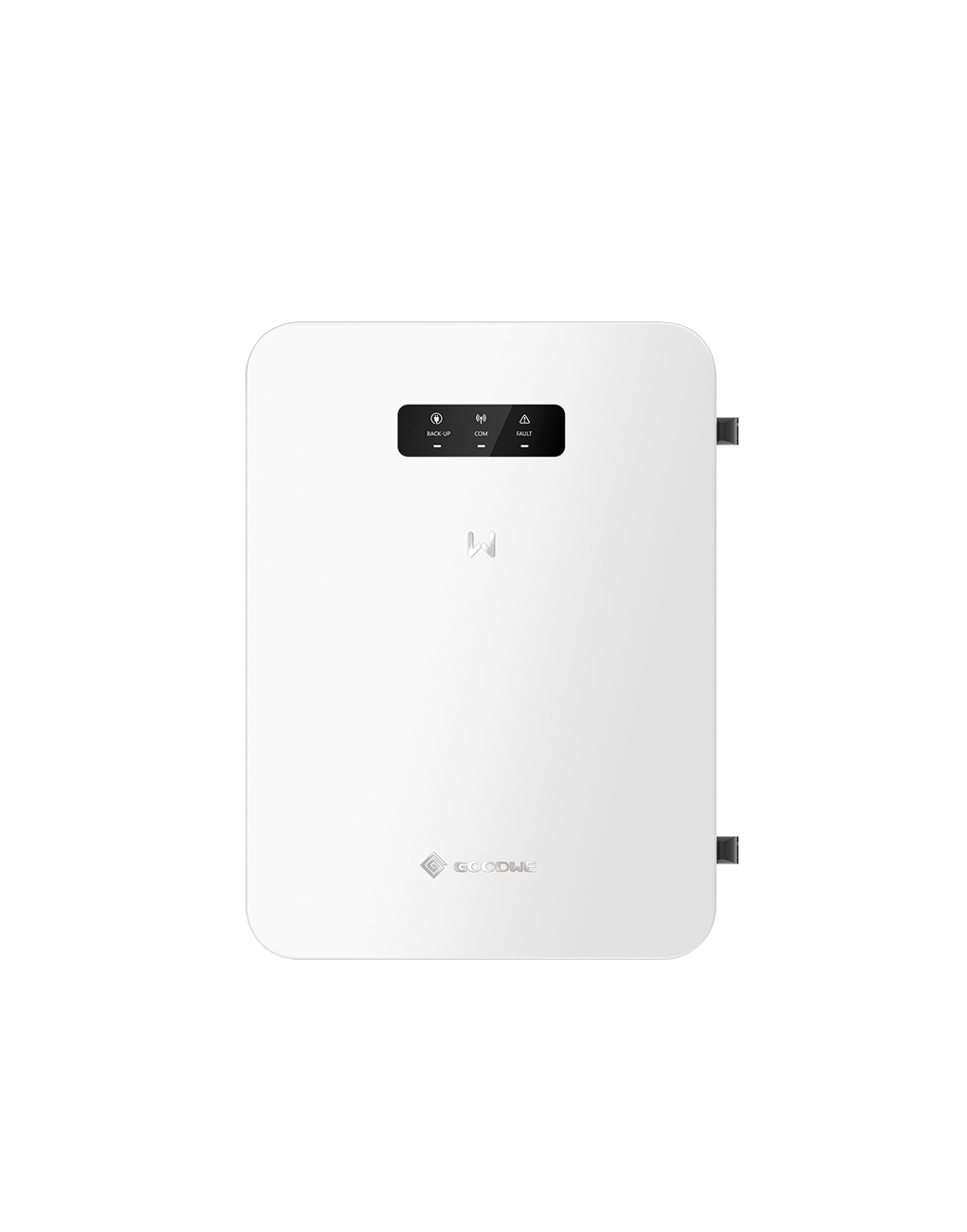

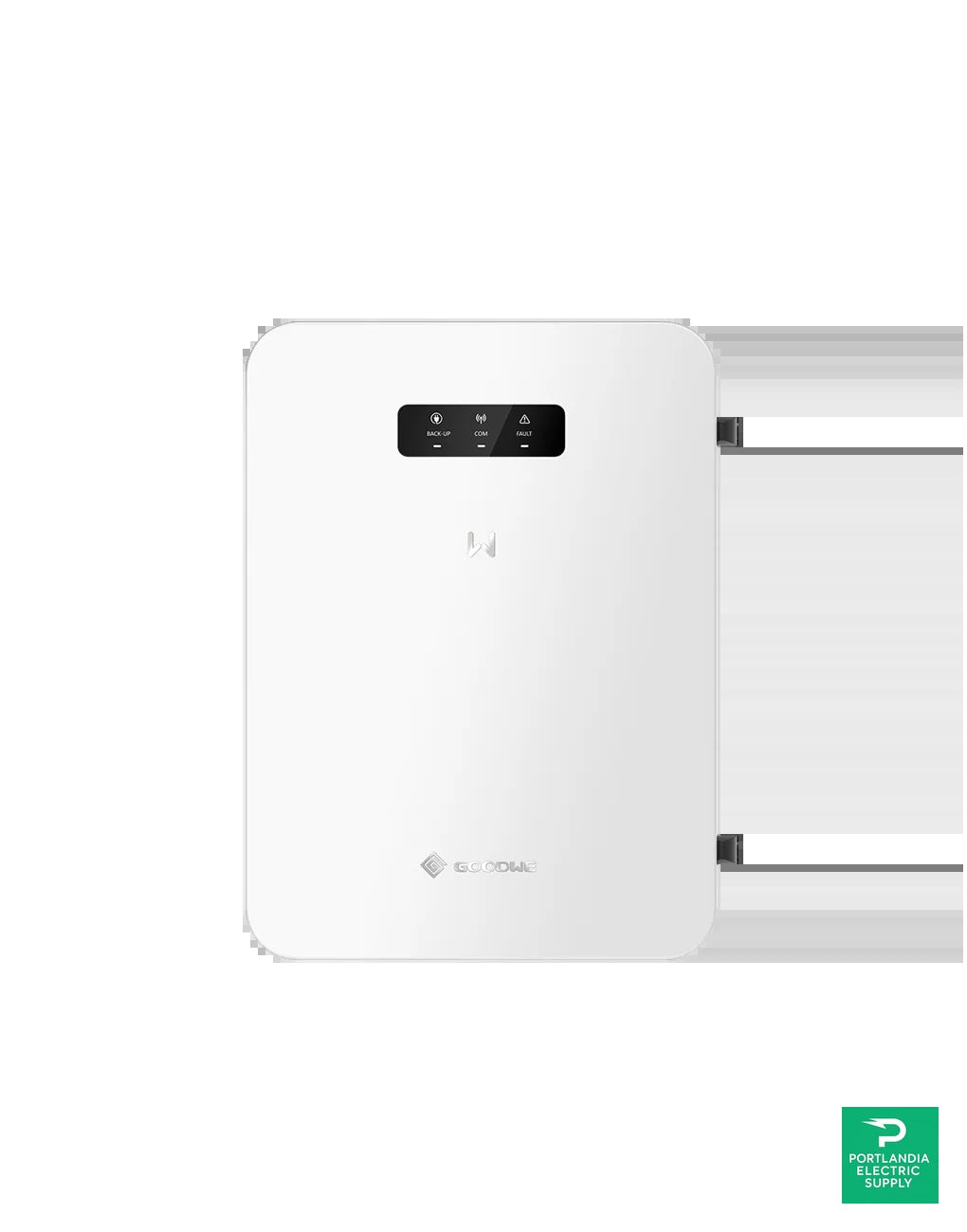

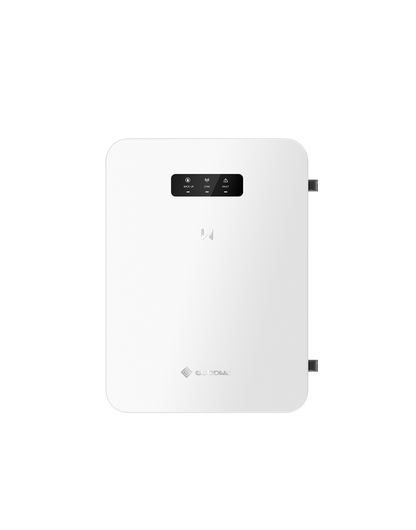

GoodWe Automatic Backup Device — ABD200-63-US10 (Kit: ABD11K4-07-00P, 4 × CTs)
GoodWe Automatic Backup Device — ABD200-63-US10 delivers an intelligent and dependable solution to ensure power remains uninterrupted during grid outages. It is designed specifically for advanced residential and light commercial use. This device allows seamless off-grid switching automatically without user involvement. Compatible with modern inverter systems, it guarantees safety, performance, and reliability.
Paired with energy storage systems, this product ensures full backup during power interruptions. The GoodWe ABD200 for ES-US/SBP-US full backup when off grid ABD200-63-US10 4 CTs - ABD11K4-07-00P controls energy flow smartly, keeping appliances, data, and comfort protected in your home or workplace.
Factory-matched backup switchgear suits GoodWe ES-US & SBP-US systems. It provides 24/7 residential backup, low-voltage ride-through, and installs a North America Smart Meter supporting up to 4 current transformers for precise load monitoring. :contentReference[oaicite:3]{index=3}
Kit mapping: Order code ABD11K4-07-00P includes model ABD200-63-US10 with 4 CTs.
Technical Specifications — ABD200-63-US10 (from GoodWe datasheet)
| Electrical Data | |
|---|---|
| Nominal output voltage | 240 V |
| Output voltage range | 211 – 264 V |
| Feed-in type | Split phase |
| Nominal AC voltage of line conductor | 120 / 240 V |
| Nominal AC frequency | 60 Hz |
| AC frequency range | 58.5 – 61.2 Hz |
| Current rating (from grid) | 200 A |
| Max. continuous current from inverter | 47.5 A |
| Maximum overcurrent protection of main breaker | 200 A * main breaker optional |
| Maximum overcurrent protection of inverter circuit breaker | 63 A |
| General Data | |
| Operating temperature range | −13 °F to +140 °F (−25 °C to +60 °C) derating ≥ 113 °F |
| Max operating altitude | 9,842 ft (3,000 m) |
| Cooling method | Natural convection |
| Communication with inverter | RS485 |
| Weight | 26 lb (12 kg) |
| Dimensions (W × H × D) | 17.7 × 24 × 5.9 in (450 × 610 × 150 mm) |
| Mounting method | Wall-mounted |
| Ingress protection rating | Type 3R, IP44 |
| Certifications & Standards | |
| Safety | UL1741, UL1741 PCS CRD, CSA C22.2 No.107-01 |
| EMC | FCC Part 15 Class B |
Function & Compatibility Notes
- Compatible with single inverter (ES-US or SBP-US). Related MPD supports up to three inverters.
- Automatically switches between on-grid and backup microgrid during outages.
- Built-in NA Smart Meter supports up to four CTs. This kit contains 4 CTs.
What Is the GoodWe Automatic Backup Device — ABD200-63-US10?
The GoodWe Automatic Backup Device — ABD200-63-US10 is a fast-switching load transfer and isolation device. It toggles quickly between grid-connected and off-grid modes. On grid failure, it disconnects from utility and activates backup power within seconds. When grid power returns, it safely restores connection without interruption.
This automatic feature removes the need for manual switching and boosts safety. The device uses high-quality components for stable performance under varying loads. It fits today’s backup power demands effectively.
Full Backup Support During Off-Grid Operation
A key advantage is full backup capability off grid. It manages both critical and non-critical loads smoothly. Essential equipment such as lighting, refrigeration, and security stays operational during outages without interruption.
The included 4 CTs (current transformers) allow precise power monitoring and control. This enhances intelligence for optimized energy use and excellent load management. It increases system reliability and energy efficiency when power is unavailable.
Advanced Safety and Grid Isolation Features
Safety is a core design priority. The device fully isolates from the utility grid during off-grid mode to prevent harmful backfeed. This protects both users and utility workers during maintenance or emergencies.
Fast response systems with strong protection logic prevent overloads, short circuits, and other faults. These safety measures increase system lifespan and provide peace of mind.
Seamless Integration with Energy Storage Systems
The GoodWe ABD200 for ES-US/SBP-US full backup when off grid ABD200-63-US10 4 CTs - ABD11K4-07-00P works well with compatible inverter and battery systems. It offers synchronized operation for energy generation, storage, and backup supply.
Using smart routing, the device maximizes stored energy during outages. It maintains stable voltage and frequency, which is key for reliable and intelligent energy management.
Ideal for Residential and Light Commercial Use
The device suits many applications including homes, offices, and light commercial buildings. Its compact, wall-mounted design allows easy installation. Advanced controls adapt it to various load profiles.
Whether protecting home essentials or enabling business continuity, this automatic backup device ensures steady performance. Its full backup feature is valuable in areas with unreliable grids or frequent blackouts.
Long-Term Reliability and Performance of GoodWe Automatic Backup Device — ABD200-63-US10
Built for durability, the GoodWe Automatic Backup Device — ABD200-63-US10 promises dependable long-term operation. Smart monitoring, robust materials, and precise switching secure continuous functionality.
With minimal maintenance and stable operation, this device supports lasting energy independence. It improves safety and efficiency for users creating reliable backup plans.
