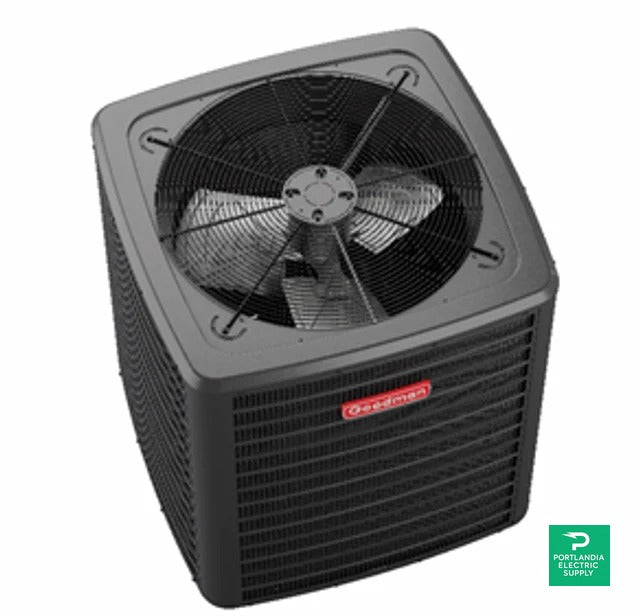

Goodman GLXS5B R-32 air conditioner – up to 16.5 SEER2
The Goodman GLXS5B R-32 air conditioner delivers efficient, reliable cooling from 1.5 to 5 tons with up to 16.5 SEER2 performance. It’s built around a high-efficiency scroll compressor and factory-installed filter drier, with sweat service valves and easy access for charging and service.
Key Features
High-efficiency design
From the scroll compressor to the 5 mm copper-tube/enhanced-aluminum coil, the Goodman GLXS5B R-32 air conditioner is engineered for dependable performance, quiet operation, and straightforward service access.
R-32 platform
Uses lower-GWP R-32 refrigerant. Units ship factory-charged for 15 ft of 3/8″ liquid line (adjust charge per installation instructions).
Specifications
| Nominal cooling | 18,000 – 60,000 BTU/h (1.5–5 tons) |
|---|---|
| Efficiency | Up to 16.5 SEER2 |
| Sound level | 69 – 76 dBA (by model) |
| Electrical | 208/230 V, 60 Hz, single phase |
| MCA / MOCP | 11.1–36.4 A / 15–60 A (time-delay or HACR breaker) |
| Refrigerant | R-32 |
| Liquid line | 3/8″ O.D. (all sizes) |
| Suction line | 3/4″ (1.5–2.5T), 7/8″ (3.0T), 1-1/8″ (3.5–5.0T) O.D. |
| Liquid valve (service) | 3/8″ O.D., sweat |
| Suction valve (service) | 3/4″ (1.5–3.0T) or 7/8″ (3.5–5.0T), sweat |
| Unit dimensions (W×D×H) | 26×26×27″ (1.5T) … 35.5×35.5×41.625″ (5T) |
| Equipment / ship weight | 116–287 lb / 134–309 lb |
| Certifications | AHRI Certified; ETL Listed; UL 60335-2-40 compliant top design |
| Warranty | 10-Year Parts Limited Warranty with registration* |
Installation & Warranty
Match with an approved indoor coil/air handler to meet rating requirements. Follow charge verification and electrical protection in the SS-GLXS5B-R32 spec sheet. Register the Goodman GLXS5B R-32 air conditioner to receive full limited warranty benefits.
