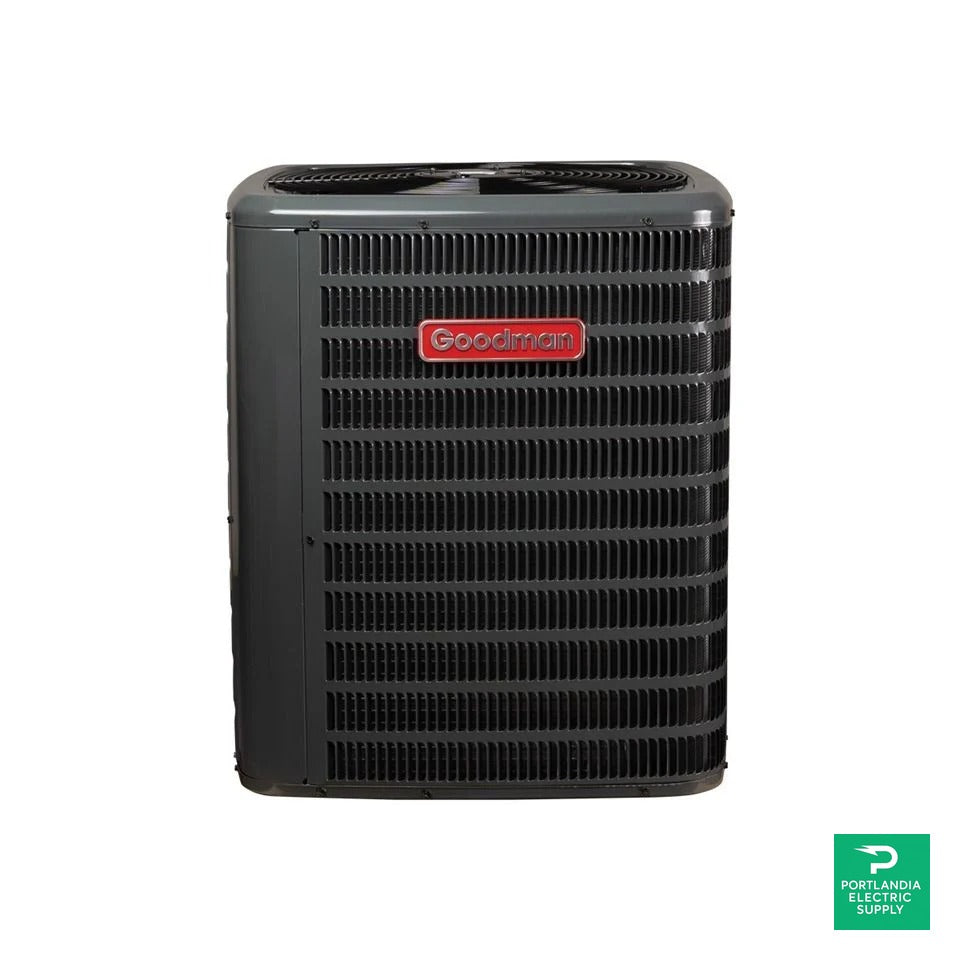

Goodman GLXS5BA4810 air conditioner – 4-ton, 15.2 SEER2, R-32
The Goodman GLXS5BA4810 air conditioner delivers dependable 4-ton cooling with R-32 refrigerant and 15.2 SEER2 performance. It’s built with a high-efficiency scroll compressor, factory-installed filter drier, and service-friendly sweat valves for fast commissioning and maintenance.
Key Features
High-efficiency, service-ready design
From the 5 mm copper-tube/enhanced-aluminum coil to the grille-style top, the Goodman GLXS5BA4810 air conditioner is engineered for quiet operation, durability, and straightforward access to gauge ports and controls.
Specifications
| Nominal cooling | 48,000 BTU/h (4.0 tons) |
|---|---|
| Efficiency | 15.2 SEER2 (up to 16.5 SEER2 family) |
| Sound level | 75 dBA |
| Electrical | 208/230 V, 60 Hz, 1-phase |
| MCA / MOCP | 25.5 A / 40 A (time-delay or HACR) |
| Refrigerant | R-32 (factory charge for 15′ of 3/8″ liquid line) |
| Liquid line / valve | 3/8″ O.D. / 3/8″ sweat |
| Suction line / valve | 1-1/8″ O.D. / 7/8″ sweat (field adapter as needed) |
| Unit dimensions (W×D×H) | 35.5 × 35.5 × 36.5 in |
| Equipment / ship weight | 249 lb / 271 lb |
| Certifications | AHRI Certified; ETL Listed; UL 60335-2-40 compliant top design |
| Warranty | 10-Year Parts Limited Warranty with registration |
Installation & Compatibility
Match with approved indoor coils/air handlers for rated performance. When pairing with non-R-32 furnaces, use the required Goodman Furnace Integration Kit (0230K00044). Follow the spec sheet for charge adjustment and electrical protection. The Goodman GLXS5BA4810 air conditioner qualifies for a 10-year parts limited warranty with timely registration.
