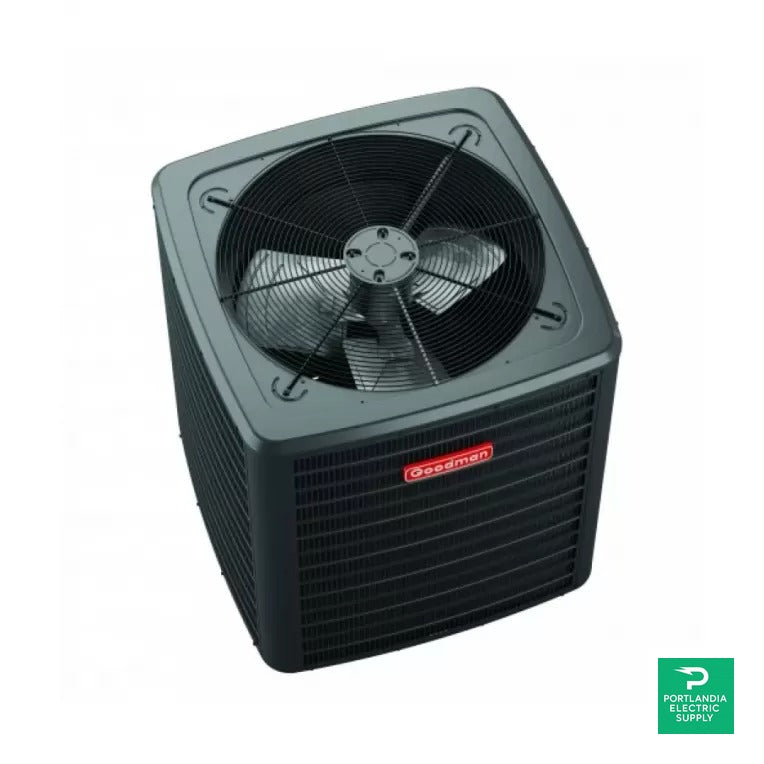

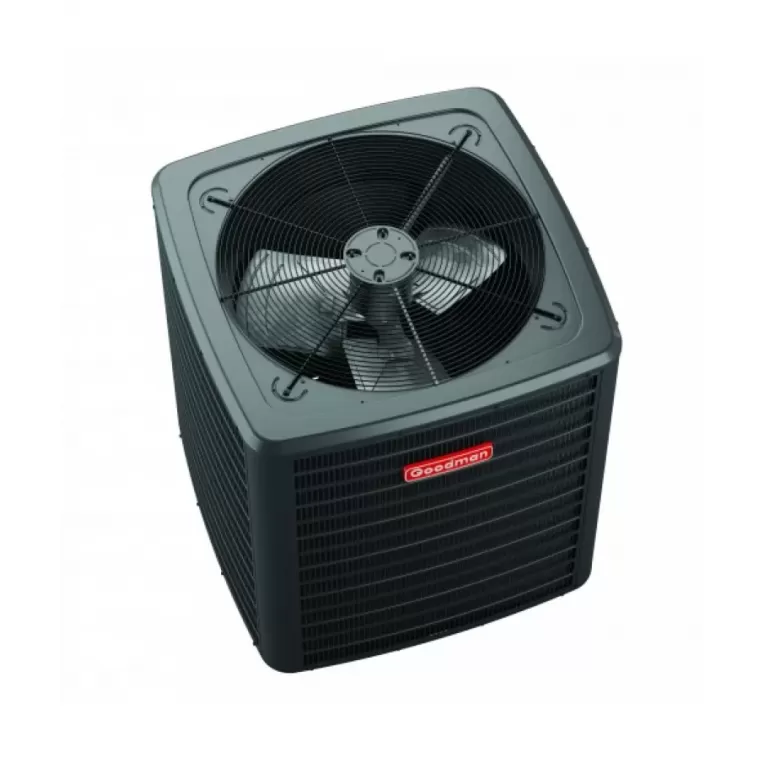

Goodman GLXS5BA2410 air conditioner – 2-ton, 15.2 SEER2, R-32
The Goodman GLXS5BA2410 air conditioner delivers efficient 2-ton cooling with an energy-saving scroll compressor and R-32 refrigerant. Factory-installed filter drier and sweat service valves simplify setup, while the grille-style top meets UL 60335-2-40 for safe, quiet operation.
Key Features
High-efficiency, service-friendly design
From the 5 mm copper-tube/enhanced-aluminum coil to easy gauge-port access, the Goodman GLXS5BA2410 air conditioner is built for dependable performance and straightforward maintenance.
Specifications
| Nominal cooling | 24,000 BTU/h (2.0 tons) |
|---|---|
| Efficiency | 15.2 SEER2 (family up to 16.5 SEER2) |
| Sound level | 69 dBA |
| Electrical | 208/230 V, 60 Hz, single phase |
| MCA / MOCP | 13.8 A / 20 A (time-delay or HACR) |
| Refrigerant | R-32 (factory charge for 15′ of 3/8″ liquid line) |
| Liquid line / valve | 3/8″ O.D. / 3/8″ sweat |
| Suction line / valve | 3/4″ O.D. / 3/4″ sweat |
| Unit dimensions (W×D×H) | 29 × 29 × 32 in |
| Equipment / ship weight | 149 lb / 167 lb |
| Certifications | AHRI Certified; ETL Listed; UL 60335-2-40 compliant top design |
| Warranty | 10-Year Parts Limited Warranty with registration |
Installation & Compatibility
Match with approved indoor coils/air handlers for rated performance. For legacy furnaces, use Goodman’s required furnace integration kit (0230K00044) when pairing with R-32 systems. Follow the spec sheet for charge adjustment and electrical protection. The Goodman GLXS5BA2410 air conditioner qualifies for a 10-year parts limited warranty with timely registration.
| SKU | PES-HVAC-CHS-0006 |
|---|---|
| MPN | GLXS5BA2410 |
| Manufacturer | Goodman |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
