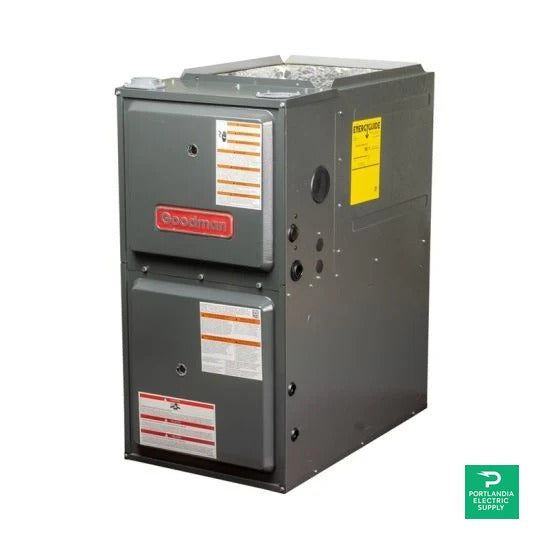

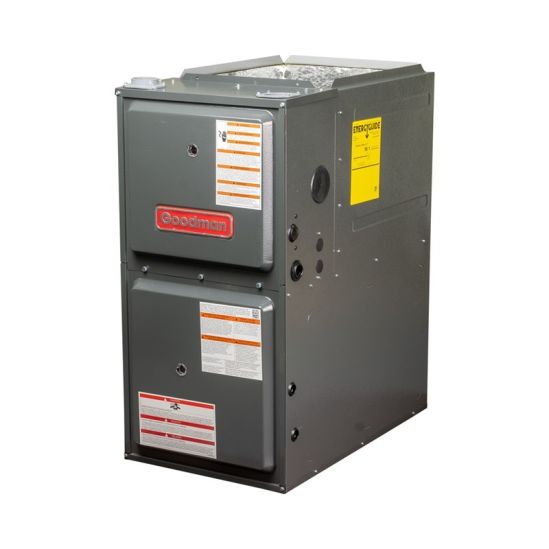

Goodman GD9T960603B gas furnace – 60,000 BTU, 96% AFUE
The Goodman GD9T960603B gas furnace delivers quiet, efficient comfort with a two-stage gas valve and a nine-speed ECM blower. A stainless-steel secondary heat exchanger and silicon-nitride igniter add durability, while the downflow/horizontal B-cabinet simplifies installs.
Key Features
Two-stage comfort with ECM efficiency
Running on low fire most of the time for quieter operation and steadier temperatures, the Goodman GD9T960603B gas furnace ramps to high fire only when needed. The 9-speed ECM blower supports smooth airflow and energy-efficient circulation.
Specifications
| Input / Output | 60,000 / 57,600 BTU/h |
|---|---|
| AFUE | 96% |
| Stages | Two-stage |
| Blower | 9-speed ECM |
| Electrical | 115 V, 60 Hz, single-phase |
| MCA / MOCP | 7.8 A / 15 A |
| Cabinet (HxWxD) | 34.5 × 17.5 × 28.75 in (B cabinet) |
| Ship weight | 115 lb |
| Vent | 2″–3″ PVC (1- or 2-pipe; see spec) |
| Certifications | AHRI Certified; ETL Listed |
| Warranty | Lifetime heat exchanger; 10-yr unit replacement; 10-yr parts (with registration) |
| SKU | PES-HVAC-HES-0094 |
|---|---|
| MPN | GD9T960603B |
| Manufacturer | Goodman |
| Container price | |
| Container qty | |
| Height | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number |
