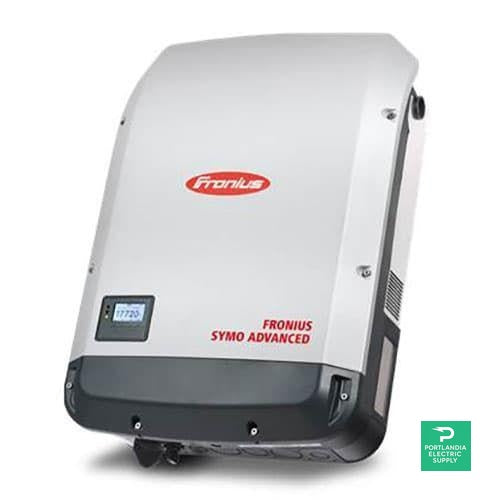

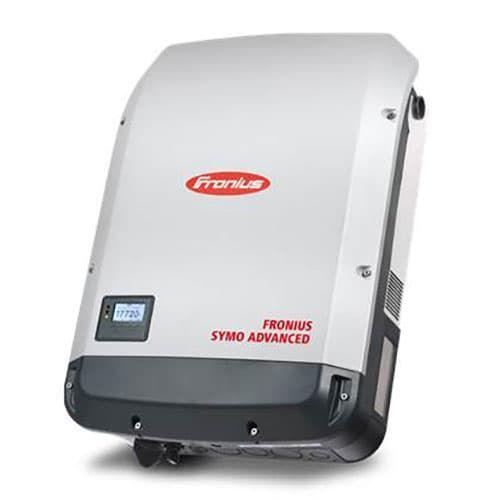

Fronius Symo Advanced 10.0-3-208/240 Three-Phase String Inverter — Advanced Grid-Tied Solution for Commercial Applications
The Fronius Symo Advanced 10.0-3-208/240 Three-Phase String Inverter offers premium performance, reliability, and flexible integration for medium to large commercial PV systems. Designed and built by Fronius, this inverter combines smart grid compatibility, advanced monitoring, and exceptional energy yield. The Fronius Symo Advanced 10.0-3-208/240 Three-Phase String Inverter is transformerless, lightweight, and ideal for installations requiring precise performance and safety compliance. Featuring the Fronius Datamanager 2.0, this unit enables real-time system monitoring and remote control.
Product Features
High Conversion Efficiency
Achieves up to 98.1 % maximum efficiency, ensuring optimal energy production and minimal losses under all operating conditions.
Integrated Datamanager 2.0
Built-in data communication card enables remote monitoring via Fronius Solar.web and seamless integration into smart grid networks.
Dynamic Grid Support
The Fronius Symo Advanced 10.0-3-208/240 Three-Phase String Inverter meets advanced interconnection standards, offering real and reactive power control for grid stability.
Flexible Installation
SnapINverter mounting system allows quick and secure installation with easy service access — perfect for both indoor and outdoor setups.
Built for Safety & Longevity
Equipped with AFCI protection, NEMA 4X housing, and intelligent fan cooling, this inverter ensures reliability even in harsh environments.
How It Works
The Fronius Symo Advanced 10.0-3-208/240 Three-Phase String Inverter converts DC power from solar panels into clean AC electricity. Dual MPPT trackers maximise energy harvest, while communication interfaces enable real-time data exchange for monitoring and fault diagnostics.
Specifications
| Model | Symo Advanced 10.0-3-208/240 |
| MPN | 4210090800 |
| Rated AC Power Output | 10,000 W (10 kW) |
| AC Output Voltage | 208/240 V AC, Three Phase |
| Maximum DC Input Voltage | 1000 V DC |
| MPPTs | 2 Independent Trackers |
| Maximum Efficiency | 98.1 % |
| Enclosure Rating | NEMA 4X / IP65 (Outdoor Rated) |
| Cooling System | Fan-Assisted Active Cooling |
| Communication Interfaces | Ethernet / Wi-Fi / Modbus TCP / RS485 |
| Operating Temperature Range | -40 °F to 140 °F (-40 °C to +60 °C) |
| Dimensions (L × W × H) | 28 × 16 × 8 in (711 × 406 × 203 mm) |
| Weight | ≈ 47 lb (21.3 kg) |
| Warranty | 10 Years (Extendable to 20 Years) |
| Manufacturer | Fronius International GmbH |
Specifications verified from Fronius Symo Advanced official datasheet (2023) and installation manual from Stellavolta and InverterSupply.
