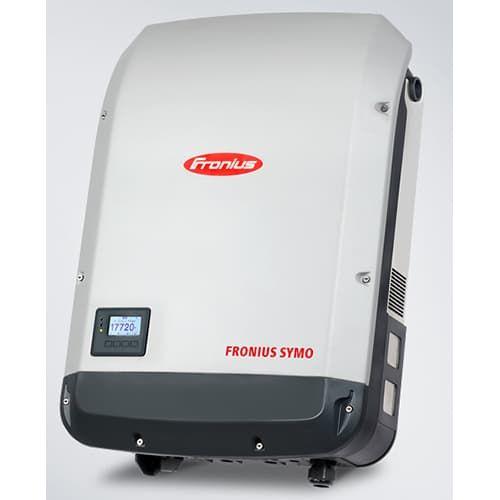

Fronius Symo 22.7 kW 3-Phase 480 VAC Inverter – 4210055801
The Fronius Symo 22.7 kW 3-Phase 480 VAC Inverter (Model 4210055801) is a high-efficiency, transformerless string inverter designed for large commercial and industrial solar installations. With advanced grid management, web-based monitoring, and integrated safety features, it ensures exceptional reliability and performance.
Product Features
High-Efficiency Commercial Performance
Delivers up to 98.1 % efficiency and optimised power output for balanced three-phase operation.
Smart Connectivity
Includes built-in Fronius Datamanager 2.0 for monitoring, Wi-Fi communication, and direct web access via Solar.web.
Advanced Grid Integration
Supports all standard grid codes and offers dynamic feed-in control, reactive power compensation, and zero-export options.
Flexible System Design
Multiple MPP trackers allow for asymmetrical string configuration and complex roof orientations.
Durable & Maintenance-Friendly
Integrated DC disconnect, easy access service panels, and IP66-rated enclosure make it ideal for harsh environments.
Applications
- Commercial rooftop solar
- Industrial power plants
- Microgrid and utility systems
- High-voltage 480 V applications
Specifications
| Model | 4210055801 |
| Rated AC Power | 22.7 kW |
| AC Output Voltage | 480 VAC (3-Phase) |
| Max Efficiency | 98.1 % |
| MPPT Inputs | 2 Independent Trackers |
| Communication | Wi-Fi / Ethernet / RS485 / Modbus TCP |
| Enclosure Rating | IP66 (NEMA 4) |
| Cooling | Active Fan Cooling |
| Warranty | 10 Years (Standard) |
| Manufacturer | Fronius International GmbH |
Documentation: Fronius Symo 22.7-3 480 VAC Datasheet (PDF)
| SKU | PES-SPS-SIV-0752 |
|---|---|
| MPN | 4210055801 |
| Manufacturer | Fronius |
