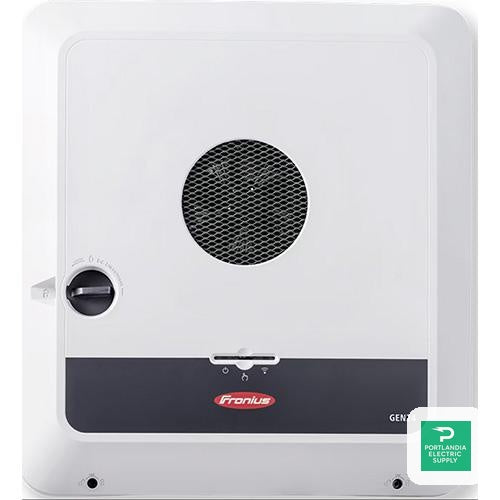

Fronius Primo GEN24 10.0 208–240V Inverter — Next-Generation Solar Power Solution
The Fronius Primo GEN24 10.0 208–240V Inverter is a high-performance, hybrid-ready solar inverter designed for U.S. residential and light-commercial applications. Featuring advanced grid management, high conversion efficiency, and battery-ready capability, the Fronius Primo GEN24 10.0 208–240V Inverter delivers reliable, smart, and sustainable energy conversion for modern homes.
Product Features
Hybrid-Ready Design
Equipped for integration with battery storage systems, this inverter offers future-proof flexibility for energy independence and load management.
SuperFlex Design
The Fronius Primo GEN24 10.0 208–240V Inverter supports various roof orientations and string configurations, allowing maximum solar energy capture and system design freedom.
PV Point Backup Power
Provides an integrated emergency power output for basic backup functionality during grid outages — no external components required.
Active Cooling & Smart Monitoring
Features active cooling technology for enhanced reliability and reduced heat stress, along with Fronius Solar.web for real-time energy monitoring and analytics.
High Conversion Efficiency
Delivers up to 97.8% maximum efficiency with minimal power loss, ensuring optimum energy yield throughout its operational life.
How It Works
The Fronius Primo GEN24 10.0 208–240V Inverter converts DC power generated by solar panels into usable AC electricity for home or business loads. It intelligently manages energy flow between solar generation, grid export, and storage devices, optimising self-consumption and system reliability.
Specifications
| Model | Primo GEN24 10.0 (MPN: 4210144800) |
| AC Output Power | 10.0 kW |
| AC Output Voltage | 208 / 240 V |
| Nominal AC Current | 48 A |
| DC Input Voltage Range | 80 – 1000 V DC |
| Max DC Input Power | 15.0 kW |
| Max Efficiency | 97.8 % |
| CEC Weighted Efficiency | 97.5 % |
| MPPT Trackers | 2 |
| Communication Interfaces | Ethernet, Wi-Fi, RS485, Solar.web |
| Cooling Method | Active Cooling (Fan-based) |
| Enclosure Rating | NEMA 4X / IP65 |
| Operating Temperature | –13 °F to +140 °F (–25 °C to +60 °C) |
| Dimensions (L × W × H) | 20.7 × 18.5 × 6.3 in (525 × 470 × 160 mm) |
| Weight | ≈ 50.7 lb (23 kg) |
| Certifications | UL 1741 SA, IEEE 1547, Rule 21, SunSpec Certified |
| Warranty | 10 Years (Extendable) |
| Manufacturer | Fronius International GmbH |
Specifications verified from the official Fronius GEN24 10.0 Datasheet.
