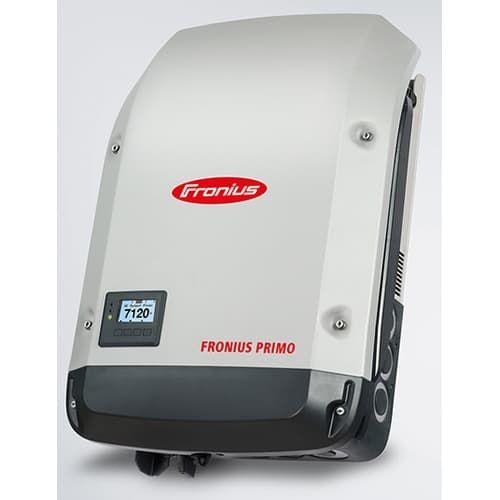

Fronius Primo 10.0-1 Inverter, 208–240VAC – 4210075800
The Fronius Primo 10.0-1 Inverter (model 4210075800) is a high-efficiency, transformerless single-phase inverter designed for residential and light commercial solar systems. Engineered by Fronius, it provides superior performance, flexible system integration, and advanced monitoring features for reliable solar energy conversion.
Product Features
High Efficiency & Proven Reliability
The Fronius Primo 10.0-1 Inverter 208–240VAC delivers up to 97.6% peak efficiency and features dual MPPT inputs for optimal power harvesting from multiple PV strings.
Smart Grid Ready
Equipped with advanced grid management functions, it complies with all major U.S. interconnection standards including IEEE 1547 and UL 1741 SA, ensuring long-term compatibility and safety.
Integrated Wi-Fi & Data Management
Built-in Fronius Datamanager 2.0 enables seamless monitoring through the Fronius Solar.web platform for real-time system tracking and performance analytics.
Durable Fan-Cooled Design
Active cooling technology ensures consistent performance even under high-temperature environments, extending inverter lifespan and reliability.
Easy Installation & Serviceability
Lightweight and compact, the inverter features a snap-in design that allows fast installation and convenient service access, reducing maintenance time and costs.
How It Works
The Fronius Primo 10.0-1 Inverter 208–240VAC efficiently converts DC electricity from solar panels into AC power for residential or small business use. It continuously tracks the maximum power point (MPPT) to optimise generation under varying sunlight conditions, feeding clean energy to the electrical grid or local loads.
Specifications
| Model | 4210075800 |
| AC Nominal Power Output | 10,000 W |
| Max DC Input Voltage | 600 V |
| Nominal AC Voltage | 208 / 240 V |
| Nominal AC Frequency | 60 Hz |
| Maximum Efficiency | 97.6% |
| MPPT Trackers | 2 |
| Maximum DC Input Current | 27 A (per MPPT) |
| Operating Temperature Range | -40°F to +140°F (-40°C to +60°C) |
| Enclosure Rating | NEMA 4 / IP65 (Outdoor Rated) |
| Cooling | Active Cooling (Variable Speed Fan) |
| Communication Interfaces | Wi-Fi, Ethernet, Modbus TCP/RTU, RS-485 |
| Certifications | UL 1741 SA, IEEE 1547, Rule 21, AFCI Integrated |
| Warranty | 10 Years (Standard, Extendable) |
| Manufacturer | Fronius International GmbH |
Specifications verified from official Fronius Datasheet.
