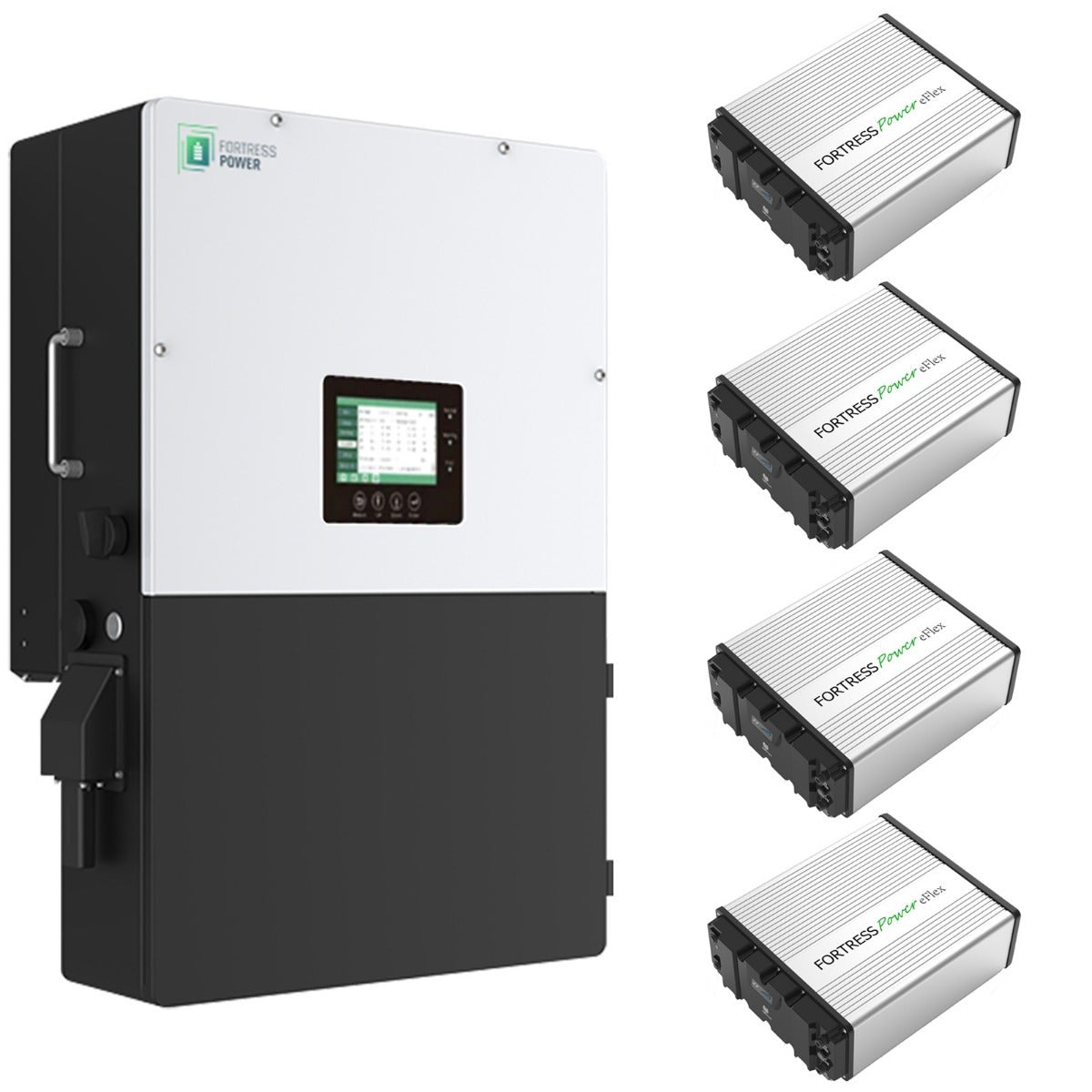

Fortress Envy 12 kW + (4) eFlex 5.4 kWh G2 — 21.6 kWh LFP Bundle
SKU/MPN: Envy12KW4 • Application: Whole-home backup / grid-tied with storage • Chemistry: LiFePO4 (48 V)
What’s included
- 1× Envy True 12 kW Hybrid Inverter — 200 A AC passthrough; 3 MPPT (up to 21 kW PV); AC/DC coupling; generator input; NEMA 4X/IP65; 34.2 × 20.5 × 11.2 in; 127 lb. [Datasheet / Manual]
- 4× eFlex 5.4 kWh G2 Batteries — 51.2 V, 105 Ah LFP; IP65 enclosure; ≈18 × 23 × 7.3 in; 108 lb each. Closed-loop inverter comms. [Datasheet]
Why this bundle
- ~21.6 kWh total usable storage (4 × 5.4 kWh modules) with modular wiring and mounting.
- Hybrid flexibility: Works with new or existing PV via AC or DC coupling; fast transfer; generator-ready.
- Closed-loop integration: CAN/RS-485 communication between Envy and Fortress batteries optimizes safety and performance.
- Outdoor-ready hardware: Envy NEMA 4X/IP65; eFlex IP65 for indoor/outdoor installs.
- Code & utility ready: Envy carries UL1741SB/IEEE 1547; eFlex carries UL9540/1973/9540A with UN38.3 shipping classification.
Key specs
| Inverter Output | 12 kW continuous; 120/240 V split-phase (also 120/208 V capable; see manual) |
|---|---|
| PV Input | Up to 21,000 W across 3 MPPTs (2/1/1 strings) |
| Total Energy | ≈21.6 kWh (4 × 5.4 kWh eFlex G2) |
| Enclosures | Envy NEMA 4X/IP65 • eFlex IP65 |
| Primary Enclosure Size | Envy 34.2 H × 20.5 W × 11.2 D in |
| Approx. Combined Weight | ≈559 lb (Envy + four eFlex) |
| Certifications | Envy: UL1741SB • eFlex: UL9540, UL1973, UL9540A |
Specifications from Fortress Power datasheets and manuals. Always size conductors/OCPD, provide clearances, and commission per the installation manual and local code.
| SKU | PES-SPS-SIV-0791 |
|---|---|
| MPN | Envy12KW4 |
| Manufacturer | Fortress Power |
| Container price | |
| Container qty | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
You May Also Need
Specifications
Datasheet
Capacity Kwh
5.4
Capacity Ah
105
Voltage
51.2V
Chemistry
LFP (Lithium Iron Phosphate)
Depth Of Discharge
Up to 95%
Cycle Life
8000 @ 80% DoD
Certifications<
