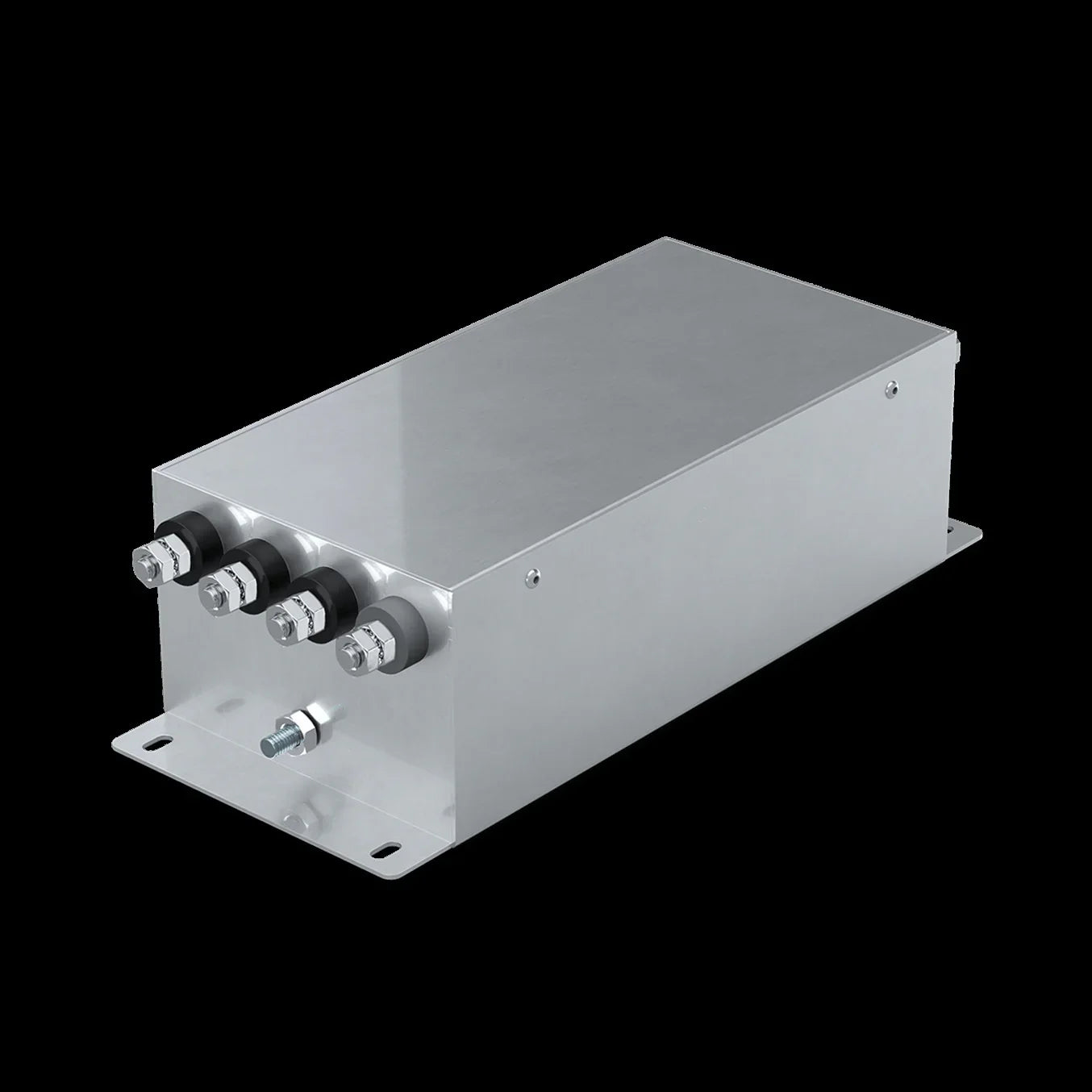

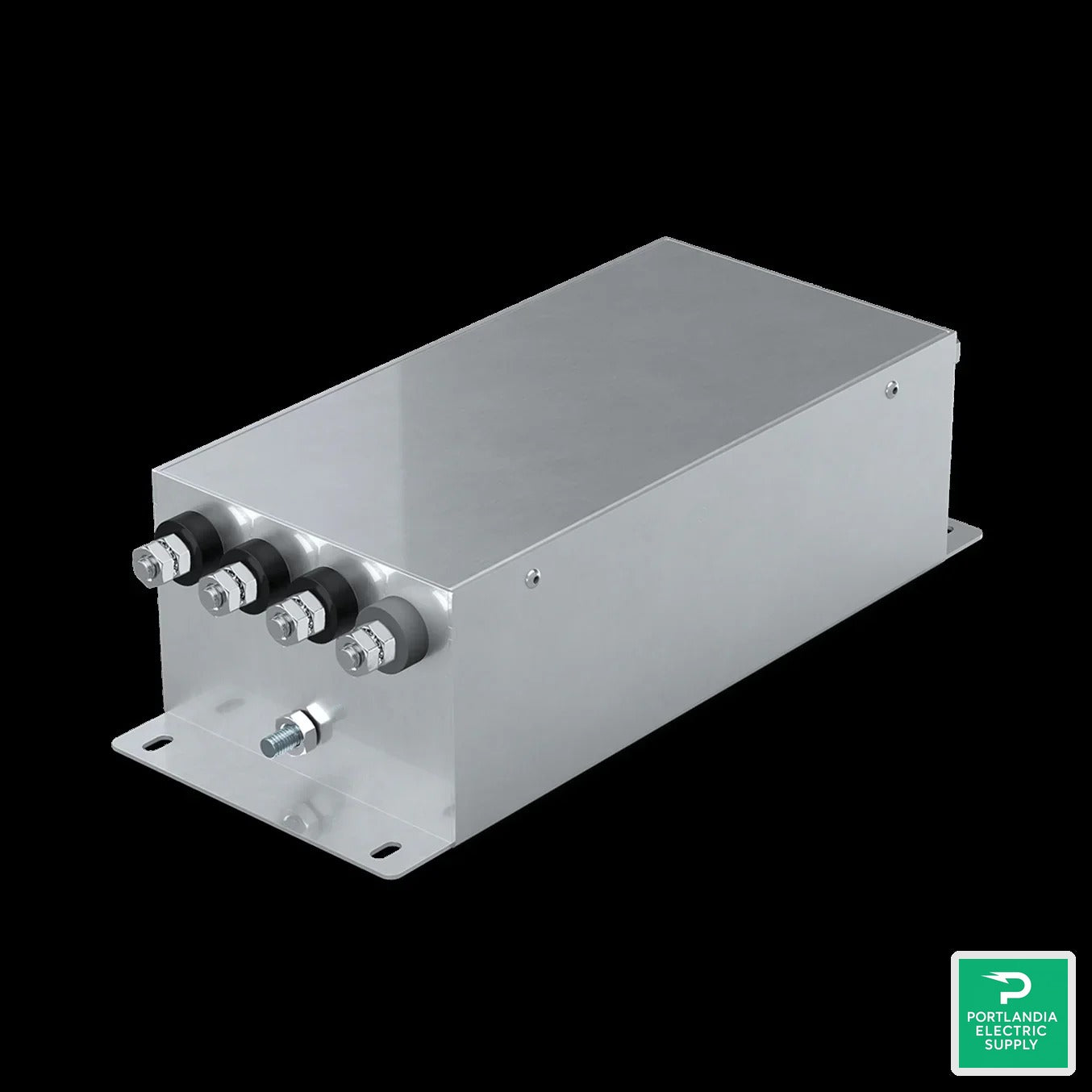

Enphase Enphase Radius Power Line Filter - Q-LCF-250-3P

Enphase Q-LCF-250-3P

The Enphase Radius Power Line Filter Q-LCF-250-3P is an essential component in commercial settings, designed to enhance communication efficiency across Enphase microinverter installations. By effectively separating power line communication (PLC) domains, this product ensures uninterrupted operations even under challenging conditions such as multiple IQ Gateways on a single utility transformer. Its compatibility with IQ6, IQ7, and IQ8 Commercial Series Microinverters makes it a versatile solution for modern energy demands, delivering reliability and performance for various applications.

Product Features

High Current Capacity

The Q-LCF-250-3P supports a maximum current of up to 250 A, ensuring it can handle significant electrical loads. This feature is crucial for maintaining optimal performance in environments where multiple devices operate simultaneously, allowing users to rely on its robust functionality.

Advanced Voltage Handling

With a maximum voltage rating of 480 VAC + 10%, this power line filter accommodates a broad range of voltage conditions. This capability ensures that the device can adapt to varying electrical environments without compromising performance or safety.

Wide Temperature Range

This filter operates effectively in ambient temperatures ranging from -40°C to 65°C (-40°F to 149°F). This feature enables its use in diverse climates, making it suitable for various commercial applications, ensuring reliable performance regardless of environmental conditions.

Compact and Lightweight Design

Weighing only 13.6 kg (29.98 lbs) and measuring 400.1 mm Aƒ— 162 mm Aƒ— 114.3 mm, the Q-LCF-250-3P is designed for easy installation and integration into existing systems. Its compact size does not compromise functionality, allowing for effective use in limited spaces.

Compliance with Safety Standards

The product is RoHS compliant and certified by cURus and EN60939, ensuring it meets essential safety standards. This compliance provides peace of mind to users, knowing that this filter is built adhering to high safety and environmental standards.

How It Works

The Enphase Radius Power Line Filter operates by isolating communication signals across the electrical system to enhance data transmission and reduce noise interference. This installation ensures seamless communication between microinverters and gateways, which is vital for optimal system performance.

Connecting Configuration

The filter connects both the Enphase IQ Gateway and microinverters on the load side, while the utility feed connects to the line side. This configuration allows for effective communication while protecting the system from electrical noise.

Noise Reduction Capability

By separating PLC domains, the filter minimizes the impact of electrical disturbances caused by site loads. This capability is essential for maintaining clear communication and maximizing the efficiency of the microinverter system.

Installation Flexibility

The design accommodates various configurations and can be mounted in an appropriate enclosure using standard mounting holes, making it adaptable to different installation environments.

Specifications
