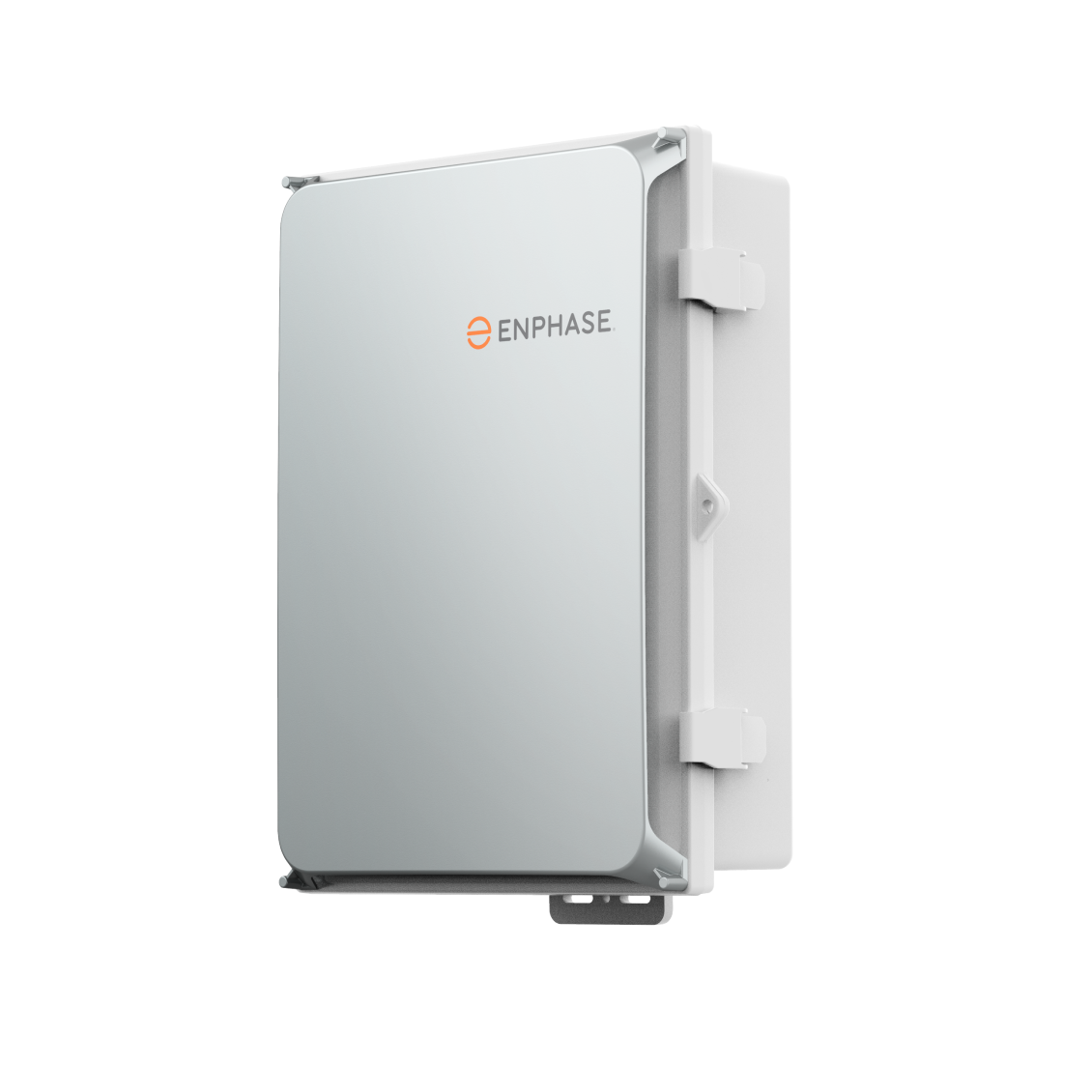

Enphase IQ Combiner 4C — Smart Combiner Panel with IQ Gateway
The Enphase IQ Combiner 4C consolidates Enphase microinverter AC outputs into a single, code-compliant enclosure with integrated IQ Gateway communication. Designed for residential solar installations, it houses up to 4 branch circuits of Enphase microinverters, includes pre-wired breakers, and provides a single AC connection point to the home's electrical panel. The built-in IQ Gateway enables real-time monitoring, over-the-air firmware updates, and smart energy management.
Key Benefits
- Integrated IQ Gateway — Built-in communication gateway for system monitoring and control — no separate device needed
- Pre-Wired Breaker Assembly — Factory-installed Enphase breaker(s) simplify and speed up installation
- Up to 4 Branch Circuits — Supports large residential arrays with multiple microinverter strings
- Single AC Connection — Clean, single-feed connection to the main service panel
- NEMA 3R Outdoor Rated — Weatherproof enclosure for outdoor wall mounting
- Production & Consumption Monitoring — Track both solar production and home energy usage in real time
- Over-the-Air Updates — Remote firmware upgrades keep the system current without site visits
- PV & Storage Ready — Compatible with IQ8 microinverters and IQ Battery systems
Specifications
| Specification | Detail |
|---|---|
| Model | X-IQ-AM1-240-4C |
| Branch Circuits | Up to 4 (configurable) |
| Maximum Current | 80A (busbar) |
| Voltage | 120/240V AC split-phase |
| Communication | IQ Gateway (Wi-Fi, Ethernet, or Cellular) |
| Breaker Capacity | Up to 4 × 20A Enphase breakers |
| Enclosure Rating | NEMA Type 3R |
| Dimensions | 16 × 16 × 6 in (approx.) |
| Compatibility | IQ8 Series & IQ7 Series Microinverters |
| Warranty | Standard Enphase warranty |
What's in the Box
- Enphase IQ Combiner 4C enclosure
- IQ Gateway (pre-installed)
- Enphase branch breakers (as configured)
- Installation guide
| SKU | ENP-IQCOMBINER4C |
|---|---|
| Manufacturer | Enphase |
