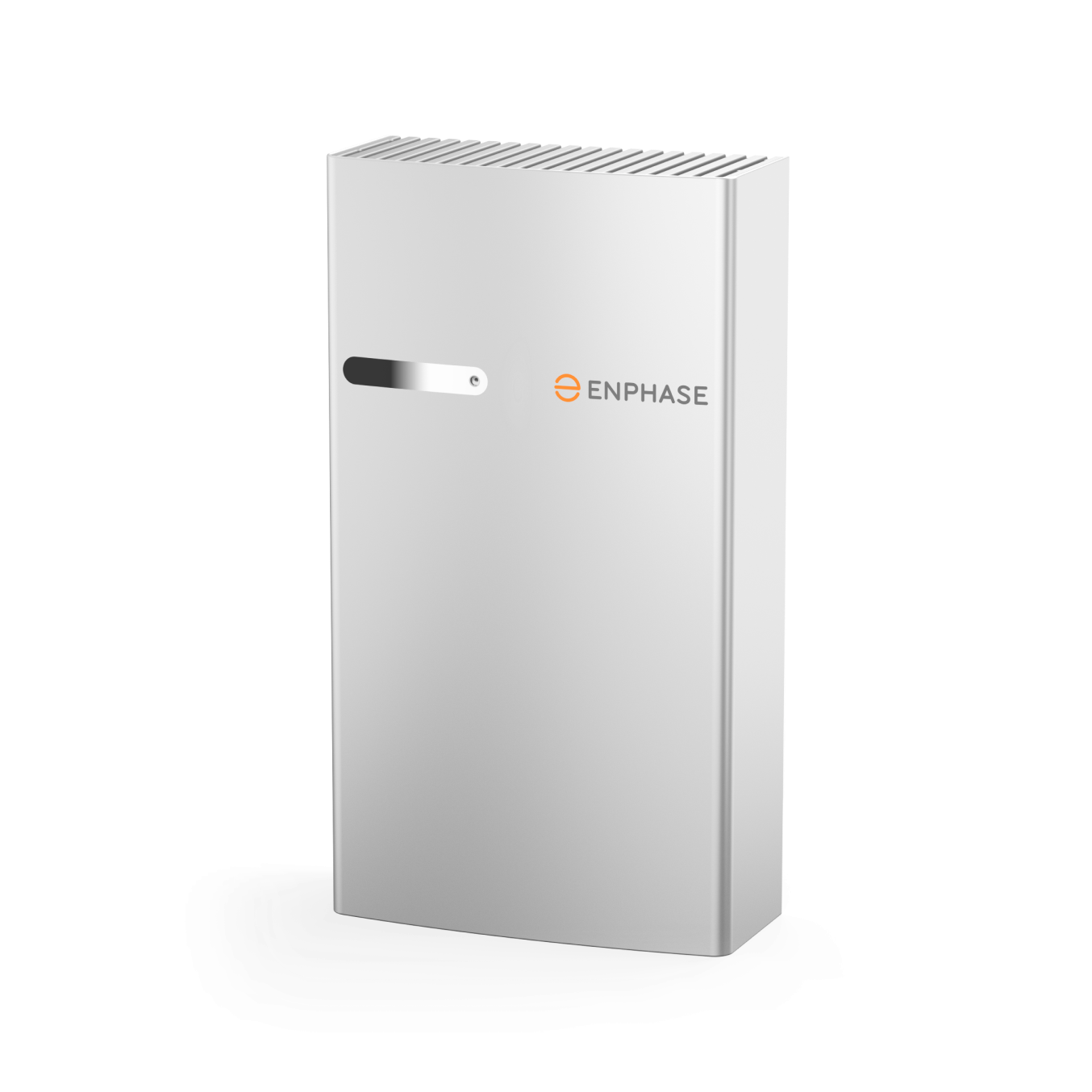

Enphase IQ Battery 3T — 3.36kWh AC-Coupled Battery Module | LFP
The Enphase IQ Battery 3T is a compact 3.36 kWh AC-coupled battery module built on safe lithium iron phosphate (LFP) chemistry. As the base building block of the Enphase storage ecosystem, it features four embedded grid-forming IQ8X-BAT microinverters with 1.28 kW continuous output. Stack multiple 3T units to scale capacity from 3.36 kWh up to 40.32 kWh, giving homeowners flexible, modular energy storage that grows with their needs.
Key Benefits
- 3.36 kWh Modular Capacity — Start small and expand — the 3T is the scalable foundation of the Enphase battery system
- 4 Embedded IQ8X-BAT Microinverters — Grid-forming microinverter architecture with per-module independence
- 1.28 kW Continuous Output — Powers essential loads and supports self-consumption optimization
- LFP Chemistry — Safe, long-lasting lithium iron phosphate with no thermal runaway
- Stackable System — Combine with IQ Battery 10C or additional 3T units for up to 40.32 kWh
- Passive Cooling — Silent, fanless operation with no moving parts
- NEMA 3R Rated — Outdoor-rated enclosure for flexible installation locations
- Enphase App Monitoring — Real-time monitoring of production, storage, and consumption
Specifications
| Specification | Detail |
|---|---|
| Usable Capacity | 3.36 kWh |
| Continuous Power | 1.28 kW |
| Peak Power | 1.92 kW (10 seconds) |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Round-Trip Efficiency | 96% |
| Microinverters | 4 × IQ8X-BAT (embedded) |
| Enclosure | NEMA Type 3R (Outdoor) |
| Dimensions | 14.4 × 26.14 × 12.56 in |
| Weight | 97.4 lbs (44.2 kg) |
| Operating Temperature | -15°C to 55°C (5°F to 131°F) |
| Warranty | 10 years / 4,000 cycles |
What's in the Box
- Enphase IQ Battery 3T base unit
- Wall-mounting bracket
- Installation quick guide
| SKU | ENP-IQBATT3T |
|---|---|
| Manufacturer | Enphase |
