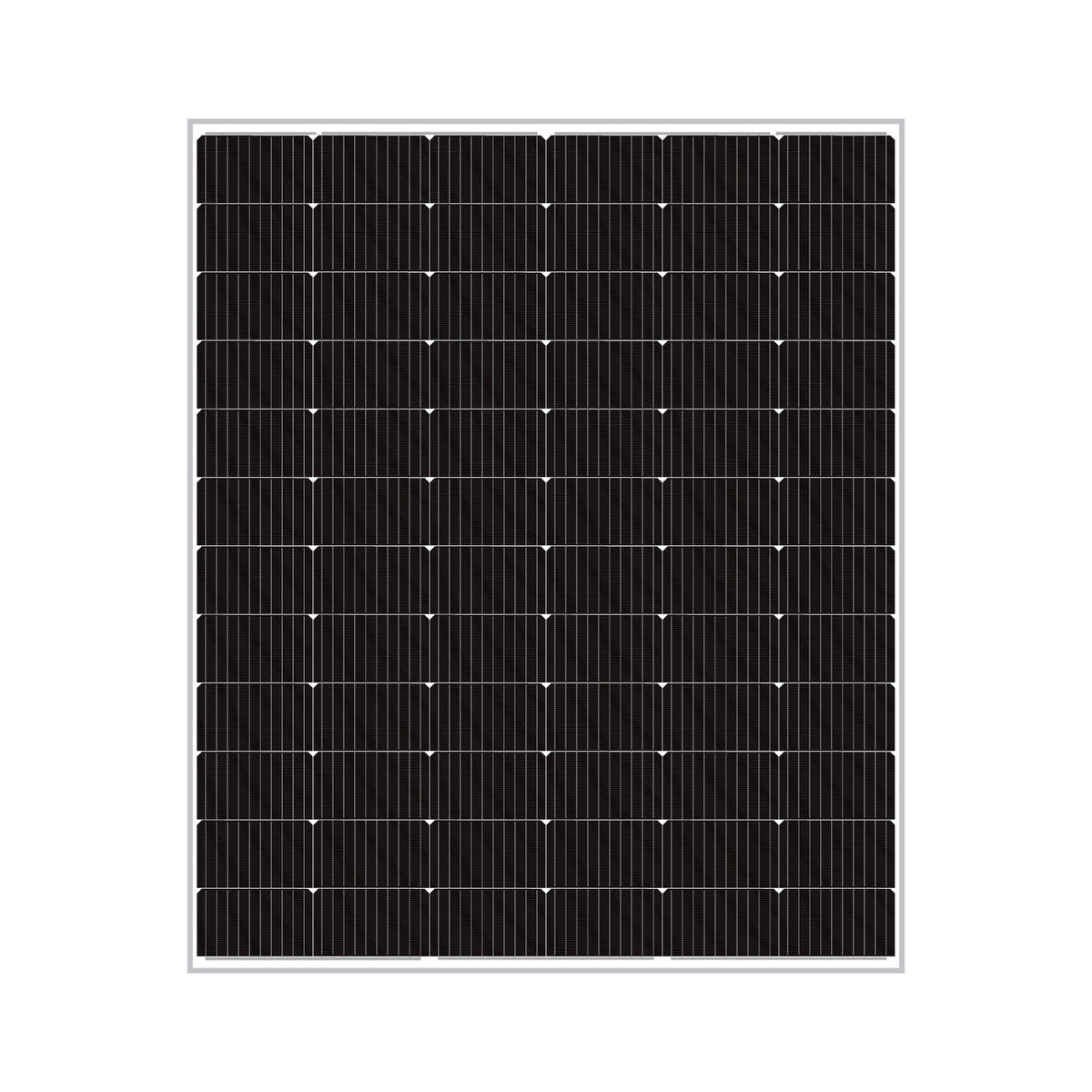

EGE EGE-495W-132M(GM10) 495W P-Type Bifacial Solar Panel
Model EGE-495W-132M(GM10) | P-Type Mono PERC | 132 Half-Cell | Bifacial | 1500V System Voltage
Product Overview
The EGE EGE-495W-132M(GM10) is a high-output bifacial solar panel designed for strong energy production and dependable long-term performance. It uses 182 mm monocrystalline cells and a 132 half-cell layout for efficient power capture. The double-glass structure supports durability in demanding conditions. Its positive power tolerance helps deliver reliable output in real-world installations. The module also features anti-PID and low-LID protection for improved performance retention. With a strong efficiency rating and a refined thermal profile, this panel suits commercial and utility-scale solar projects.
Key Benefits
High Power Output: This module delivers up to 495W under standard test conditions.
Strong Efficiency: The panel reaches 21.27% module efficiency for better space use.
Bifacial Design: The double-glass structure supports power generation from both sides.
Low Degradation Support: Anti-PID and low-LID protection help preserve output over time.
Heat Performance: A lower temperature coefficient supports steadier operation in hot climates.
Shading Tolerance: Half-cell architecture helps reduce hot spot and shading effects.
How It Works
This solar panel converts sunlight into electricity through monocrystalline cells arranged in a 132 half-cell layout. The half-cell design reduces internal resistance and improves current handling. That structure also helps limit power loss caused by partial shading. Because the module is bifacial, reflected light from the rear side can also contribute to output. The double-glass build improves mechanical strength and supports long service life. Together, these features create a panel that is built for stable daily production and dependable system integration.
Half-Cell Current Flow: The module splits the cell layout into smaller electrical sections. This reduces resistive losses and improves performance under load.
Bifacial Energy Capture: Rear-side light can be converted into extra power. This increases total yield when reflective surfaces are present.
Protection and Stability: Anti-PID and low-LID features help limit degradation. The result is more stable output across the module lifecycle.
Technical Specifications
| Model | EGE-495W-132M(GM10) |
| Cell Type | Monocrystalline 182 x 91 mm |
| Number of Cells | 132 (6 x 22) |
| Maximum Power Output | 495 W |
| Module Efficiency | 21.27% |
| Power Tolerance | 0~+5 W |
| Bifaciality Factor | 80% ± 10% |
| Maximum Power Voltage (Vmp) | 37.81 V |
| Maximum Power Current (Imp) | 13.86 A |
| Open Circuit Voltage (Voc) | 45.46 V |
| Short Circuit Current (Isc) | 12.97 A |
| Temperature Coefficients | Pmax: -0.35%/°C, Voc: -0.28%/°C, Isc: +0.048%/°C |
| Dimensions | 2094 x 1134 x 30 mm |
| Weight | 30.3 kg |
| Glass | 2.0 mm front and 2.0 mm rear tempered glass, AR coated |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68 rated with 3 bypass diodes |
| Cable | 4.0 mm², 300 mm (+) / 300 mm (-), customizable length |
| Connector | MC4, MC4-EVO2 compatible |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, IEC 62716, IEC 61701, IEC 60068-2-68, ISO 9001, ISO 14001, ISO 45001
Inverter Compatibility: MC4 and MC4-EVO2 compatible connections support common solar system designs
Environmental: Built with anti-PID protection, low-LID performance, and a durable double-glass structure
Warranty: 12-year product warranty and 30-year linear power warranty
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
