Eaton GD 240V Fusible Safety Switch with Neutral N3R – DG225NRK

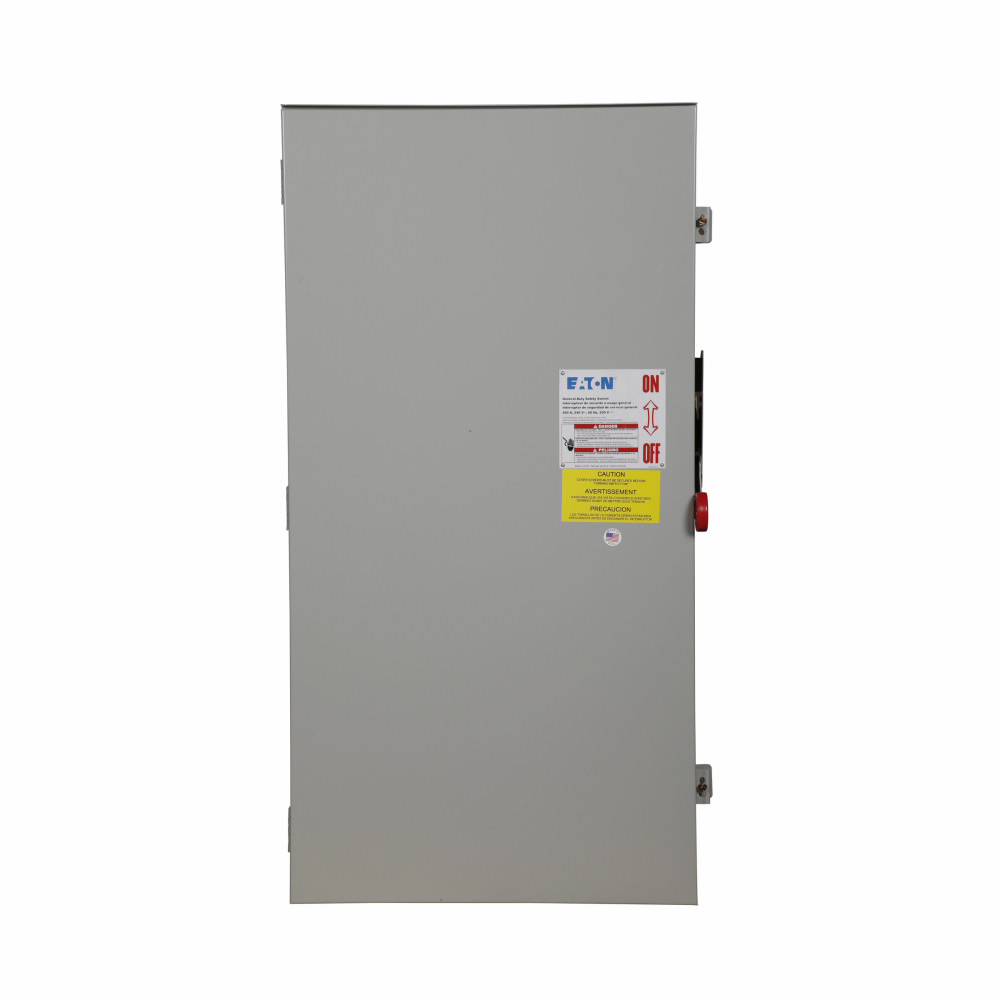

The Eaton DG225NRK is a 240V General Duty Fusible Safety Switch with a factory-installed neutral and NEMA 3R outdoor-rated enclosure. Built for reliability and safety, this switch provides dependable disconnect functionality for both residential and commercial power distribution systems.
Product Features
Heavy-Duty Design
Designed for long service life, the DG225NRK features a galvanised steel housing and a corrosion-resistant finish, suitable for indoor or outdoor installations.
Fusible with Neutral
Equipped with Class H fuse provisions and a factory-installed neutral, ensuring safe and compliant overcurrent protection for two-wire or three-wire systems.
NEMA 3R Enclosure
The NEMA 3R-rated painted galvanised steel enclosure offers protection from rain, sleet, and external ice formation, making it ideal for outdoor use.
Easy Installation & Maintenance
Front-operable and padlockable handle with visible blade indication enhances safety during maintenance and ensures OSHA lockout/tagout compliance.
Reliable Power Disconnect
Provides a visible open circuit path for safe and quick disconnection during service, inspection, or system shutdown.
Applications
- Commercial and residential load disconnects
- Solar combiner or battery isolation points
- HVAC and motor control systems
- Industrial and agricultural power management
Specifications
| Model | DG225NRK |
| Type | General Duty Fusible Safety Switch |
| Voltage Rating | 240V AC |
| Amperage | 400A |
| Poles | 2-Pole, 3-Wire |
| Enclosure Type | NEMA 3R – Outdoor Rated |
| Fuse Type | Class H (Fusible) |
| Neutral | Included (Factory Installed) |
| Material | Painted Galvanised Steel |
| Mounting | Wall Mounted |
| Handle | Padlockable, Visible Blade Operation |
| Certifications | UL Listed, CSA Certified |
| Manufacturer | Eaton / Cutler-Hammer Division |
| Warranty | 1 Year (Manufacturer Limited) |
Technical specifications verified from the official Eaton DG225NRK Datasheet.
