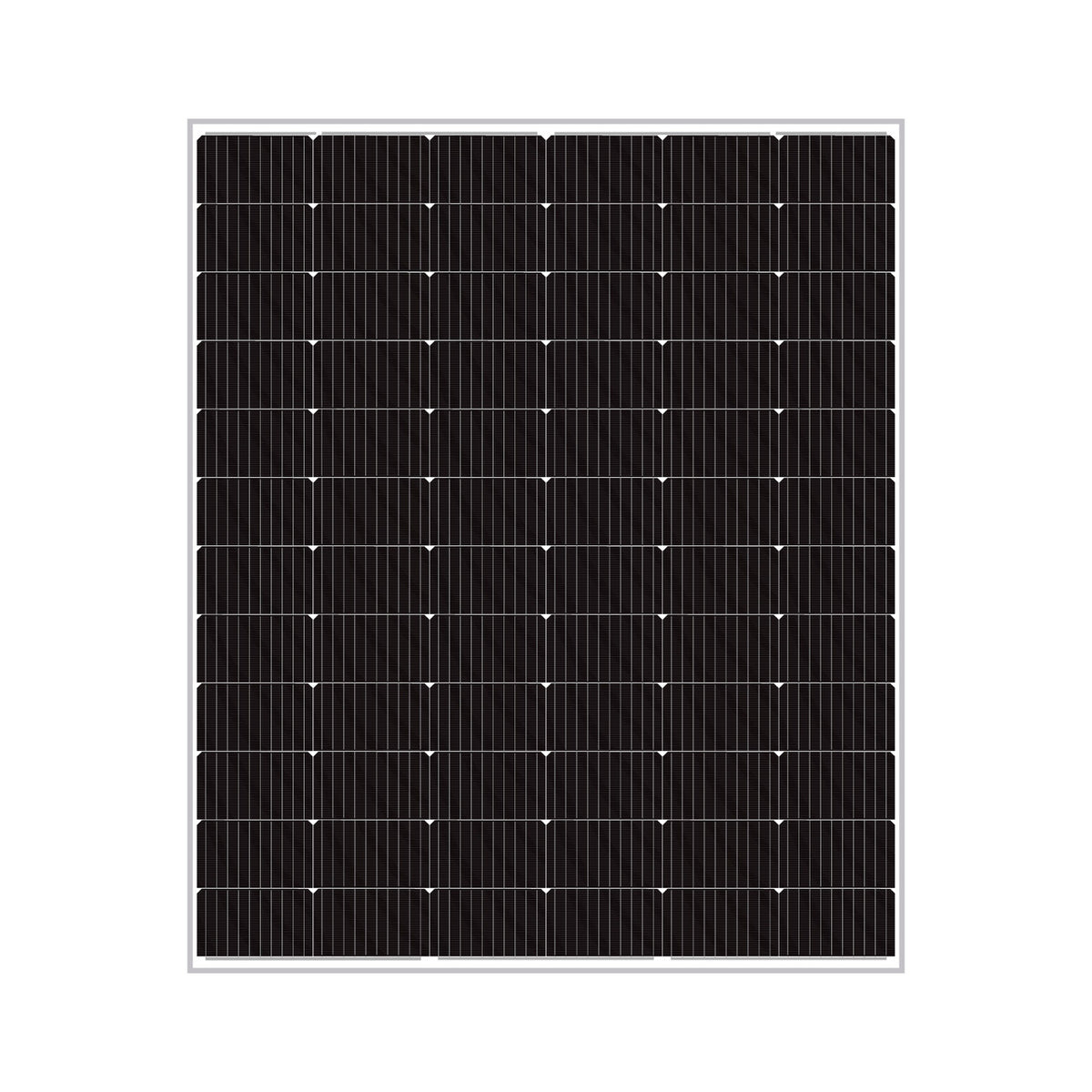

Jetion Solar JT720SLt(B) 720W N-Type TOPCon Bifacial Dual-Glass Solar Panel
JT720SLt(B) | N-Type TOPCon | 132 Cells | Bifacial | 1500V System Voltage
Product Overview
The Cloud Network Blue Material JT720SLt(B) 720W N-Type TOPCon Bifacial Dual-Glass Solar Panel delivers industry-leading power for modern energy systems. This advanced dual-glass monocrystalline module features 132 cells with cutting-edge MBB and bifacial TOPCon technology. It achieves a maximum efficiency of 23.18%, ensuring superior energy harvest even in low-light conditions. The panel is engineered to withstand extreme environments with a 1500V DC maximum system voltage. Built by Jetion Solar, a Fortune 500 company member, it offers unmatched reliability and cost-effectiveness. Its high bifaciality of 80% provides an additional 25% yield compared to traditional PERC modules. This solution is ideal for large-scale commercial and industrial solar installations requiring maximum output per square meter.
Key Benefits
Leading TOPCon Technology: MBB N-type TOPCon cells deliver a maximum power output of 720W with superior performance.
Better Anti-LID & LETID: The module resists light-induced degradation for stable long-term power generation.
Highly Reliable Durability: Stringent quality control and 100% EL double inspection ensure defect-free operation.
Excellent PID Resistance: Superior resistance to potential induced degradation protects system efficiency over time.
High Bifaciality Yield: An 80% bifacial rate generates 25% more energy than standard PERC panels.
How It Works
This dual-glass solar panel converts sunlight into electricity using advanced N-type TOPCon technology. The 132 monocrystalline cells absorb photons from both the front and rear surfaces due to its bifacial design. This dual-sided absorption captures reflected light from the ground or surrounding surfaces. The MBB (Multi-Busbar) technology reduces internal resistance and improves current flow efficiency. The high-efficiency cell structure minimizes energy loss even under high temperatures. This results in a lower Levelized Cost of Energy (LCOE) for the entire installation lifecycle. The robust dual-glass construction protects the internal components from moisture and physical damage.
Dual-Sided Light Absorption: The bifacial cells capture direct sunlight on the front and reflected light on the rear. This design increases total energy yield by up to 25% compared to traditional panels.
Advanced TOPCon Cell Structure: Tunnel Oxide Passivated Contact technology reduces electron recombination at the cell surface. This leads to higher voltage and current output under standard test conditions.
Robust Dual-Glass Protection: Two layers of tempered glass shield the cells from harsh environmental stress. This construction ensures stability against extreme wind, snow, and hail loads.
Technical Specifications
| Maximum Power (Pmax) | 720W |
| Module Efficiency | 23.18% |
| Cell Type | N-Type TOPCon Monocrystalline |
| Number of Cells | 132 Cells |
| Maximum Power Voltage (Vmp) | 40.84V |
| Maximum Power Current (Imp) | 17.63A |
| Open Circuit Voltage (Voc) | 48.58V |
| Short Circuit Current (Isc) | 18.55A |
| Maximum System Voltage | 1500V DC (IEC) |
| Operating Temperature Range | -40°C to +85°C |
| Wind Load Resistance | 2400 Pa |
| Snow Load Resistance | 5400 Pa |
| Hail Resistance | 25mm at 82 km/h |
| Bifaciality Rate | 80% |
| Module Dimensions | 2384 x 1303 x 33 mm |
| Weight | 36.4 kg |
| Front Cover | 2.0mm AR Coated Tempered Glass |
| Back Cover | 2.0mm Tempered White Grid Glass |
| Frame Material | Silver Anodized Aluminium Alloy |
| J-Box Rating | IP68 |
| Cable Size | 4.0 mm² Solar Cable |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, IEC 62941
Inverter Compatibility: Compatible with all standard grid-tie inverters supporting 1500V DC systems
Environmental: ISO 14001 Environment Management System, ISO 45001 Occupational Health and Safety
Warranty: 12-Year Product Warranty, 30-Year Linear Performance Warranty (Jetion Solar Additional Value)
